Description

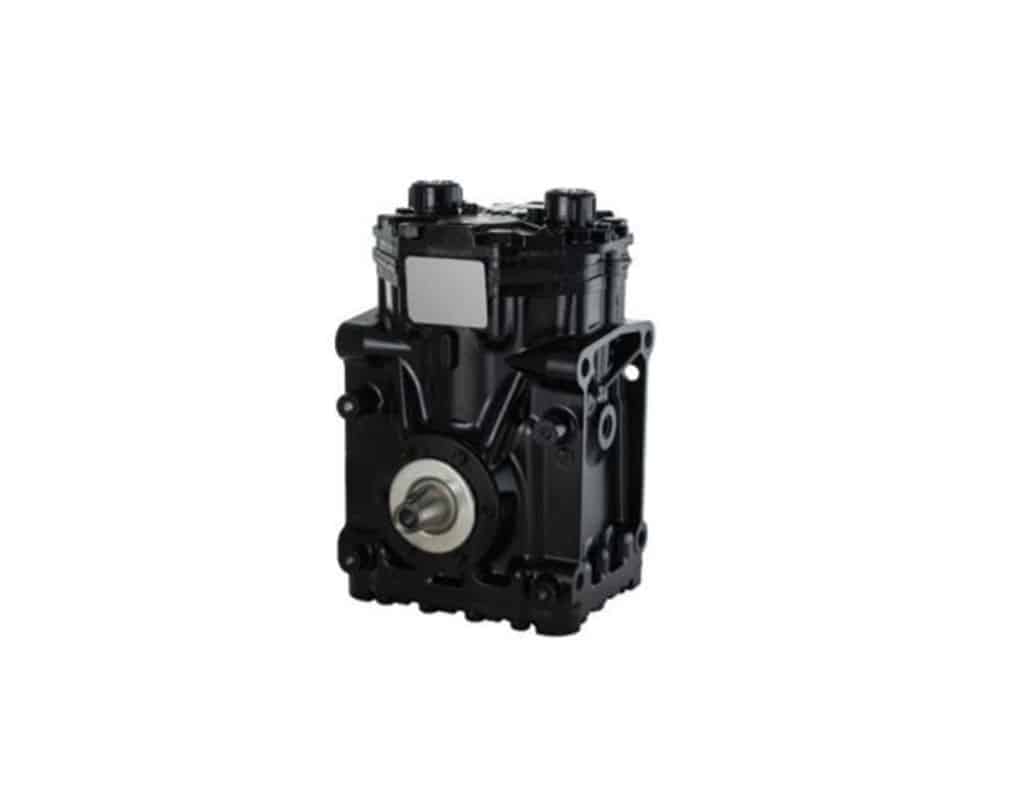

Alliance Freightliner Two-Cylinder AC Compressor A2, 6", 1W, 12V
ABP N83 304111T Two-Cylinder Truck AC Compressor
- Brand: Alliance
- Compressor Type: Two-Cylinder
- Popular Applications: Freightliner
Features & Benefits:
- Three-Phase Lubrication System For A More Efficient Product
- Large Oil Sump Allows The Compressor To Be Self-Lubricating Regardless Of The Amount Of Oil Mixed With Refrigerant
- Large Front And Rear Bearings To Support A Cast Iron Shaft
- High Load Capacity Ball Bearings
- High Strength Aluminum Alloy Pistons And Connecting Rods
- Internal Case Iron Cylinder Liners For Added Durability
- Stainless Steel Reed Valves Prevent Rust Formation And Reed Failure And Reduce Effects Of Liquid Slugging
- Universal Mounting Allows Installation And Operation In Any Position From Horizontal Left To Horizontal Right With No Field Adjustments Necessary
- Universal Rotation
- One Oil Plug Permits Easy Checking Of Crankcase Oil Level Regardless Of Mounting Position
Specs:
- Short Description: COMP-AC, A2, 6 IN, 1W, 12V, WITH VALVES
Specifications |
206 |
209 |
2010 |
|||
| Number Of Cylinders | 2 | 2 | 2 | |||
| Bore | 1.875 In (47.63 mm) | 1.875 In (47.63 mm) | 1.875 In (47.63 mm) | |||
| Stroke | 1.105 In (28.07 mm) | 1.573 In (39.95 mm) | 1.866 In (47.40 mm) | |||
| Displacement | 6.10 CU In/Rev (100 CC/Rev) | 8.69 CU In/Rev (142 CC/Rev) | 10.3 CU In/Rev (169 CC/Rev) | |||
| Maximum RPM | 6000 RPM | 6000 RPM | 6000 RPM | |||
| Refrigerant | R-12, 22, 502, 134a & New Blends | R-12, 22, 502, 134a & New Blends |
R-12, 22, 502, 134a & New Blends |
|||
| Initial Oil Charge | 10 FL OZ (296 ml) | 10 FL OZ (296 ml) | 10 FL OZ (296 ml) | |||
| Weight | 13.0 LBS (5.9 kg) | 14.6 LBS (6.6 kg) | 14.6 LBS (6.6 kg) | |||
| Lubrication | ***Splash And Positive Pressure And Oil Return Through Suction Side | Same | Same |
Part # ABP N83 304111T
