Alliance Freightliner Two-Cylinder AC Compressor | ABP N83 2040 10349

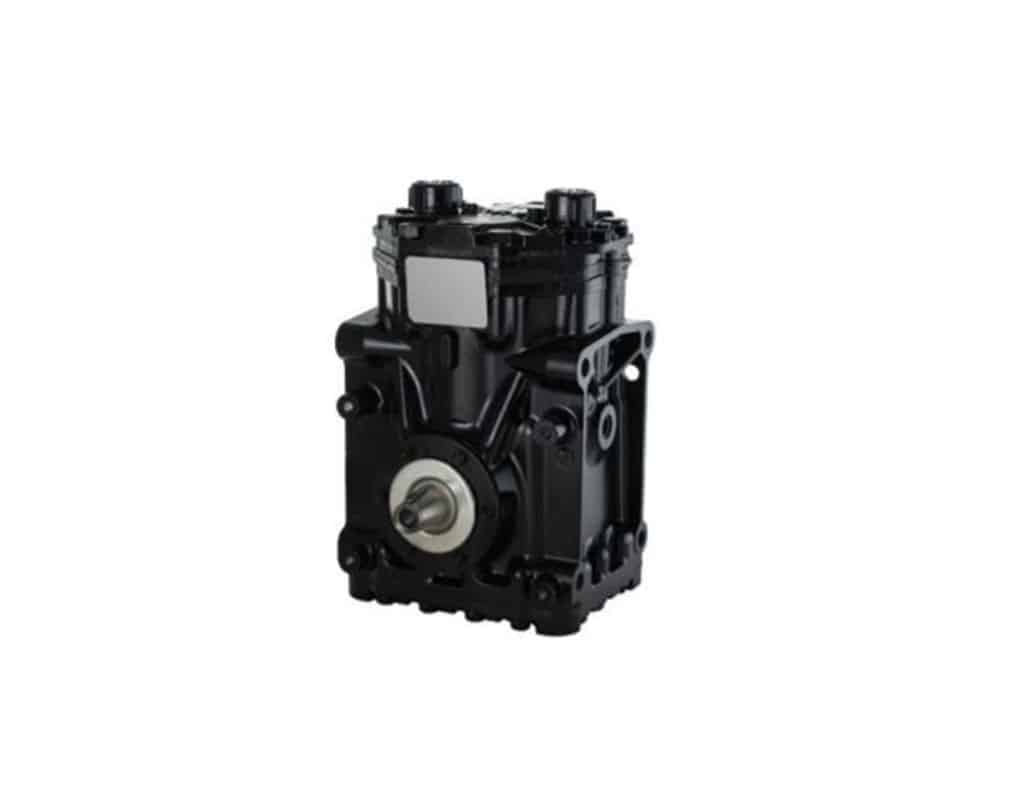

Alliance Freightliner Two-Cylinder AC Compressor – Slimline Head
Part #: ABP N83 2040 10349

This two-cylinder AC compressor from Alliance is designed for long-lasting performance and easy installation on Freightliner trucks. Featuring a slimline head and no clutch, it's ideal for reliable, efficient cooling.

Brand: Alliance
Compressor Type: Two-Cylinder
Popular Applications: Freightliner

Features & Benefits:

• Three-phase lubrication system for enhanced efficiency

• Oversized oil sump ensures self-lubrication regardless of oil-refrigerant mix

• Durable front and rear bearings support a cast iron shaft

• High-capacity ball bearings for smoother operation

• Strong aluminum alloy pistons and connecting rods

• Internal cast iron cylinder liners for longer service life

• Stainless steel reed valves resist rust and minimize risk of reed failure

• Universal mounting: install in any horizontal position without modifications

• Universal rotation

• Single oil plug for easy crankcase oil level checks

Specs:

• Short Description: COMP-AC, Slimline Head, No Clutch

• Number of Cylinders: 2

• Bore: 1.875 in (47.63 mm)

• Stroke Options: 1.105 in, 1.573 in, 1.866 in

• Displacement Options: 6.10, 8.69, or 10.3 CU in/Rev

• Max RPM: 6000

• Refrigerants Supported: R-12, R-22, R-502, R-134a, and new blends

• Initial Oil Charge: 10 fl oz (296 ml)

• Weight: 13.0 – 14.6 lbs

• Lubrication: Splash & positive pressure with suction-side oil return
