Description

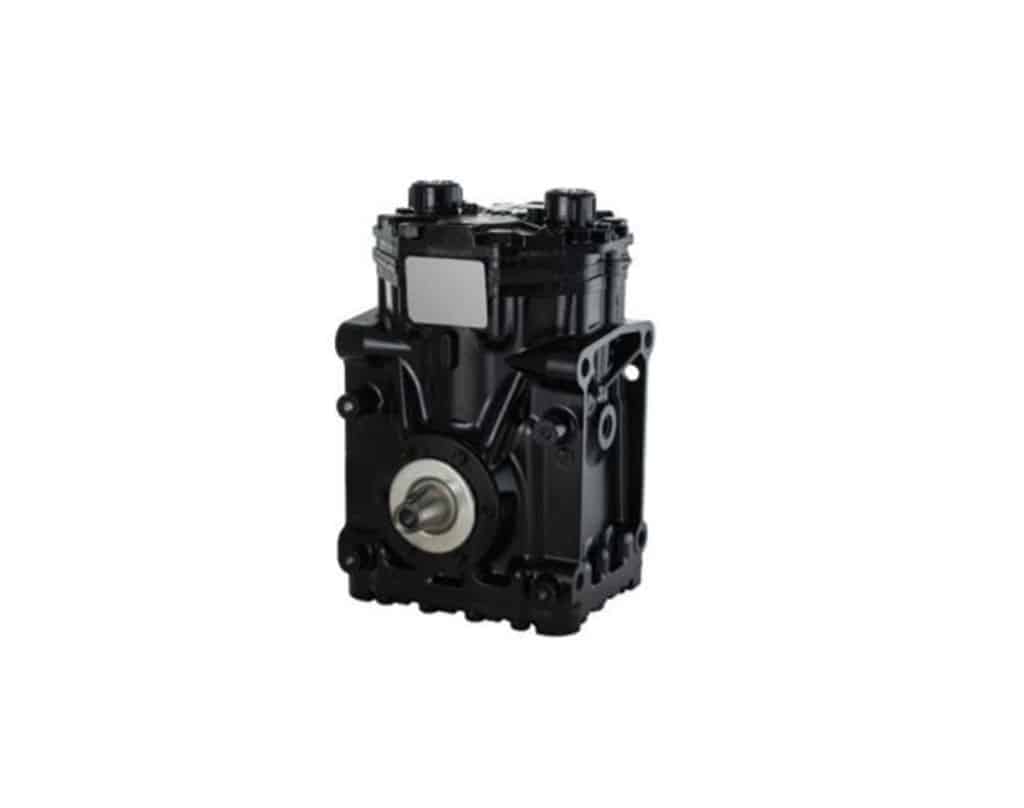

Alliance Freightliner Two-Cylinder AC Compressor PV6, 6", 2W, Far Forward
Part #: ABP N83 2040 21030
Heavy-duty AC compressor built for Freightliner applications. Designed for efficiency, durability, and easy installation.
Brand: Alliance
Compressor Type: Two-Cylinder
Popular Applications: Freightliner
Features & Benefits:
-
Three-phase lubrication system improves overall efficiency
-
Large oil sump allows self-lubrication regardless of refrigerant mix
-
Cast iron shaft supported by large front and rear bearings
-
High-load capacity ball bearings
-
Aluminum alloy pistons and connecting rods for strength
-
Cast iron cylinder liners for extra durability
-
Stainless steel reed valves resist rust and help prevent failure
-
Universal mounting—horizontal left or right with no adjustments
-
Universal rotation
-
Single oil plug allows oil level checks in any mounting position
Specs:
-
Short Description: COMP-AC, PV6, 6 IN, FAR FORWARD, 2W, 12V
-
Number of Cylinders: 2
-
Bore: 1.875 in (47.63 mm)
-
Stroke Options: 1.105 in, 1.573 in, 1.866 in
-
Displacement Options: 6.10 CU in (100 CC), 8.69 CU in (142 CC), 10.3 CU in (169 CC)
-
Max RPM: 6000
-
Refrigerants: R-12, R-22, R-502, R-134a, and new blends
-
Initial Oil Charge: 10 fl oz (296 ml)
-
Weight: 13.0–14.6 lbs (5.9–6.6 kg)
-
Lubrication: Splash and positive pressure with oil return through suction side
