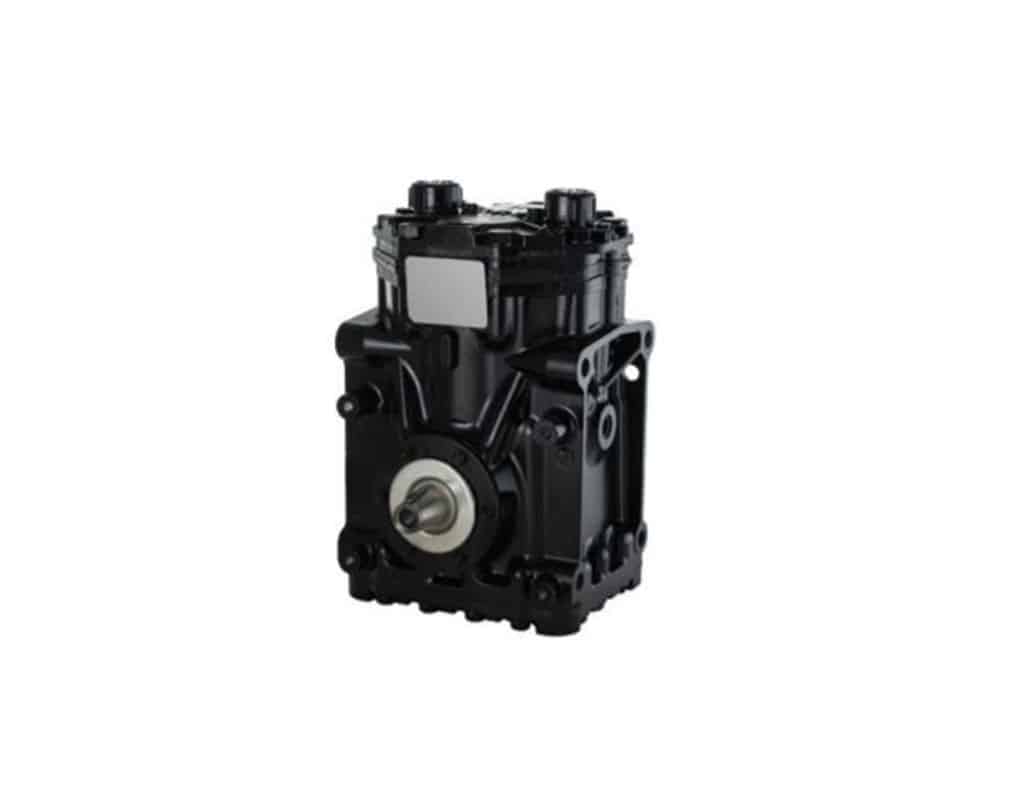

Alliance Freightliner Two-Cylinder AC Compressor – PV6, 6", Far Forward, 12V
Part #: ABP N83 2040 21008

Reliable two-cylinder AC compressor built for Freightliner trucks, offering durable performance and universal mounting flexibility.

Brand: Alliance
Compressor Type: Two-Cylinder
Popular Applications: Freightliner

Features & Benefits:

• Three-phase lubrication system for improved efficiency

• Self-lubricating design with large oil sump

• Cast iron shaft supported by large front and rear bearings

• High-strength aluminum alloy pistons and connecting rods

• Internal cast iron cylinder liners for added longevity

• Stainless steel reed valves reduce rust and liquid slugging

• Universal rotation and mounting—no field adjustments needed

• Convenient oil plug for checking levels in any position

Technical Specs:

• Short Description: COMP-AC, PV6, 6 IN FAR FORWARD, 2W, 12V

• Number of Cylinders: 2

• Bore: 1.875 in (47.63 mm)

• Stroke Options: 1.105 in, 1.573 in, 1.866 in

• Displacement Options: 6.10 CU in (100 CC), 8.69 CU in (142 CC), 10.3 CU in (169 CC)

• Max RPM: 6000

• Refrigerants: R-12, R-22, R-502, R-134a, and new blends

• Initial Oil Charge: 10 fl oz (296 ml)

• Weight: 13.0–14.6 lbs (5.9–6.6 kg)

• Lubrication: Splash and positive pressure, with suction-side oil return
