Description

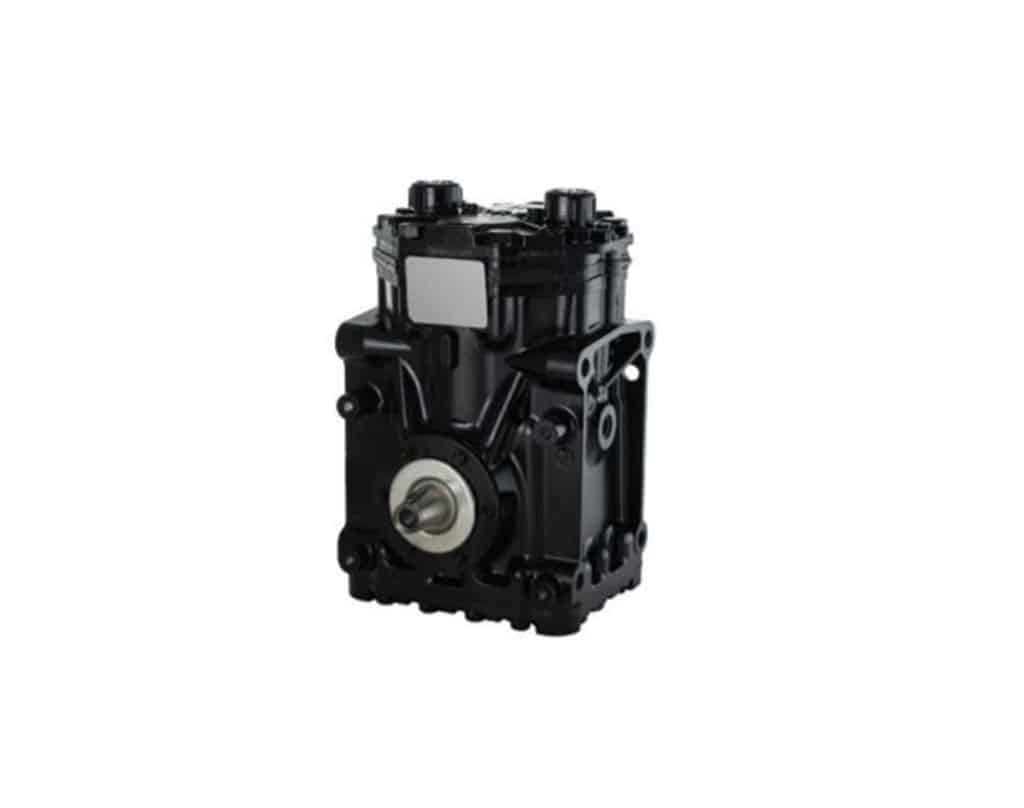

Alliance Freightliner Two-Cylinder AC Compressor – PV6, 6", Far Forward, 1W, 12V
Part #: ABP N83 2040 21029
Durable and efficient AC compressor designed to meet the demands of Freightliner applications with universal mounting and easy maintenance.
Brand: Alliance
Compressor Type: Two-Cylinder
Popular Applications: Freightliner
Features & Benefits:
-
Three-phase lubrication system for optimal performance
-
Self-lubricating with a large oil sump
-
Sturdy cast iron shaft with large front and rear bearings
-
High-strength aluminum alloy pistons and connecting rods
-
Internal cast iron cylinder liners extend compressor life
-
Stainless steel reed valves reduce rust and prevent failure
-
Universal mounting and rotation—no field adjustment required
-
Oil plug makes oil level checks easy in any position
Specs:
-
Short Description: COMP-AC, PV6, 6 IN FAR FORWARD, 1W, 12V
-
Cylinders: 2
-
Bore: 1.875 in (47.63 mm)
-
Stroke Options: 1.105 in, 1.573 in, 1.866 in
-
Displacement Options: 6.10 CU in, 8.69 CU in, 10.3 CU in
-
Max RPM: 6000
-
Refrigerants: R-12, R-22, R-502, R-134a, and compatible blends
-
Oil Charge: 10 fl oz (296 ml)
-
Weight: 13.0–14.6 lbs
-
Lubrication: Splash and positive pressure with suction-side return
