Description

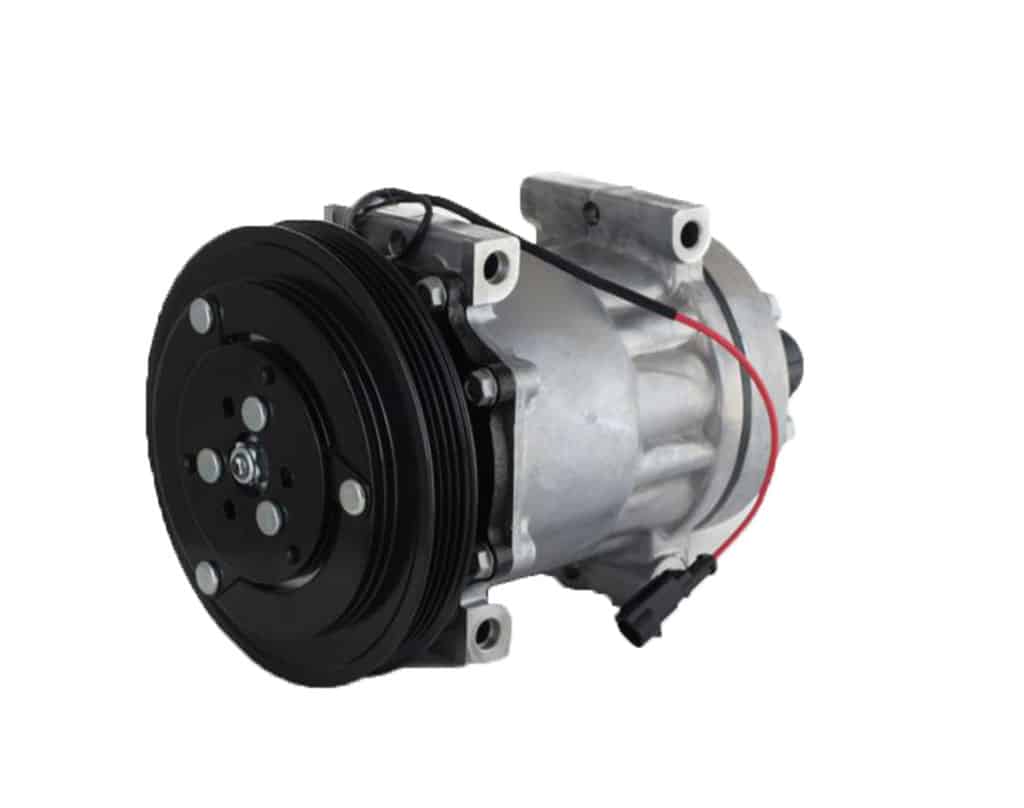

Alliance Kenworth & Peterbilt Wobble Plate AC Compressor
Part # ABP N83 2025 04042
Superseded from: ABP N83 304QP7H154432
This heavy-duty wobble plate AC compressor is designed for use in Kenworth and Peterbilt trucks. Built with durability in mind, this compressor features a long-lasting design to meet the demands of the road.

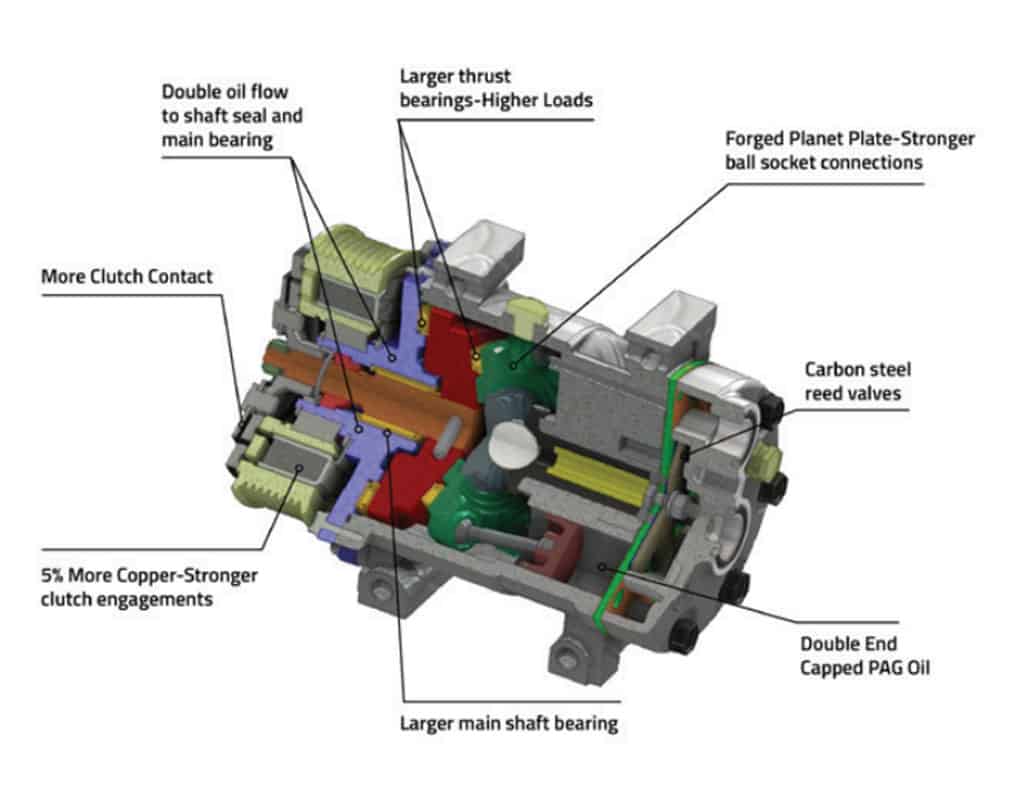

Key Features:
-
Fits: Kenworth & Peterbilt trucks
-
Wobble Plate compressor design
-
Carbon steel reed valves
-
Advanced clutch with increased contact area for higher torque
-
Clutch lasts 2x longer than competitor models
-
Robust ball and socket connection
-
Improved seal life with extended shaft bearing
-
Designed for high performance at low oil circulation rates
Specifications:
-
Compressor Type: Wobble Plate
-
Displacement: 155 cc
-
Number of Cylinders: 7
-
Max RPM: 7000
-
Voltage: 12/24 VDC
-
Power: 49W
-
Oil Type: PAG
-
Oil Amount: 150 cc
-
Refrigerant: R-134a
-
Mount Type: Ear- and Direct-Mount
-
Short Description: COMP-AC, 7H DM 119MM PV8 12V PAD GQ
-
Weight: 7.2 kg
-
Options: Wide variety of clutches and cylinder heads
