Description

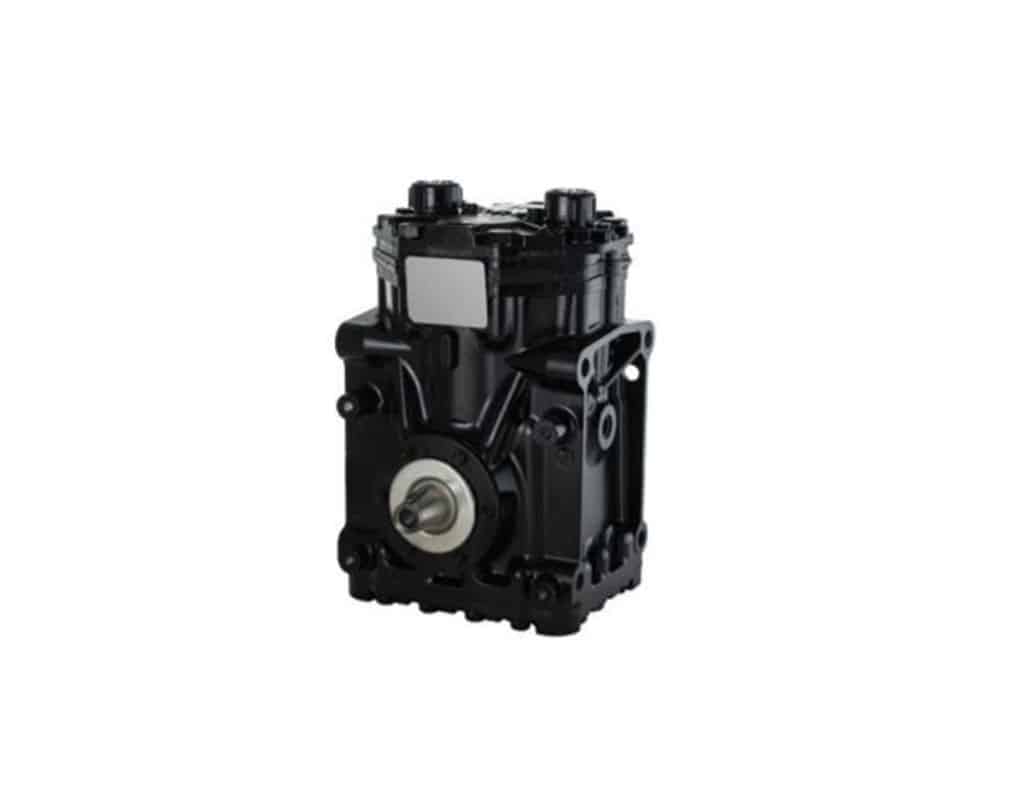

Alliance Freightliner Two-Cylinder AC Compressor A2, 6", 2W, Rear, 12V
Part #: ABP N83 2040 21028
Two-cylinder AC compressor designed for durability and performance in Freightliner and Western Star applications.
Brand: Alliance
Compressor Type: Two-Cylinder
Popular Applications: Western Star
Features & Benefits:
-
Three-phase lubrication system improves efficiency
-
Large oil sump allows self-lubrication regardless of refrigerant mix
-
Cast iron shaft supported by large front and rear bearings
-
High-load capacity ball bearings
-
High-strength aluminum alloy pistons and connecting rods
-
Internal cast iron cylinder liners increase durability
-
Stainless steel reed valves prevent rust and reduce liquid slugging effects
-
Universal mounting—can be installed in any horizontal position
-
Universal rotation
-
Single oil plug for easy crankcase oil level checks regardless of mounting
Specs:
-
Short Description: COMP-AC, A2, 6 IN, 2W, 12V, REAR FITTING
-
Number of Cylinders: 2
-
Bore: 1.875 in (47.63 mm)
-
Stroke Options: 1.105 in (28.07 mm), 1.573 in (39.95 mm), 1.866 in (47.40 mm)
-
Displacement Options: 6.10 CU in/rev (100 CC), 8.69 CU in/rev (142 CC), 10.3 CU in/rev (169 CC)
-
Max RPM: 6000 RPM
-
Refrigerants: R-12, R-22, R-502, R-134a, and new blends
-
Initial Oil Charge: 10 fl oz (296 ml)
-
Weight: 13.0–14.6 lbs (5.9–6.6 kg)
-
Lubrication: Splash, positive pressure, and oil return via suction side
