Description

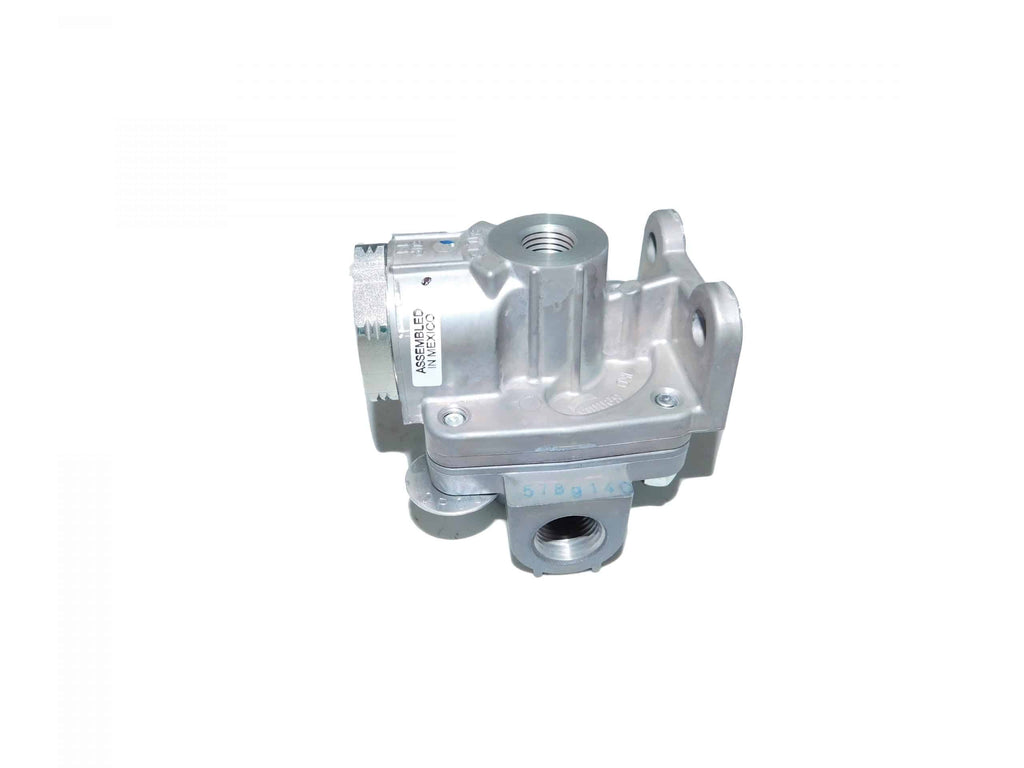

Bendix E6 Dual Circuit Foot Brake Air Valve
286171N, BW 286171N, BW286171N Truck Brake Air Valve
- Brand: Bendix
Specifications:
- Treadle and Mounting Plate Not Furnished
- Truck Brake Valve, Truck Brake Valves
| Delivery Port Diameter | 3/8-18 in. NPT |
| Differential Pressure | 3 PS |
| Exhaust Port Diameter | Dust Shield |
| Maximum Operating Temperature | 200 °F (93 °C) |
| Minimum Operating Temperature | -40 °F (-40 °C) |
| Mounting Hole Diameter | 5/16-18 in. UNC-3B |
| Mounting Hole Quantity | 3 |
| New Or Remanufactured | New |
| Notes | Valve Only; FMVSS 121 Compliant |
| Port Configuration | Axial / Perpendicular |
| Series | E-6® |
| Supply Port Diameter | 3/8-18 in. NPT |
Additional Information:
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8481200070 |
| UPC | 07894294730414 |
| VMRS Code | 013010051 |
Part # BW 286171N
