Description

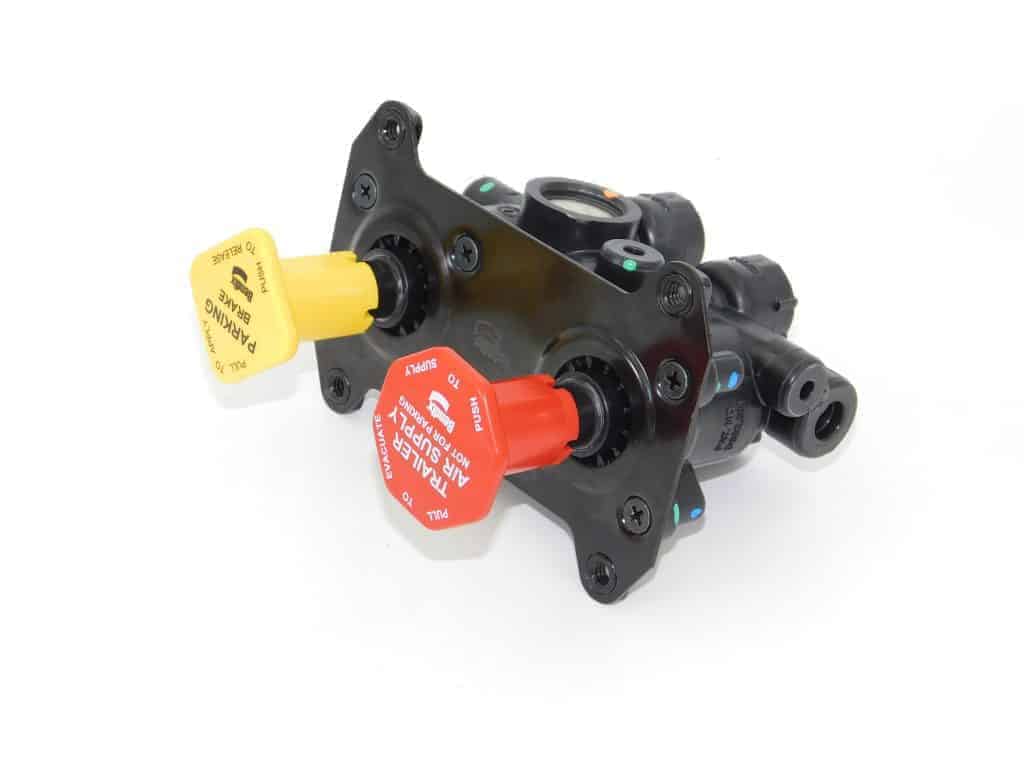

Bendix Parking Brake Air Valve Dashboard Assembly
BW 800519 Truck Brake Valve Dash Assembly
- Brand: Bendix
Specifications:
Dimension
- Length: 128.52 mm
- Width: 136.22 mm
- Height: 91.95 mm
- Port Thread Size: 1/4 NPT in
- Hole Spacing Distance: 4.21 X 3.00 in
- Exhaust Port Thread Size: 1/4-18 NPT in
- Mounting Thread Size: 1/4-20 UNC-2B in
- Delivery 21 Port Thread Size: 1/4-18 NPT in
- Delivery 22 Port Thread Size: 1/4-18 NPT in
- Supply 11 Port Thread Size: 1/4-18 NPT in
- Supply 12 Port Thread Size: 1/4-18 NPT in
- VMRS Code: 013-010-050
Performance
- Tractor Trip Pressure: 20 to 40 psi
- Trailer Trip Pressure: 25 to 45 psi
- Trailer Override Pressure: 20 to 30 psi
Weight
- Weight: 0.71 kg
Temperature
- Minimum Operating Temperature: -40 Deg. F
- Maximum Operating Temperature: 200 Deg. F
Part # BW 800519
