Bendix R-12 Relay Valve w/ Bracket | # BW 103009N

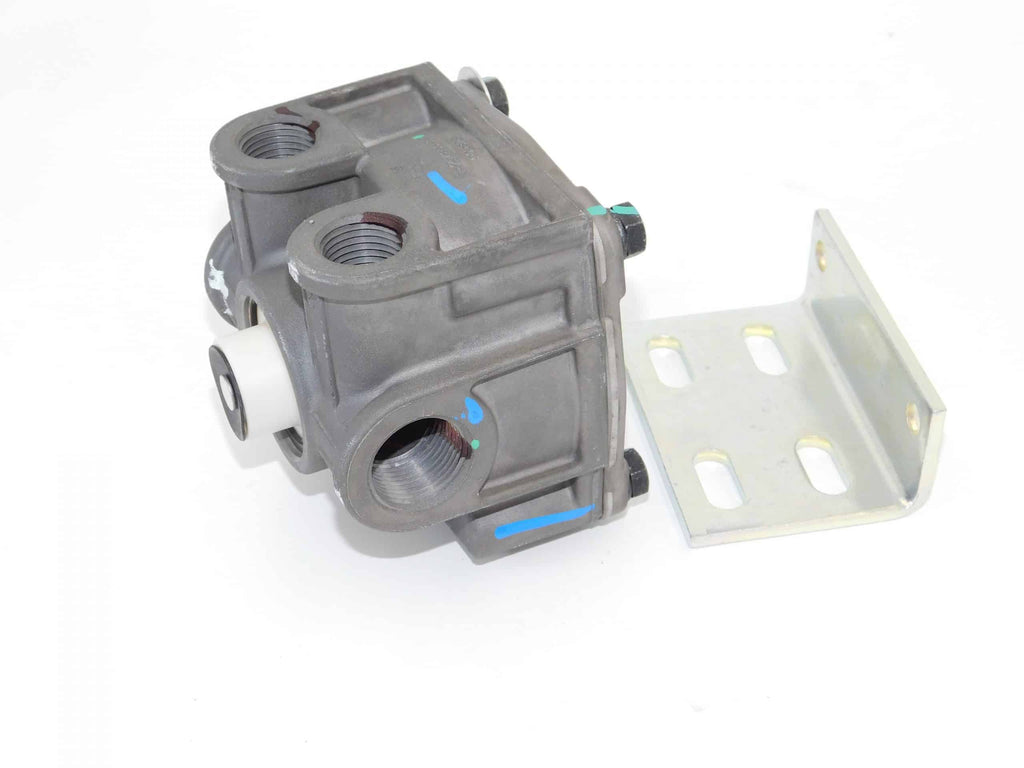

Bendix R-12 Relay Valve With Bracket

BW 103009N Truck R-12 Relay Valve w/ Bracket

• Brand: Bendix

Specifications:

• Gross Weight: 1.261 Kilograms
• Net Weight: 1.261 Kilograms
• Length: 102.0 Millimeters
• Width: 102.0 Millimeters
• Height: 100.0 Millimeters
• VMRS Code: 013-010-009
• Mounting: .96 in x .40 in Slot (x4)
• Mounting Bracket Location: Loose in Box
• Body Configuration: 2 SUP / 2 DEL (H)
• Supply Port 1: 3/4 - 14 NPT
• Supply Port 2: 3/4 - 14 NPT
• Control / Secondary Service Port: 1/4 - 18 NPT
• Delivery Port 1: 1/2 - 14 NPT
• Delivery Port 2: 1/2 - 14 NPT
• Exhaust Port: Dust Shield
• Crack Pressure 4.0 PSI
• TMC Washer: RV040
• Maximum Operating Temp: 200 °F (93 °C)
• Minimum Operating Temp: -40 °F (-40 °C)
