Description

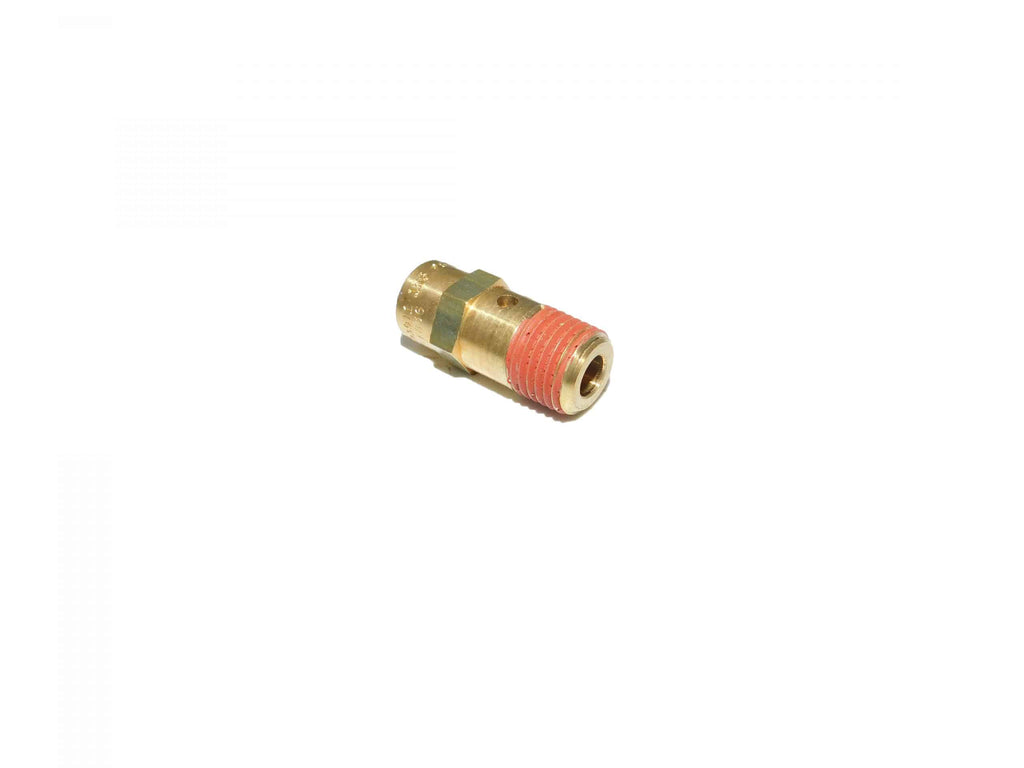

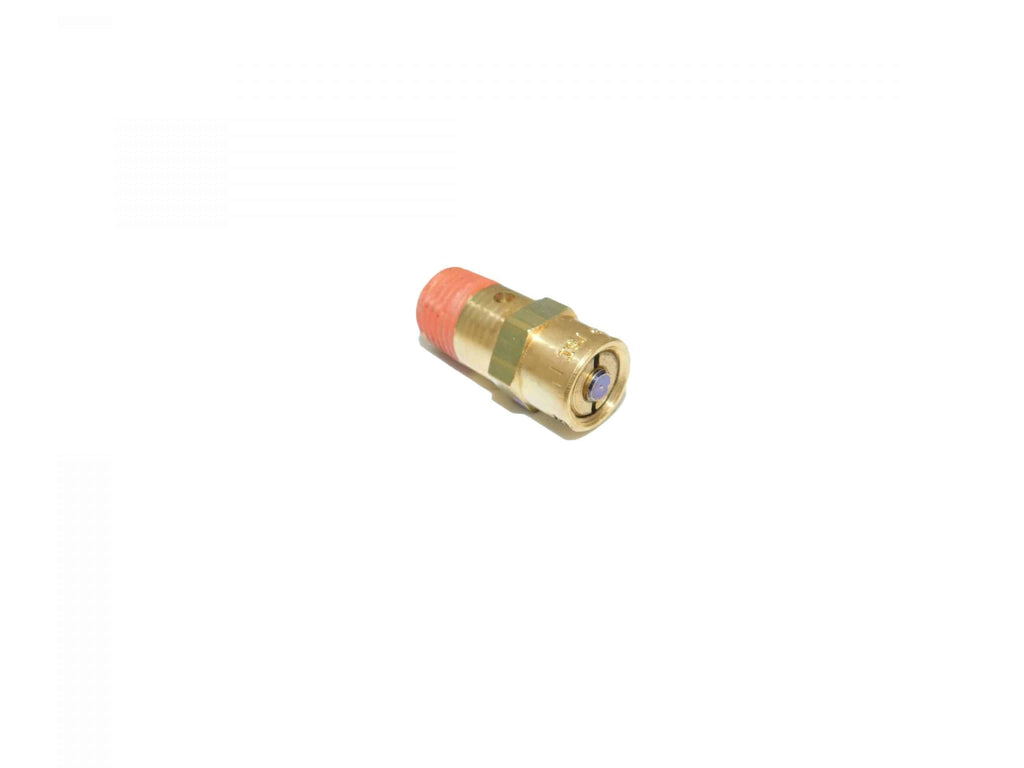

Bendix ST-4 Safety Valve
BW 800350 Truck ST-4 Safety Valve
- Brand: Bendix
Specifications:
Product Attribute
- Adjustable: No
- Number Of Vents: 1
- Thread Sealant: Pre-Applied
Dimension
- Length: 34.29 mm
- Width: 14.29 mm
- Height: 14.29 mm
- Hex Size: 9/16 in
- Inlet Port Thread Size: 1/4-18 NPT in
- Vent Hole Diameter: 0.13 in
Temperature
- Minimum Operating Temperature: -40 Deg. F
- Maximum Operating Temperature: 250 Deg. F
Performance
- Operating Pressure: 153 psi
- Opening Pressure: 146 to 160 psi
Weight
- Weight: 0.04 kg
Parts # BW 800350
