Donaldson Air Filter Primary Radialseal | # DBA5114

Donaldson Air Filter Primary Radialseal

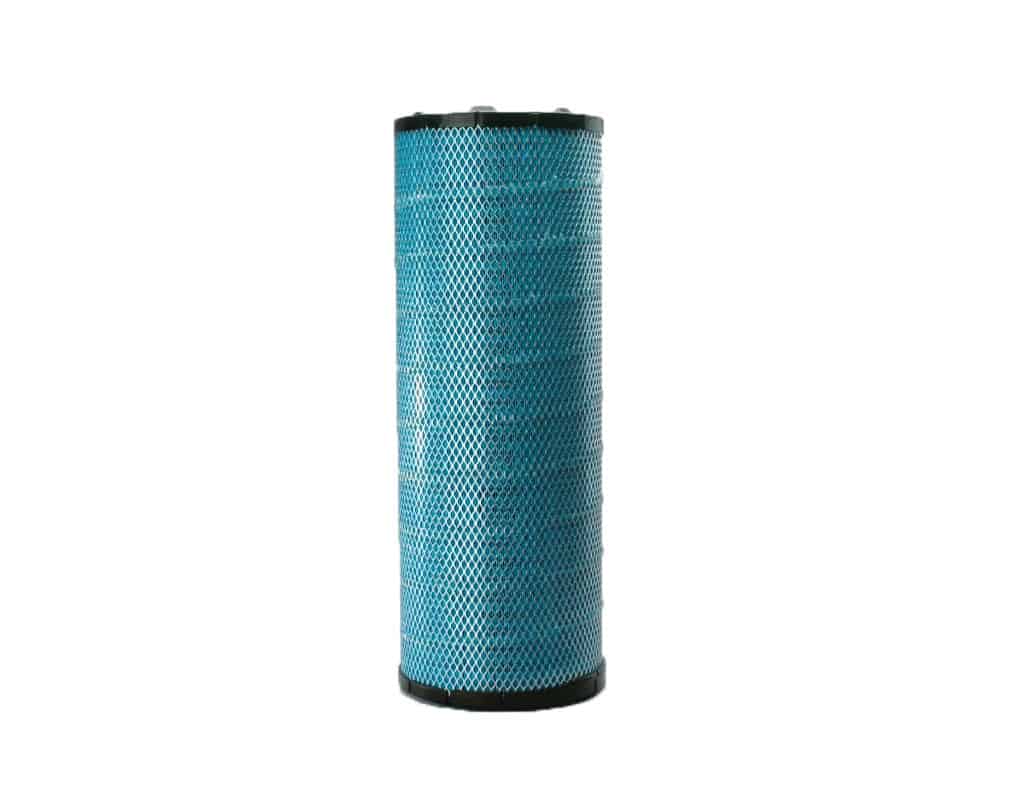

DBA5114 Donaldson Air Filter Primary Radialseal
Shop Donaldson Branded Lube Filters That Are The Most Reliable & Durable In The Trucking & Equipment Industry. If You Have A Question On A Donaldson Product, Feel Free To Gives Our Parts Specialist Team A Call To Find The Correct Filter For Your Truck. Truck Filters Are Based On Make & Model And Other Specs. Allow Tracey Truck Parts To Do The Work For You!

• Brand: Donaldson
• Color: Blue
• Primary Radialseal
• Popular Applications: Mack (See Applications Tab)

Why Choose Donaldson Blue® Filters?
Donaldson Blue Filters With Ultra-Web® Media Provide Superior Protection Over Traditional Cellulose Filters.

• With Up To 99.99% Efficiency, Delivers Better Protection For High-Dust Applications.
• Sheds Dust During Equipment Vibration For Longer Filter Life And Fewer Changes.
• Performs In Extreme Temperature And Humidity.
• Reliable, Leak Resistant Radial Seal™ Keeps Filters In Place – Even Under Heavy Vibration..

Specs:

• Efficiency Up to 99.99%
• Efficiency Test STD ISO 5011
• Primary Application: MACK 57MD320M
• Type: Primary
• Style: Radialseal
• Brand: Donaldson BLUE®
• Media Brand: Ultra-Web®
• Media Type: Ultra-Web Nanofiber

Dimensions:

• Outer Diameter: 9.33 inch (237 mm)
• Inner Diameter: 5.79 inch (147 mm)
• Length: 25.04 inch (636 mm)

Packaged Dimensions:

• Length Packaged: 0.87 FT
• Width Packaged: 0.87 FT
• Height Packaged: 2.42FT
• Packaged Weight: 7.51 LB
• Packaged Volume: 1.8152 FT3

Additional Information:

• Country Of Origin: United States
• NMFC Code: 069100-05
• HTS Code: 8421310000
• UPC Code: 74233014337
• Donaldson Website Link
• The Information Contained Herein Is General In Nature And May Not Reflect Actual Information Regarding The Part At Time Of Shipment. Parts May Originate In More Than One Country – The Actual Country Of Origin And Hs Code Will Be Reflected On The Commercial Invoice(S) That Accompanies The Goods.

Proposition 65 Notice for California: WARNING This product can expose you to chemicals including Formaldehyde, which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Part # DBA5114
TTP Part # DN DBA5114
*Please Inquire If You Have Any Questions On Any Product! 1 (800) 374-6488, Or Chat With Us!
