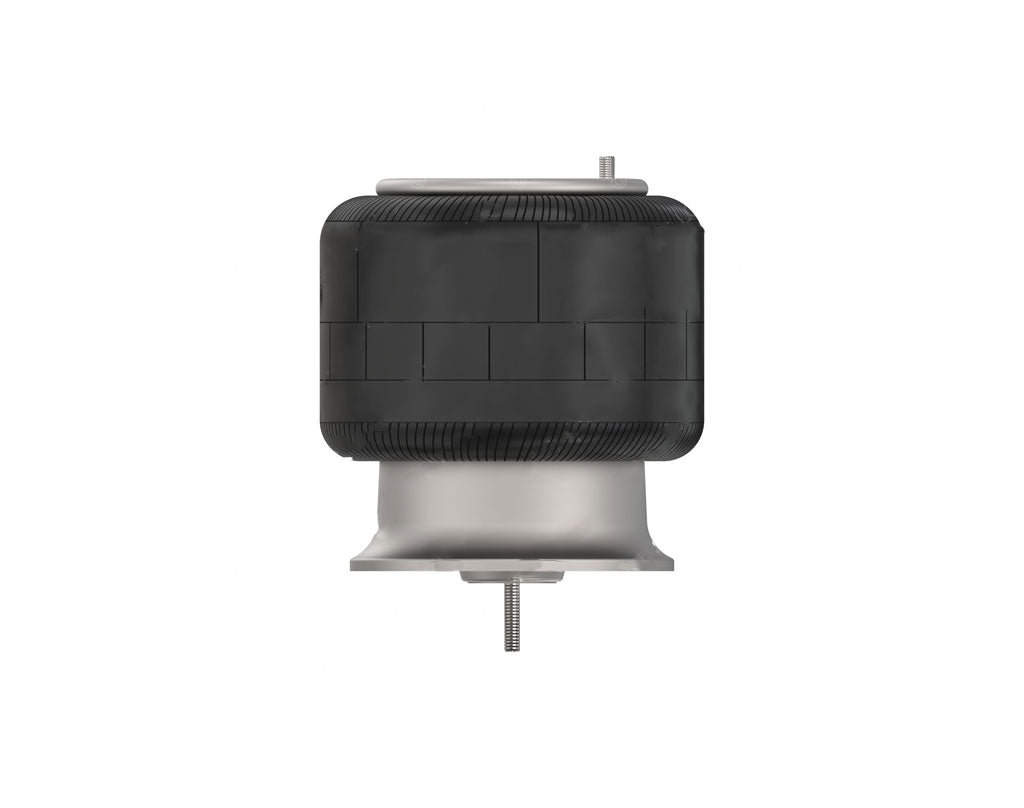

Freightliner Air Spring | # 16-19768-000
Rear Suspension Air Spring – Airliner, CO, Standard Ride, Aluminum Piston
Air spring suspension absorbs road vibrations for a smoother ride — improving comfort and protecting cargo.
Specifications:
Brand: Freightliner (OEM Part)
Application: Rear – Air Suspension
Air Spring Type: Rolling Lobe
Piston Material: Aluminum
Plate Material: Steel
Bellows Material: Rubber
Mounting Stud Quantity: 2
Mount Hole CTC Length: 6.20 in
Top Plate Diameter: 8.90 in
Piston Diameter: 10.63 in
Max Outer Diameter: 12.60 in
Height Range: 9.4 in (min) – 13.27 in (max)
Compressed Height (Jounce): 3.94 in
Rebound Length: 3.99 in
Inlet Thread Size: 1/4-16 UNF 2A
Mounting Stud Thread Size:
-
Stud 1: 1/2-13 UNC 2A
-
Stud 2: 1/4-16 UNF 2A
Performance:
-
Operating Pressure: 5–100 psi
-
Spring Deflection: 101.3 mm
-
Max Load Capacity: 7,800 lbs
-
Operating Temperature: -40°C to +65°C
⚠️ Note: Not for use on ABS valve packages. Compatible with all WABCO ABS systems.
Part # 16-19768-000
