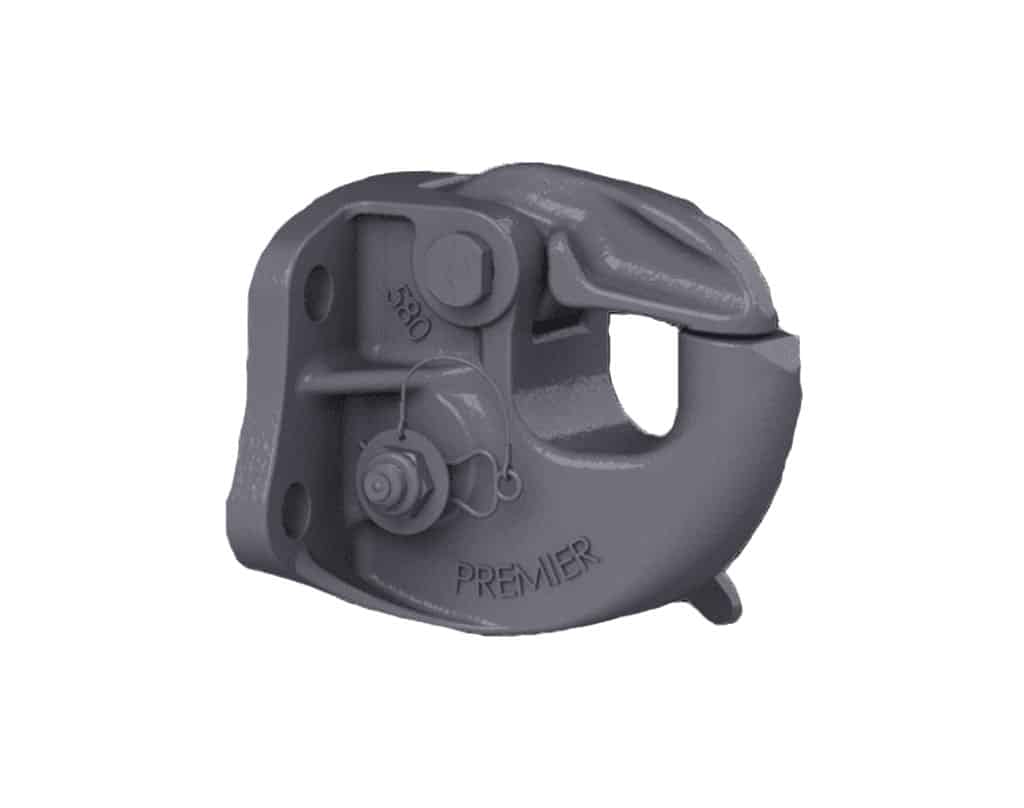

Premier Manufacturing Premalloy Medium Duty Model 580 Coupling
Medium Duty Coupling
A Long Time Favorite Of The Logging Industry, Premier’s 10001193 Coupling Offers A Low Profile And A Very Popular Mounting Pattern. An External Oil Cup Enables Easy Lubrication Of Internal Latch Components. With A Maximum Gross Trailer Weight Of 70,000 Lbs. And 30,000 Lbs. Latch Capacity, The 10001193 Is Your Perfect Choice For Mid-To-Heavy-Duty Applications.
- Brand: Premier Manufacturing
- Legacy # 580

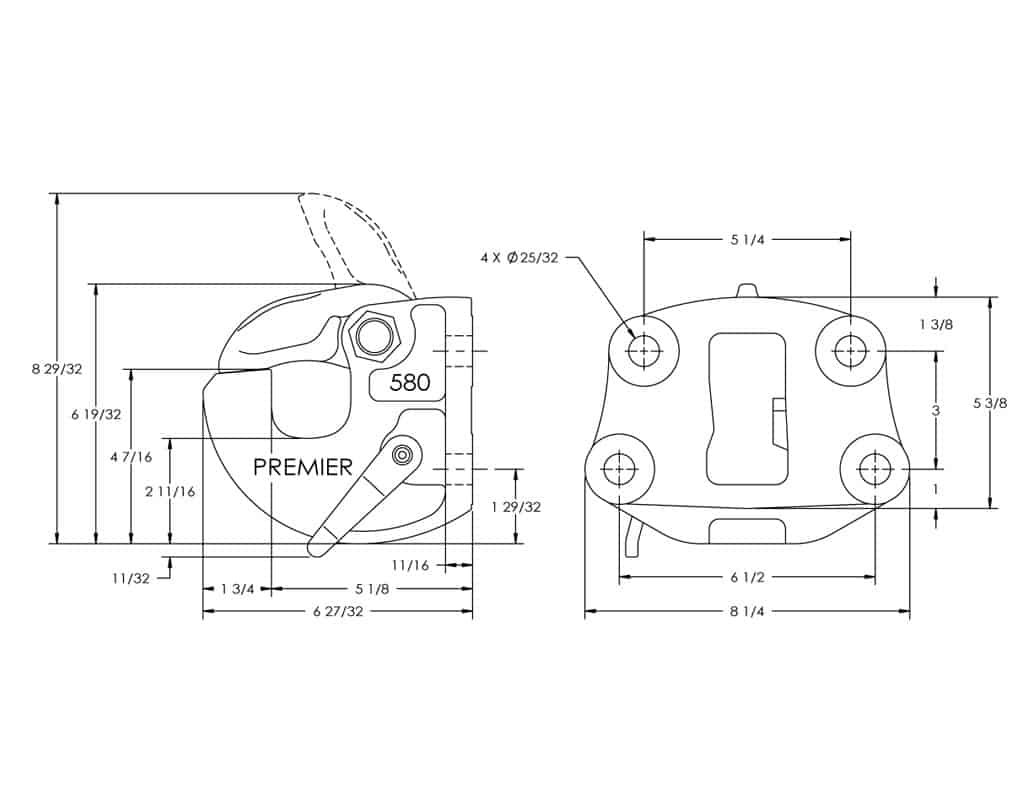

- Dimensions: 8.90 X 6.84 X 8.25, 21.3 LBS.
- Coupling Only
- Medium Duty
- Premalloy
About Premiere's Couplings:
Whatever Your Application, Selecting The Proper Equipment For The Job Is Very Important. Proper Selection Along With Regular Inspection And Maintenance Will Help Keep Operating Costs Minimal While Providing Long Life To Each Component. To Determine Wear Limits, Premier Created Wear Gages That Help Judge The Useful Life Of Couplings And Drawbar Eyes. In Accordance With Premier And The Federal Motor Carrier Safety Regulations, These Were Designed To Identify Wear At The Critical Percentages Of 18% And 20%, By Measuring The Cross-section Of Coupling Hooks (Horn) And Drawbar Eye Loops.
Premier’s Published Load Specifications Are The Maximum Load A Given Product Or Part Will Withstand Without Failure. Premier’s Testing Procedures Closely Follow The Society Of Automotive Engineers (SAE) Guidelines Of Recommended Practice For Testing Couplings And Drawbar Eyes
Selecting The Right Equipment:
Each Premier Product Undergoes Extensive Design And Testing Prior To Being Introduced. Premier uses The Latest In Computer Aided Design And Analysis Software; As Well As Physical Destructive Tests.
- Determine “Gross Trailer(s) Weight” (GVWR(s) Of Towed Trailers)
- Determine “Tongue Weight Capacity” (Maximum Occurring Tongue Weight)
- Add Margin of Safety (Dependent Upon Your Equipment And Operating Environment)
- Browse Premier Product Catalog (Based on Steps 1 - 3)
*Please Inquire If You Have Any Questions On Any Product! 1 (800) 374-6488, Or Chat With Us!
