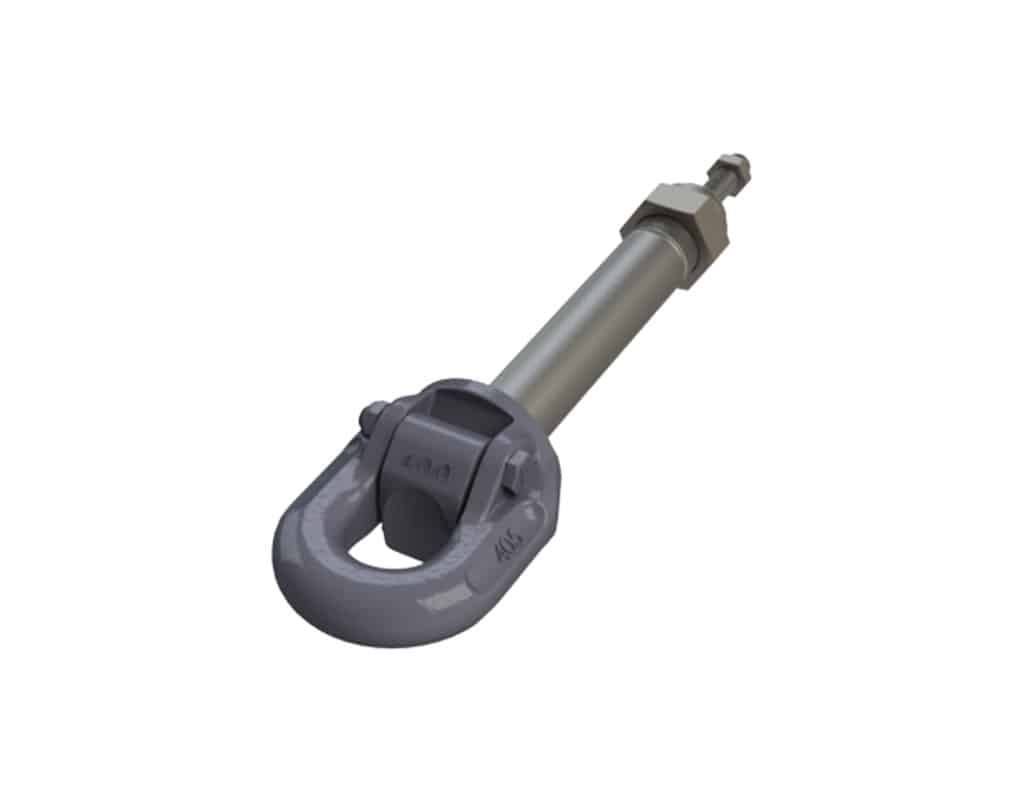

Premier 405 Swivel Drawbar Eyes
10004770, 10004771, 10004772, 10004774, 10004773 Truck Drawbar Eye
Our 405 Swivel Drawbar Eyes are only to be used with Premier Front End Housings. Bushings are not included. Check out the Optional Accessories tab to access our selection of front ends which include the housing, bushings, and washer. This Drawbar Eye is also Slack-Reducing! It can be used with Premier’s 500 Mechanical Slack Adjuster or 281 and 282 Air Service Chambers. Slack Reducing Eyes work to maintain a tight fit between the drawbar eye loop and pintle hook. The snug fit improves the ride & handling while reducing wear for increased service life. It has a maximum gross trailer weight of 90,000 lbs. and is available with either right-hand or left-hand threaded pushrods. Contact your local distributor today!
- Brand: Premier Manufacturing
- Legacy # 405

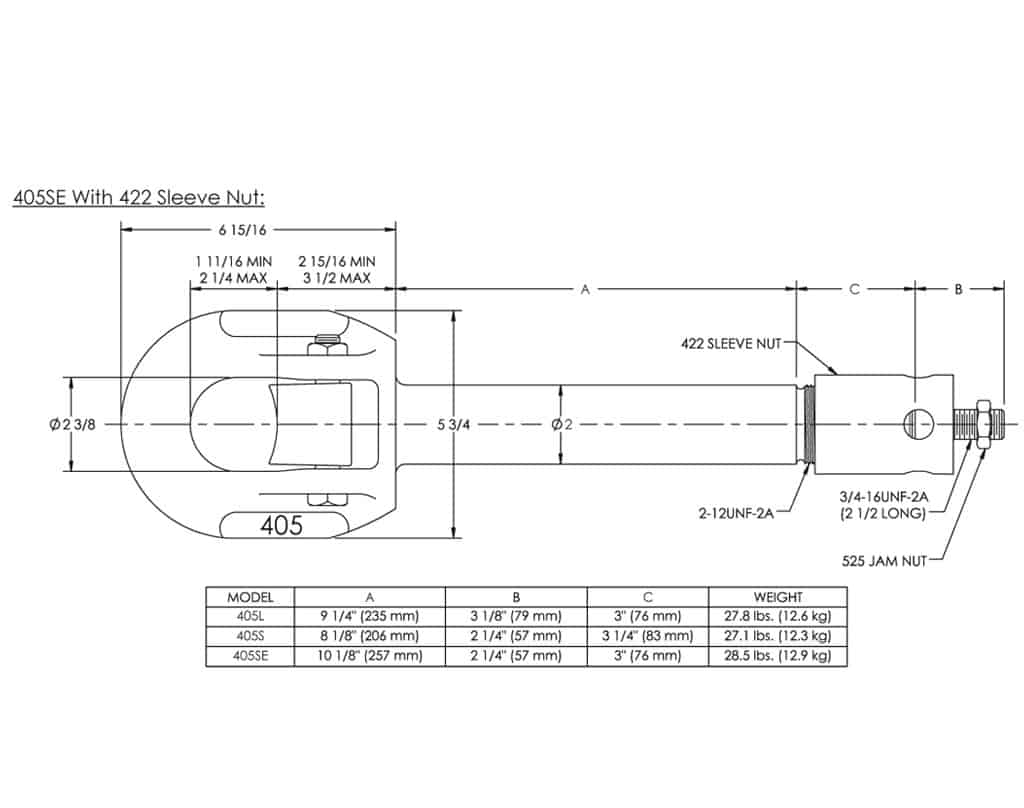

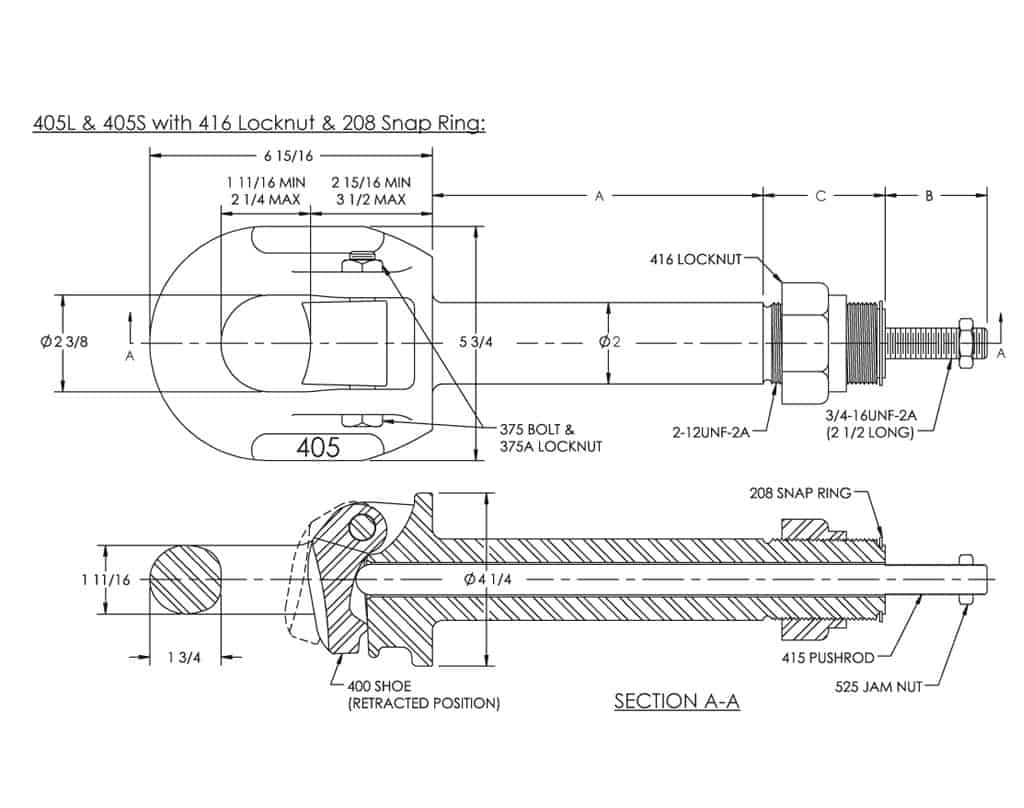

- Dimensions: Refer To Chart Photo 2**
Models Available:
| Model # | Part # | Parts Included |
| 405L | 10004770 | 405 Eye, 415A Pushrod, 400 Shoe, 375 Bolt, 375A Locknut, 416 Locknut, 208 Snap Ring, 525Jam Nut |
| 405LL | 10004771 | 405 Eye, 415AL Pushrod, 400 Shoe, 375 Bolt, 375A Locknut, 416 Locknut, 208 Snap Ring, 525L Jam Nut |
| 405S | 10004772 | 405 Eye, 415 Pushrod, 400 Shoe, 375 Bolt, 375A Locknut, 416 Locknut, 208 Snap Ring, 525 Jam Nut |
| 405SL | 10004774 | 405 Eye, 415L Pushrod, 400 Shoe, 375 Bolt, 375A Locknut, 416 Locknut, 208 Snap Ring, 525L Jam Nut |
| 405SE | 10004773 | 405 Eye, 415A Pushrod, 400 Shoe, 375 Bolt, 375A Locknut, 208 Snap Ring, 525 Jam Nut, 422 Sleeve Nut |
405 Specifications:
| Maximum Gross Trailer Weight: | 90,000 lbs. (40,823 kg) |
| Maximum Tongue Weight: | 3,700 lbs. (1,678 kg) |
| Model # | Drawbar Eye Dimensions | Unit Weight |
| 405L/LL | 2 3/8” ID, Shaft 2” OD x 12 1/4” L | 27.8 lbs. (12.6 kg) |
| 405S/SL | 2 3/8” ID, Shaft 2” OD x 11 3/8” L | 27.1 lbs. (12.3 kg) |
| 405SE | 2 3/8” ID, Shaft 2 1/4” OD x 13 1/8” L | 28.5 lbs. (12.9 kg) |
Part # 10004770, 10004771, 10004772, 10004774, 1000477
About Premiere's Drawbar Eyes:
Premier Manufacturing’s Line Of Drawbar Eyes Showcases How Our Process Leads To The Most Durable Products On The Market. By Utilizing Induction Hardening, We Ensure The Drawbar Eye’s Wear Resistance Is Drastically Increased Beyond The Surface Layer. Combining This Fact With Several Installation Options Such As Weld-On, Bolt-On, And Swivel, We Provide Unmatched Durability That Works Best For Your Specific Application. Shop The Best Drawbar Eyes In The Industry Today At Premier Manufacturing.
Compatible Premier Couplings (By Model Name):
- 100 Slack Reducing Coupling Limited to Quantities on Hand, 100-3 Slack Reducing Coupling Limited to Quantities on Hand
- 100-4 Slack Reducing Coupling Product Discontinued Recommended Replacement: 1400, 130 Coupling
- 150 & 150-1 Combination Couplings, 16 Pin & Clevis Coupling, 160 Coupling, 2200/2200L Slack Reducing Coupling
- 2300 Slack Reducing Coupling, 240 Coupling, 2400 Slack Reducing Coupling, 2400H Slack Reducing Coupling
- 240K & 240KL Couplings, 270 Slack Reducing Coupling, 370 Slack Reducing Coupling
- 470 Slack Reducing Coupling Product Discontinued Recommended Replacements: 2400 & 2400EL, 480 Coupling
- 570 Slack Reducing Coupling, 580 Coupling, 580J Coupling, 690L Drop Pintle Coupling, 780 Slack Reducing Coupling
- 820ELA Extended Life Coupling Assembly, 890C Drop Pintle Coupling Product Discontinued Recommended Replacement: 990 Coupling
Selecting The Right Equipment:
Each Premier Product Undergoes Extensive Design And Testing Prior To Being Introduced. Premier uses The Latest In Computer Aided Design And Analysis Software; As Well As Physical Destructive Tests.
- Determine “Gross Trailer(s) Weight” (GVWR(s) Of Towed Trailers)
- Determine “Tongue Weight Capacity” (Maximum Occurring Tongue Weight)
- Add Margin of Safety (Dependent Upon Your Equipment And Operating Environment)
- Browse Premier Product Catalog (Based on Steps 1 - 3)
