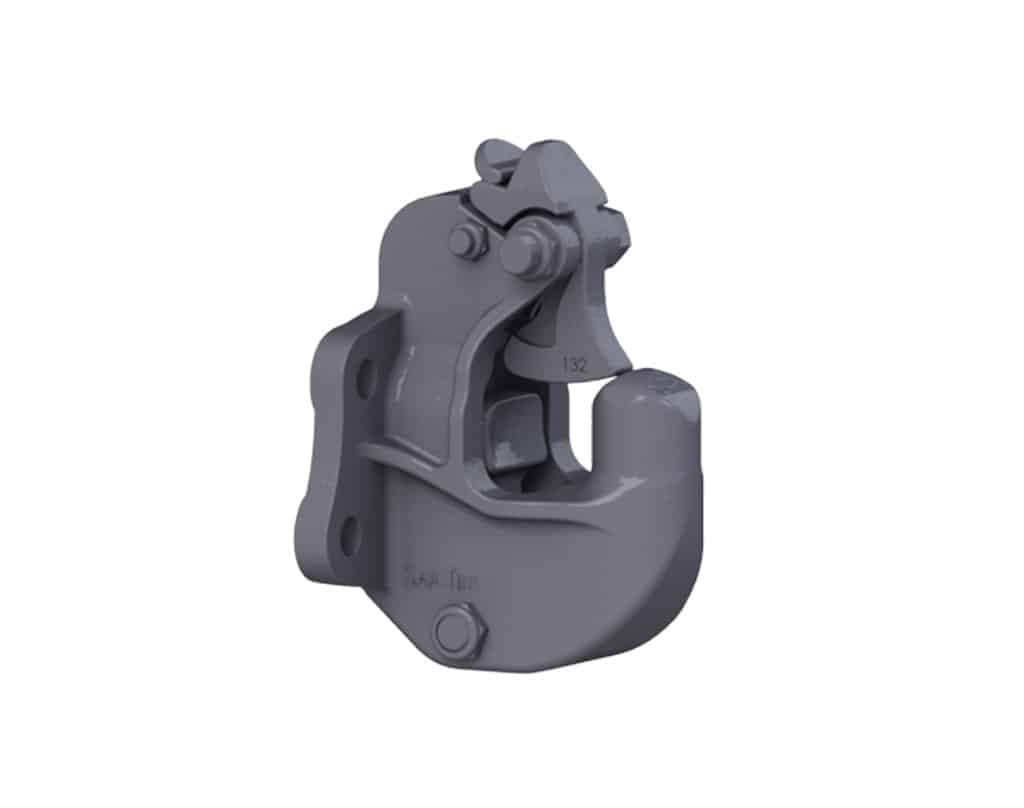

Premier Manufacturing 100 Slack Reducing Couplings
Couplings, **Limited To Quantity On Hand
The 100 Saf-Tite Slack Reducing Coupling Features The Most Popular Mounting Bolt Pattern In The Industry; The Same As Our 2200 And 270. With A Maximum Gross Trailer Weight Of 100,000 Lbs. And 20,000 Lbs. Latch Capacity, The 100 Is An Ultra-Strong Product Suitable For Your Hitching Needs.
- Brand: Premier Manufacturing
- Legacy # 100, 100A, 100A-2

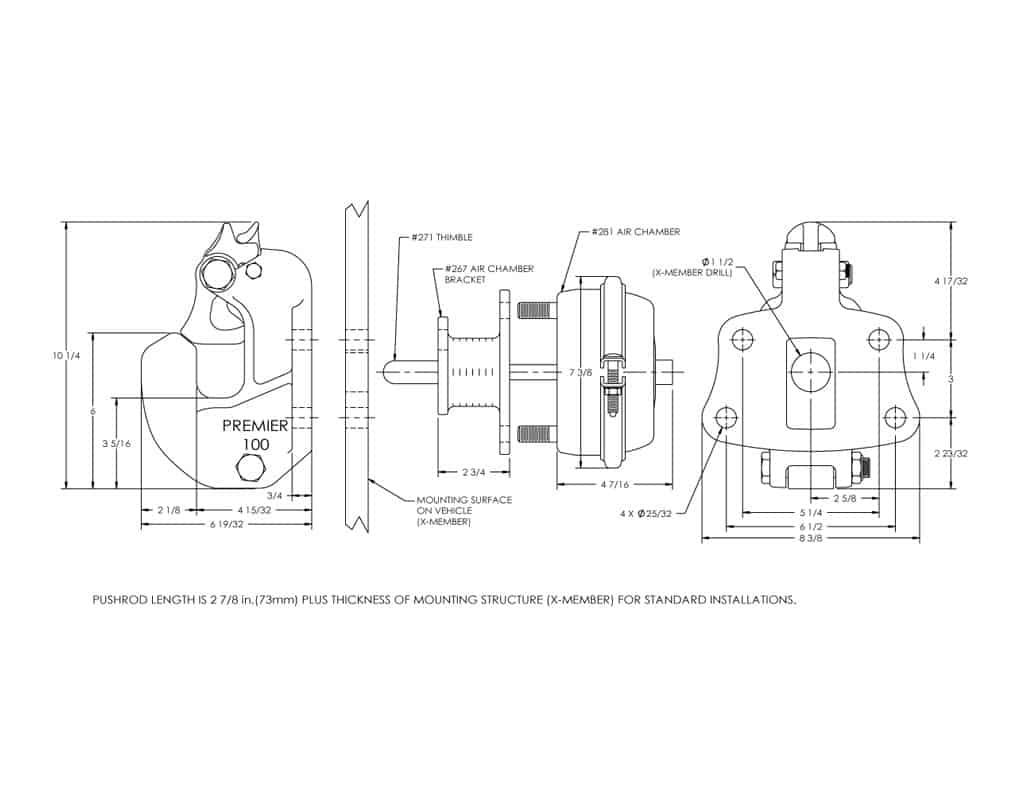

- Dimensions: 10-1/4", 4-17/13", 8-3/8"
- Heavy Duty
- Slack Reducing
Available Models:
- Model 100: 100 Coupling & 271 Thimble. (Part # 10004654)
- Model 100A: 100 Coupling, 501 Bolt Kit, 281 Air Chamber, 267 Air Chamber Adapter Bracket, 271 Thimble. (Part # 10004668)
- Model 100A-2: Same as 100A, Without The 501 Bolt Kit. (Part # 10004669)
Accessories & Replacement Parts:
| Model # | Part # | Description |
| 100PK | 10000205 | Parts Kit |
| 271 | 10000107 | Thimble |
| 281 | 10000116 | Air Chamber, Type 24 |
| 282 | 10000122 | Air Chamber, Type 30 |
| 267 | 10000098 | Air Chamber Adapter Bracket (2 3/4 in. overall length) |
| 267F | 10000101 | Air Chamber Adapter Bracket (4 5/8 in. overall length) |
| 267H | 10000102 | Air Chamber Adapter Bracket (3/4 in. overall length) |
| 501 | 10000149 | Bolt Kit |
| 14014 | 10000062 | Wear Gage |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
About Premiere's Couplings:
Whatever Your Application, Selecting The Proper Equipment For The Job Is Very Important. Proper Selection Along With Regular Inspection And Maintenance Will Help Keep Operating Costs Minimal While Providing Long Life To Each Component. To Determine Wear Limits, Premier Created Wear Gages That Help Judge The Useful Life Of Couplings And Drawbar Eyes. In Accordance With Premier And The Federal Motor Carrier Safety Regulations, These Were Designed To Identify Wear At The Critical Percentages Of 18% And 20%, By Measuring The Cross-section Of Coupling Hooks (Horn) And Drawbar Eye Loops.
Selecting The Right Equipment:
Each Premier Product Undergoes Extensive Design And Testing Prior To Being Introduced. Premier uses The Latest In Computer Aided Design And Analysis Software; As Well As Physical Destructive Tests.
- Determine “Gross Trailer(s) Weight” (GVWR(s) Of Towed Trailers)
- Determine “Tongue Weight Capacity” (Maximum Occurring Tongue Weight)
- Add Margin of Safety (Dependent Upon Your Equipment And Operating Environment)
- Browse Premier Product Catalog (Based on Steps 1 - 3)
*Please Inquire If You Have Any Questions On Any Product! 1 (800) 374-6488, Or Chat With Us!
