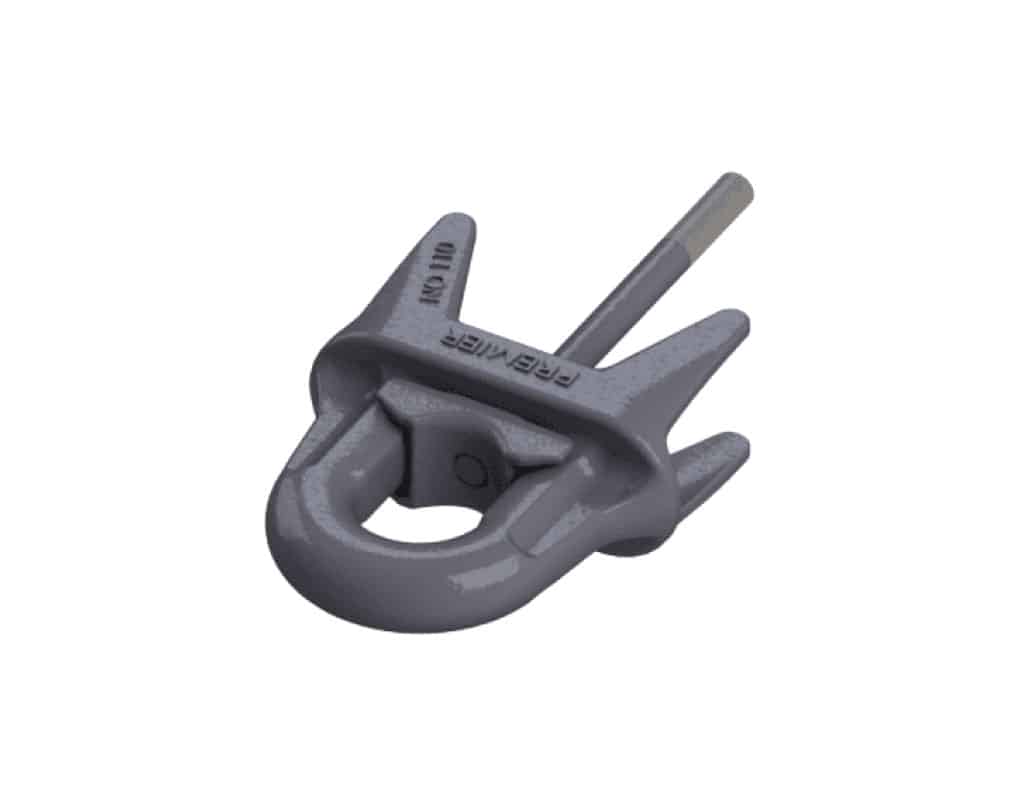

Premier Manufacturing 110 Weld-On Slack Reducing Drawbar Eyes
110 Weld-On Drawbar Eyes
The 110 Weld-On Slack Reducing Drawbar Eye Was Designed For Use With Premier’s 500 Mechanical Slack Adjuster Or 281 And 282 Air Service Chambers. Slack Reducing Eyes Work To Maintain A Tight Fit Between The Drawbar Eye Loop And Pintle Hook. The Snug Fit Improves The Ride & Handling While Reducing Wear For Increased Service Life. The 110 Models Have A Maximum Gross Trailer Weight If 100,000 Lbs. Check Out The Optional Accessories Tab Below For Complementary Components And The Installation Guide Tab For More Information!
Designed For: 2 1/2 Inch (64 Mm) Round Tubing
Designed For: 2 1/2 Inch (64 Mm) Round Tubing
- Brand: Premier Manufacturing
- Legacy # 110-7, 110-8, 110-12
- Dimensions: 12" X 7-3/4" X 1-5/8"
Models Available:
| Model # | Part # | Parts Included |
| 110-7 | 10000710 | 110 Drawbar Eye, 411 Shoe, 113B Pushrod |
| 110-8 | 10000711 | 110 Drawbar Eye, 411 Shoe, 113A Pushrod |
| 110-12 | 10000709 | 110 Drawbar Eye, 411 Shoe, 113 Pushrod |
110 Specifications:
| Maximum Gross Trailer Weight | 100,000 lbs. (45,359 kg) |
| Maximum Tongue Weight | 15,000 lbs. (6,804 kg) |
| Inside Diameter | 2 3/8 in. (60 mm) |
| Unit Weight | 16.5 lbs. (7.5 kg) |
Replacement Parts Specifications:
| Model # | Length: | Thread: |
| 113B | 7 in. (178 mm) | 3/4 in - 16 NF |
| 113A | 8 in. (203 mm) | 3/4 in - 16 NF |
| 113 | 12 in. (305 mm) | 3/4 in - 16 NF |
| 47 | 3 5/8 in. | 1 1/16 HEX |
| 47L | 3 5/8 in. | 1 1/16 HEX |
| 47SPL | 6 in. | 1 1/16 HEX |
Part # 10000710, 10000711, 10000709
About Premiere's Drawbar Eyes:
Premier Manufacturing’s Line Of Drawbar Eyes Showcases How Our Process Leads To The Most Durable Products On The Market. By Utilizing Induction Hardening, We Ensure The Drawbar Eye’s Wear Resistance Is Drastically Increased Beyond The Surface Layer. Combining This Fact With Several Installation Options Such As Weld-On, Bolt-On, And Swivel, We Provide Unmatched Durability That Works Best For Your Specific Application. Shop The Best Drawbar Eyes In The Industry Today At Premier Manufacturing.
Compatible Premier Couplings (By Model Name):
- Models: 100, 100-3, 100-4, 130
- 135NT, 150 & 150-1, 16 Pin, 160
- 2200/200L, 2300, 235NT, 240
- 2400, 2400H, 240K & 240KL, 270
- 370, 470, 480, 570
- 580, 580J, 690L, 780
- 820ELA, 890C
Selecting The Right Equipment:
Each Premier Product Undergoes Extensive Design And Testing Prior To Being Introduced. Premier uses The Latest In Computer Aided Design And Analysis Software; As Well As Physical Destructive Tests.
- Determine “Gross Trailer(s) Weight” (GVWR(s) Of Towed Trailers)
- Determine “Tongue Weight Capacity” (Maximum Occurring Tongue Weight)
- Add Margin of Safety (Dependent Upon Your Equipment And Operating Environment)
- Browse Premier Product Catalog (Based on Steps 1 - 3)
*Please Inquire If You Have Any Questions On Any Product! 1 (800) 374-6488, Or Chat With Us!
