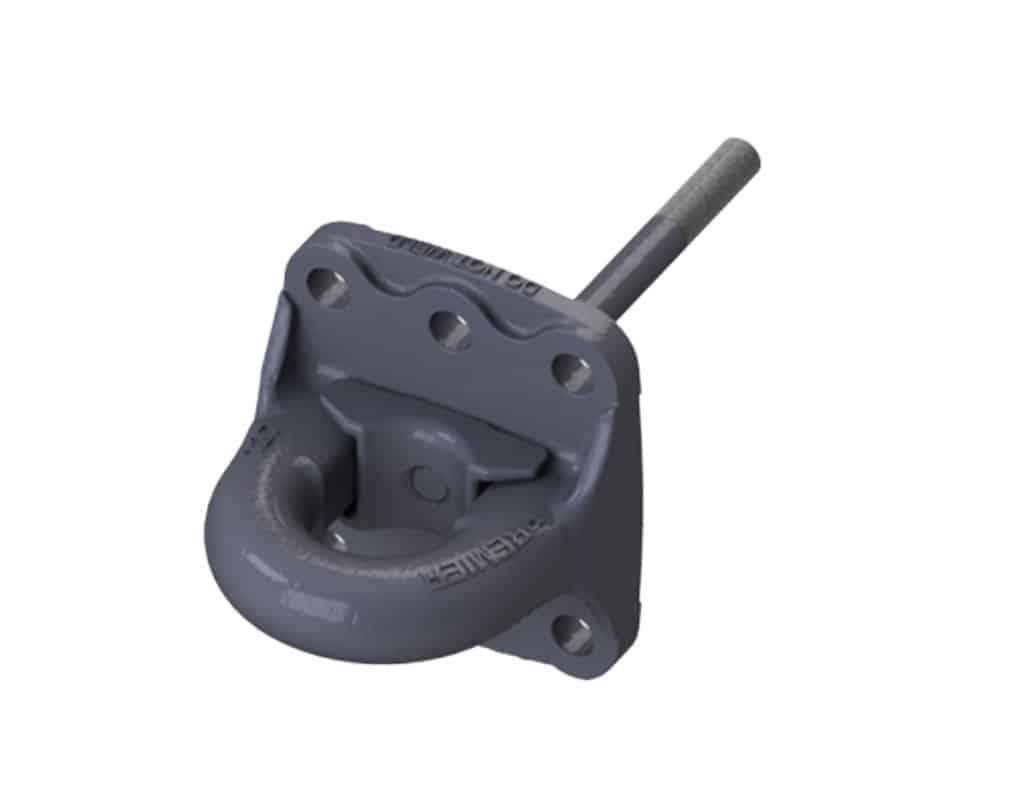

Premier Manufacturing 127 & 127F Bolt-On Slack Reducing Drawbar Eyes
Bolt-On Drawbar Eyes
Made With Our Durable Premalloy, The 127 Bolt-On Slack Reducing Drawbar Eye Is Perfect For All Of Your Trucking Needs. It Was Designed For Use With Premier’s 500 Mechanical Slack Adjuster Or 281 And 282 Air Service Chambers. Slack Reducing Eyes Work To Maintain A Tight Fit Between The Drawbar Eye Loop And Pintle Hook. The Snug Fit Improves The Ride & Handling While Reducing Wear For Increased Service Life. The 127 Models Have A Maximum Gross Trailer Weight If 100,000 Lbs. And Maximum Tongue Weight Of 15,000 Lbs., Making Them Suitable For A Variety Of Applications. Check Out The Optional Accessories Tab Below For Complementary Components And The Installation Guide Tab For More Information!
- Brand: Premier Manufacturing
- Legacy # 127-7, 127-8, 127-12, 127F
- Package Dimensions: 14 X 7.37 X 5.81, 17.4 LBS.
- Weld-On
- Slack Reducing
- Truck Drawbar Eye
About Premiere's Drawbar Eyes:
Premier Manufacturing’s Line Of Drawbar Eyes Showcases How Our Process Leads To The Most Durable Products On The Market. By Utilizing Induction Hardening, We Ensure The Drawbar Eye’s Wear Resistance Is Drastically Increased Beyond The Surface Layer. Combining This Fact With Several Installation Options Such As Weld-On, Bolt-On, And Swivel, We Provide Unmatched Durability That Works Best For Your Specific Application. Shop The Best Drawbar Eyes In The Industry Today At Premier Manufacturing.
Compatible Premier Couplings (By Model Name):
- 130, 135NT, 150/150-1, 16 Pin & Clevis Coupling
- 160, 2200/2200L, 2300, 235NT
- 240, 2400, 2400H, 240K/240KL
- 270, 370, 470, 480
- 570, 580, 580J, 690L
- 780, 820ELA, SAF-TITE 100, SAF-TITE 100-3
- SAF-TITE 100-4
Models Available:
|
Part # 10000727 (Model #127-7) |
127 Drawbar eye, 2 3/8″ ID, 7″ pushrod. |
|
Part # 10000728 (Model #127-8) |
127 Drawbar eye, 2 3/8″ ID, 8″ pushrod. |
|
Part # 10000726 (Model #127-12) |
127 Drawbar eye, 2 3/8″ ID, 12″ pushrod. |
| Parts Included for above models: | 10000010 Shoe, choice of pushrod length. |
|
Part # 10000729 (Model #127F) |
127 Drawbar eye WITHOUT the 10000010 shoe and pushrod. |

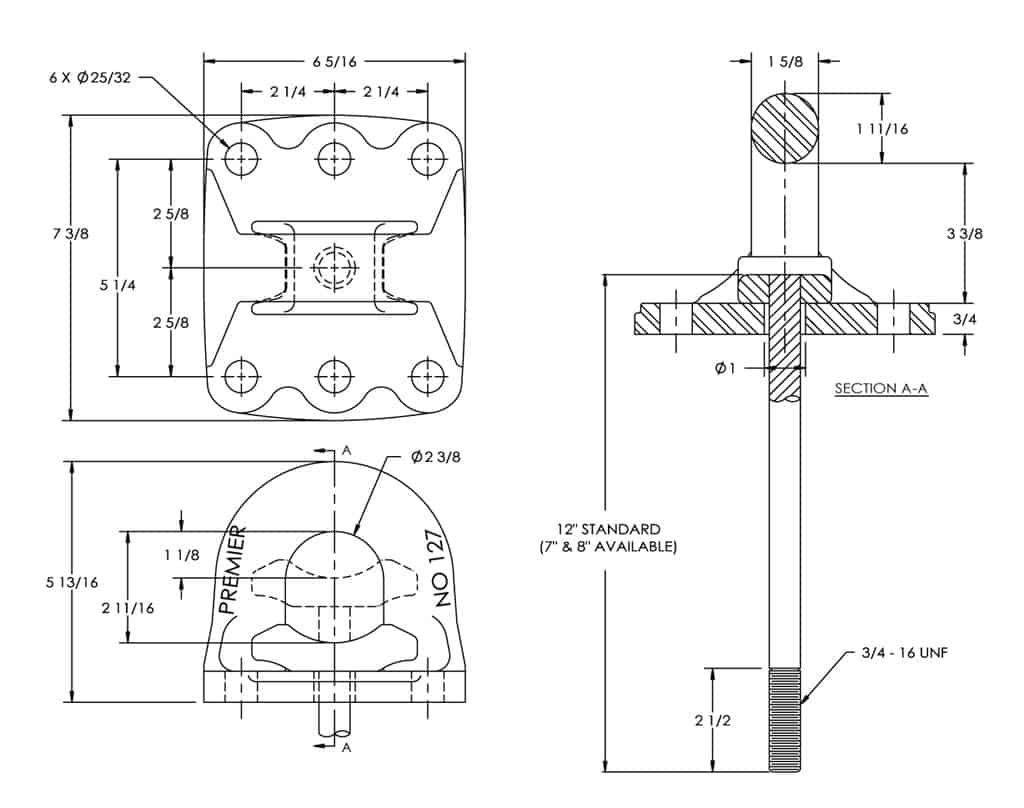

| Pushrod lengths: | 113: 12 in. (305 mm) |
| 113A: 8 in. (203 mm) | |
| 113B: 7 in. (178 mm) | |
| 3/4 in – 16 NF thread on all rods |
Specifications:
| Maximum Gross Trailer Weight | 100,000 lbs. (45,359 kg) | |
| Maximum Tongue Weight | 15,000 lbs. (6,804 kg) | |
| Inside Diameter | 2 3/8 in. (60 mm) | |
| Unit Weight | 17.4 lbs. (7.9 kg) |
Selecting The Right Equipment:
Each Premier Product Undergoes Extensive Design And Testing Prior To Being Introduced. Premier uses The Latest In Computer Aided Design And Analysis Software; As Well As Physical Destructive Tests.
- Determine “Gross Trailer(s) Weight” (GVWR(s) Of Towed Trailers)
- Determine “Tongue Weight Capacity” (Maximum Occurring Tongue Weight)
- Add Margin of Safety (Dependent Upon Your Equipment And Operating Environment)
- Browse Premier Product Catalog (Based on Steps 1 - 3)
*Please Inquire If You Have Any Questions On Any Product! 1 (800) 374-6488, Or Chat With Us!
