Description

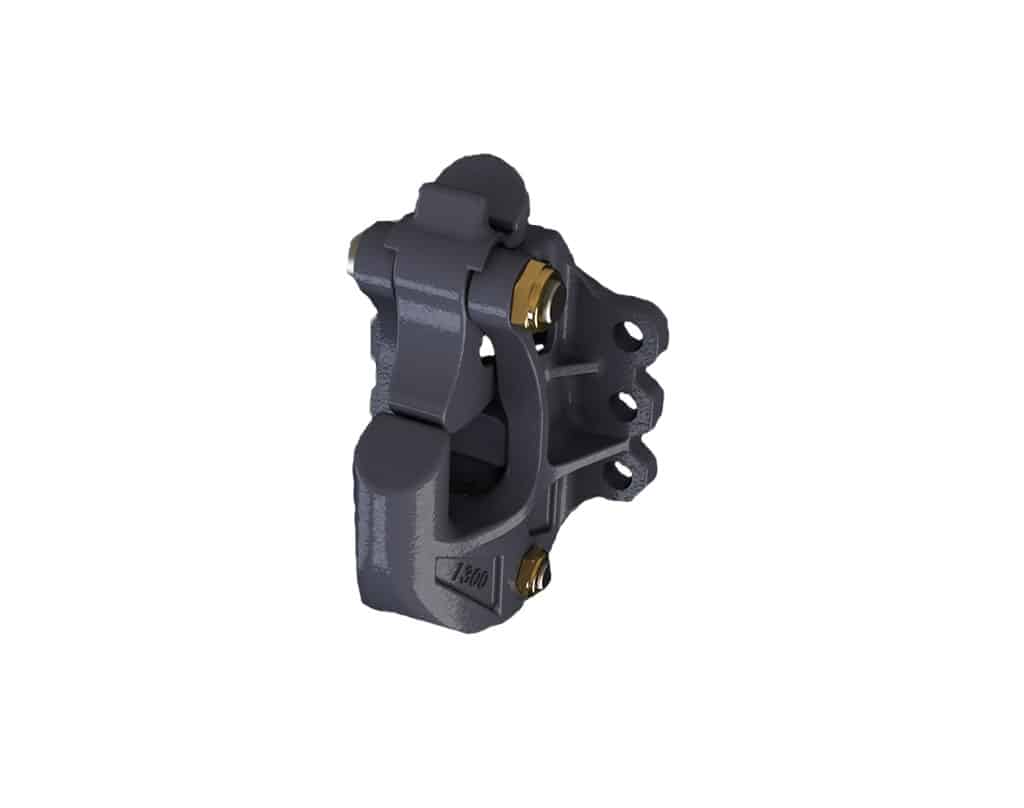

Premier Manufacturing 1200 Silver Series Couplings
1300 Couplings
The New 1300 Coupling Replaces The Discontinued 100-3. This Silver Series Coupling Provides An Economical Alternative To Our Premalloy Coupling. The 1300 Has The Same Bolt Hole Pattern As The 2300 & 370 Models.
- Brand: Premier Manufacturing
- Legacy # 1300, 1300A, 1300A-2

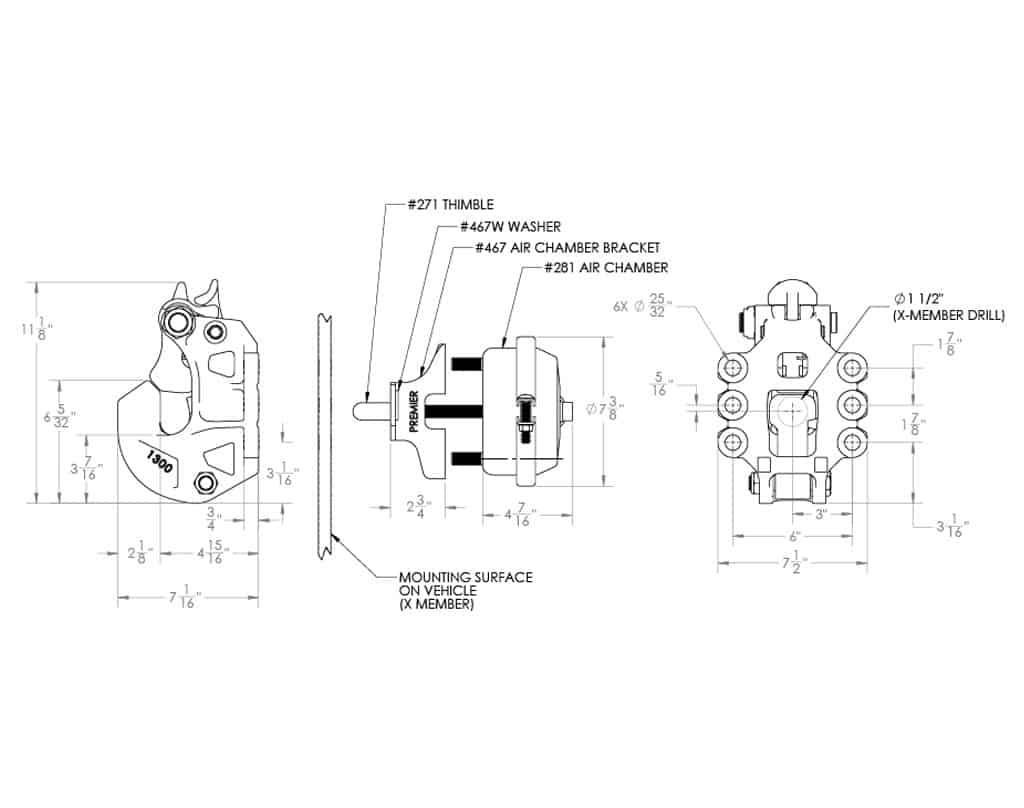

- Dimensions: 7-1/16" X 8-1/2" X 11-1/8"
- Heavy Duty
- Slack Reducing
- Silver Series
Available Models:
| Model # | Part # | Description |
| 1300 | 10005668 | 1300 Coupling & 271 Thimble |
| 1300A | 10006049 | 1300 Coupling, 502 Bolt Kit, 281 Air Chamber, 467 Air Chamber Adapter Bracket, 271 Thimble |
| 1300A-2 | 10006985 | Same as 1300A, without the 502 Bolt Kit |
Part # 10005668, 10006049, 10000107
Accessories & Replacement Parts:
| Model # | Part # | Description |
| 271 | 10000107 | Thimble |
| 281 | 10000116 | Air Chamber, Type 24 |
| 267 | 10000098 | Air Chamber Adapter Bracket |
| 502 | 10000149 | Bolt Kit |
| 2000PK | 10000737 | Parts Kit |
| 14014 | 10000062 | Wear Gage |
About Premiere's Couplings:
Whatever Your Application, Selecting The Proper Equipment For The Job Is Very Important. Proper Selection Along With Regular Inspection And Maintenance Will Help Keep Operating Costs Minimal While Providing Long Life To Each Component. To Determine Wear Limits, Premier Created Wear Gages That Help Judge The Useful Life Of Couplings And Drawbar Eyes. In Accordance With Premier And The Federal Motor Carrier Safety Regulations, These Were Designed To Identify Wear At The Critical Percentages Of 18% And 20%, By Measuring The Cross-section Of Coupling Hooks (Horn) And Drawbar Eye Loops.
Selecting The Right Equipment:
Each Premier Product Undergoes Extensive Design And Testing Prior To Being Introduced. Premier uses The Latest In Computer Aided Design And Analysis Software; As Well As Physical Destructive Tests.
- Determine “Gross Trailer(s) Weight” (GVWR(s) Of Towed Trailers)
- Determine “Tongue Weight Capacity” (Maximum Occurring Tongue Weight)
- Add Margin of Safety (Dependent Upon Your Equipment And Operating Environment)
- Browse Premier Product Catalog (Based on Steps 1 - 3)
*Please Inquire If You Have Any Questions On Any Product! 1 (800) 374-6488, Or Chat With Us!
