Description

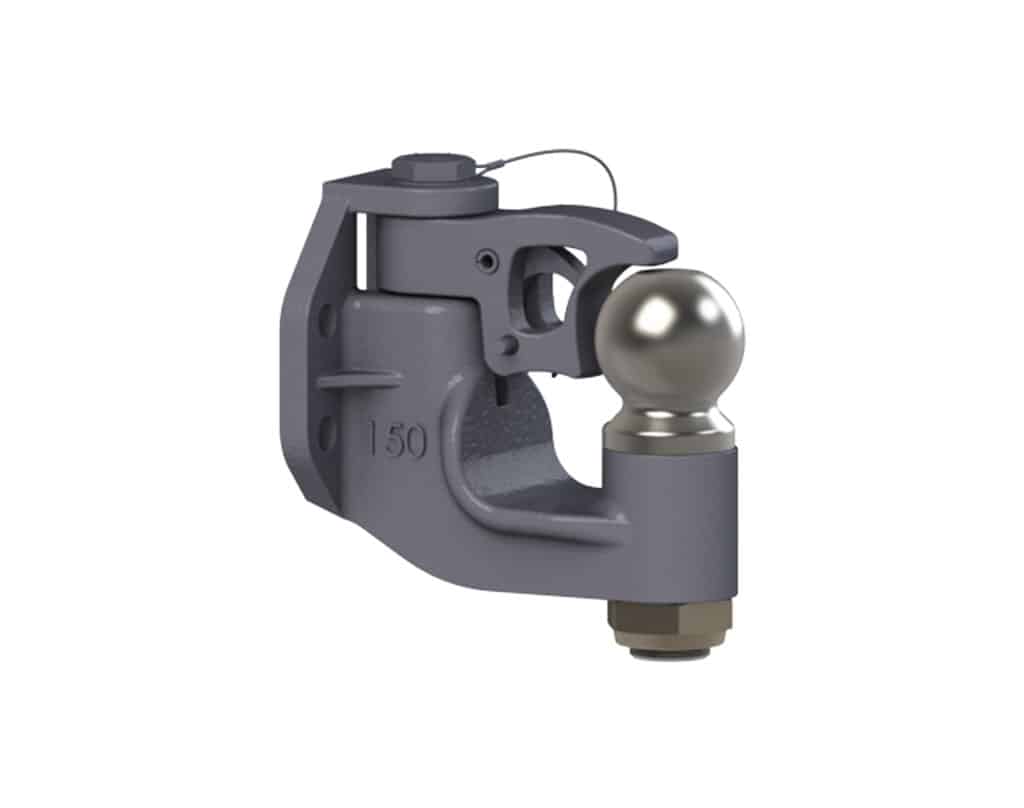

Premier Manufacturing 150 & 150-1 Combination Couplings
Combination Couplings
One Of Premier Manufacturing’s Most Unique And Versatile Couplings Is Our Popular 150 Combination Coupling. Whether You Need To Pull A Trailer With An Eye Or Ball Connection, The 150 & 150-1 Couplings Can Do The Job. Our Patented Side-Swing Latch Helps Prevent Tailgate Damage And Keeps The Profile Compact. With A Maximum Gross Trailer Weight Of 20,000 LBS. And 5,000 Lbs. Latch Capacity, Premier’s Combination Coupling Is Perfect For Your Hauling Needs.
- Brand: Premier Manufacturing
- Legacy # 150 & 150-1

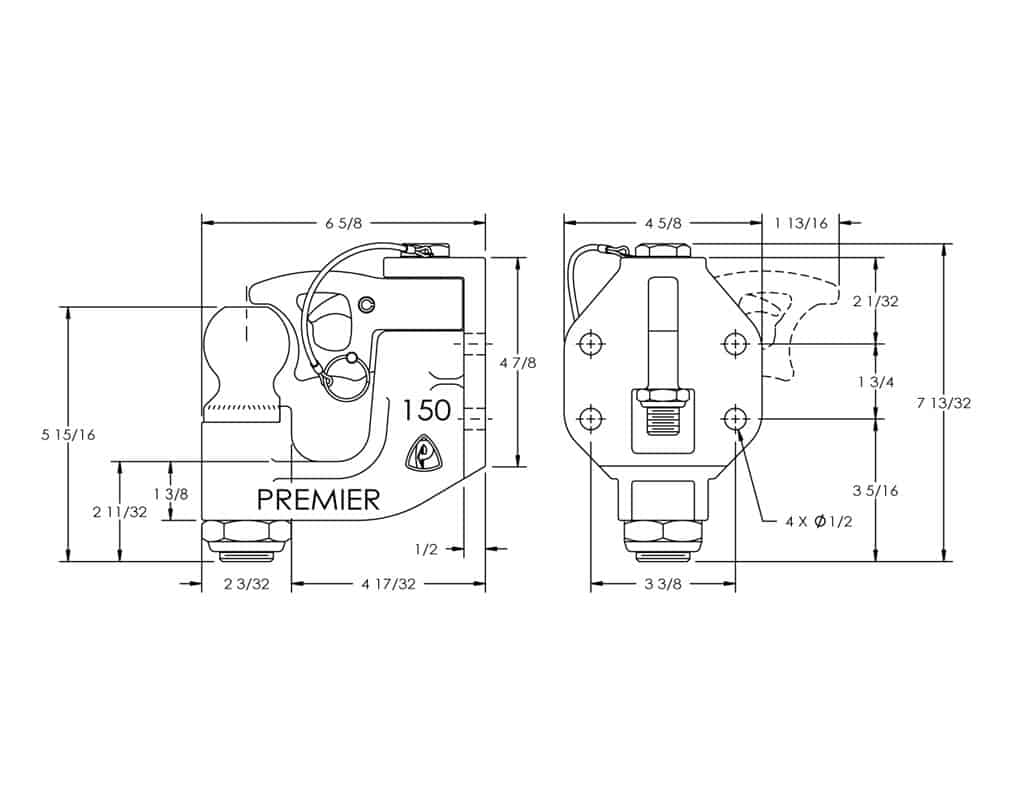

- Dimensions: 6-5/8" X 7-13/32" X 4-5/8"
- Light Duty
Available Models:
- Model 150: 150 Coupling & 155 Coupling Ball. (Part # 10004672)
- Model 150-1: 150 Coupling & 156 Coupling Ball. (Part # 10004673)
Accessories & Replacement Parts:
| Model # | Part # | Description |
| 150PK | 10001075 | Parts Kit |
| 155 | 10000090 | Coupling Ball w/ 157 Locknut (2 in. Diameter) |
| 156 | 10000092 | Coupling Ball w/ 157 Locknut (2 5/16 in. Diameter) |
| 157 | 10001086 | Locknut |
| 159 | 10000438 | Bolt Kit |
| 165 | 10000094 | Adjustable Mount Receiver (2 inch) |
| 166 | 10000096 | Adjustable Mount Receiver (2 1/2 inch) |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
Accessory Parts Specifications:
| 165 Adjustable Mount Receiver MGTW | 10,000 lbs. (4,535 kg) |
| 166 Adjustable Mount Receiver MGTW | 12,000 lbs. (5,443 kg) |
About Premiere's Couplings:
Whatever Your Application, Selecting The Proper Equipment For The Job Is Very Important. Proper Selection Along With Regular Inspection And Maintenance Will Help Keep Operating Costs Minimal While Providing Long Life To Each Component. To Determine Wear Limits, Premier Created Wear Gages That Help Judge The Useful Life Of Couplings And Drawbar Eyes. In Accordance With Premier And The Federal Motor Carrier Safety Regulations, These Were Designed To Identify Wear At The Critical Percentages Of 18% And 20%, By Measuring The Cross-section Of Coupling Hooks (Horn) And Drawbar Eye Loops.
Selecting The Right Equipment:
Each Premier Product Undergoes Extensive Design And Testing Prior To Being Introduced. Premier uses The Latest In Computer Aided Design And Analysis Software; As Well As Physical Destructive Tests.
- Determine “Gross Trailer(s) Weight” (GVWR(s) Of Towed Trailers)
- Determine “Tongue Weight Capacity” (Maximum Occurring Tongue Weight)
- Add Margin of Safety (Dependent Upon Your Equipment And Operating Environment)
- Browse Premier Product Catalog (Based on Steps 1 - 3)
*Please Inquire If You Have Any Questions On Any Product! 1 (800) 374-6488, Or Chat With Us!
