Premier Manufacturing 166 Receiver | # 10000096

Premier Manufacturing 166 Receiver
Part # 10000096
Also listed as: 10000096 Truck 166 Receiver
Brand: Premier Manufacturing

Description:

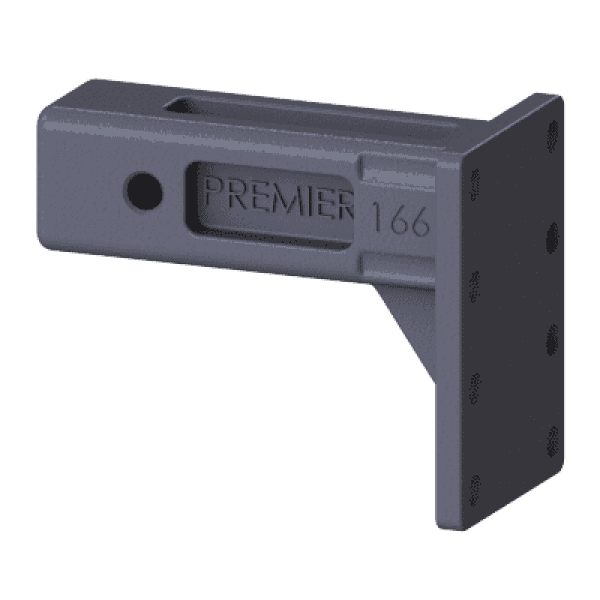

Like the 165, the 166 Receiver is a single, solid steel casting, adjustable mount receiver—designed for 2 1/2-inch receiver-type connections. It allows for three different vertical height positions when mounting the Premier 150 and 160 Couplings.

Specifications:

• Model #: 166

• Part #: 10000096

• Description: Adjustable Mount Receiver, 2 1/2-inch connection

• Maximum Gross Trailer Weight: 12,000 lbs. (5,443 kg)

• Maximum Tongue Weight: 1,200 lbs. (544 kg)

• Unit Weight: 15 lbs. (6.8 kg)

• Pin Diameter: 5/8 in. (16 mm)

Selecting the Right Equipment:

Each Premier product undergoes extensive design and physical destructive testing. The engineering team utilizes the latest in CAD and analysis software to ensure reliability.

1. Determine gross trailer(s) weight (GVWR of towed trailers)

2. Determine tongue weight capacity (maximum occurring tongue weight)

3. Add a margin of safety based on your equipment and operating conditions

4. Browse the Premier product catalog based on the criteria above
