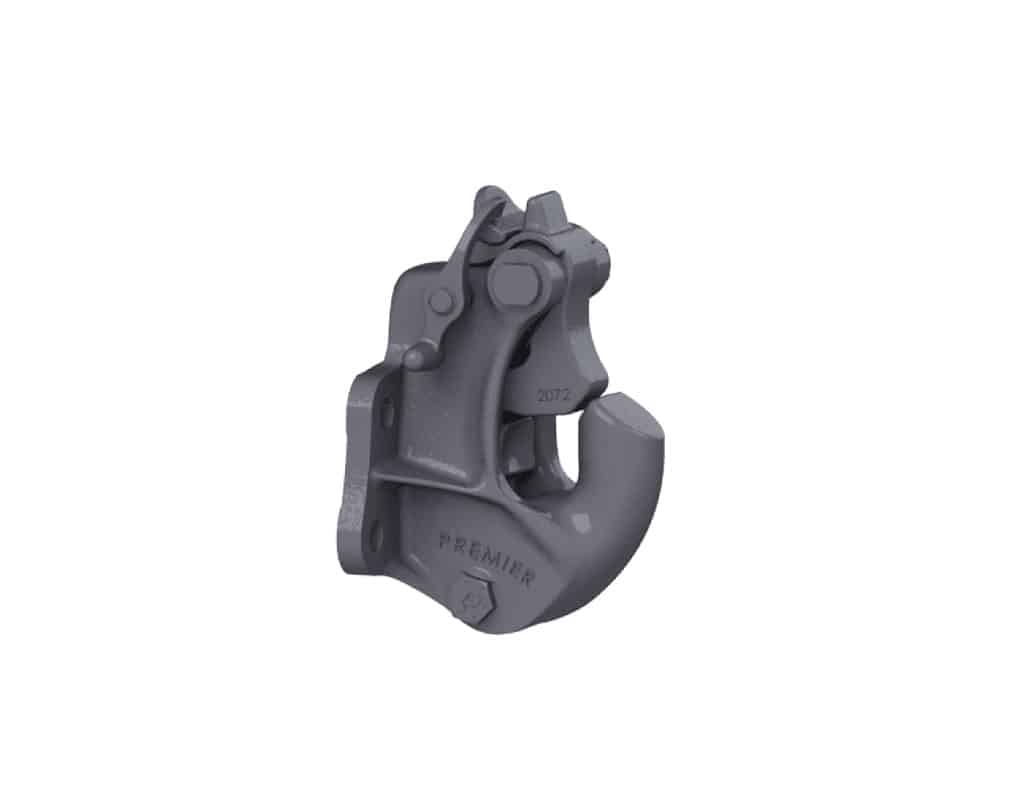

Premier Manufacturing 2200 / 2200L Slack Reducing Coupling
Slack Coupling
The 2200 Model Coupling, Like Our Ever-Popular 270 Coupling, Features The Most Popular Mounting Bolt Pattern In The Industry. All Of Our 2000 Series Couplings Offer Exceptional Latch Strength, Easy Operation, And Low Maintenance. All 2000 Series Couplings Can Be Operated With Or Without An Air Service Chamber. With A Maximum Gross Trailer Weight Of 100,000 LBS., The 2200 Model Coupling Is Perfect For Heavy-Duty Hauling.
- Brand: Premier Manufacturing
- Legacy # 2200, 2200NS, 2200L, 2200A, 2200A-2, 2200A-267H

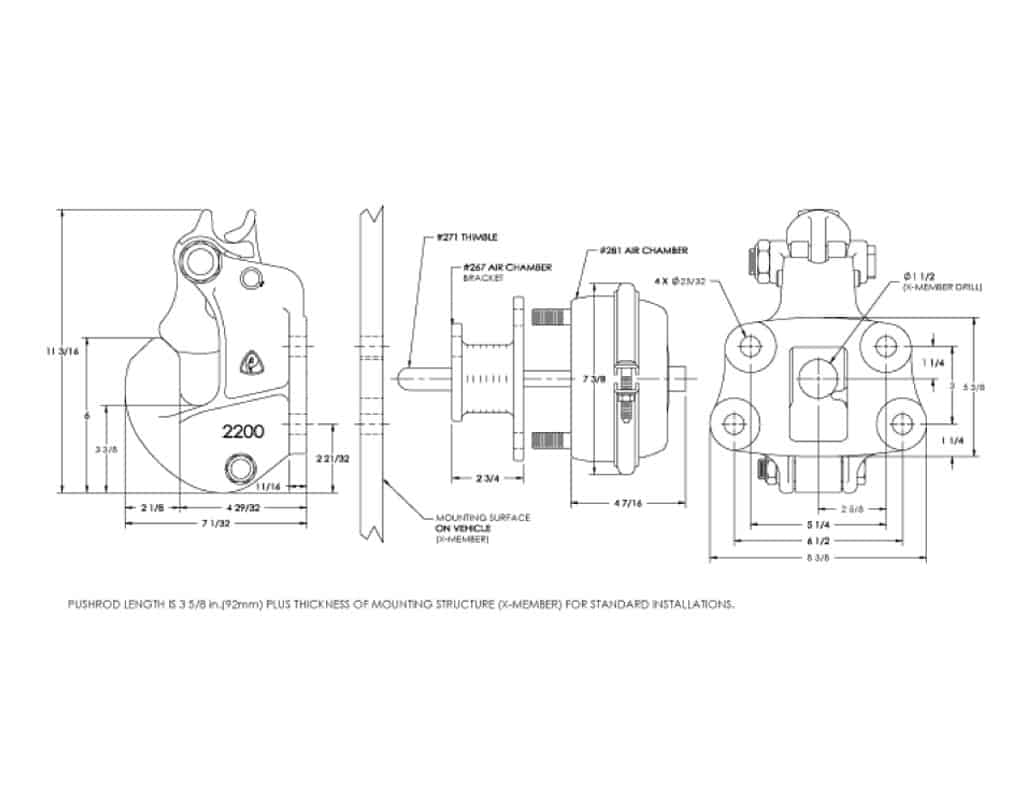

- Dimensions: 7-1/32" X 8-3/8" X 11-3/16"
- Heavy Duty
- Premalloy
Available Models:
| Model # | Part # | Description |
| 2200 | 10004688 | 2200 Coupling & 271 Thimble |
| 2200NS | 10000261 | 2200 Coupling, without the 279 Shoe |
| 2200L | 10004699 | 2200 Coupling with 2075K Low Profile Lever Kit installed |
| 2200A | 10004690 | 2200 Coupling, 501 Bolt Kit, 281 Air Chamber, 267 Air Chamber Adapter Bracket, 271 Thimble |
| 2200A-2 | 10004691 | Same as 2200A, without the 501 Bolt Kit |
| 2200A-267H | 10004692 | Same as 2200A, with 267H Air Chamber Adapter Bracket instead of 267 |
Part # 10004688, 10000261, 10004699, 10004690, 10004691, 10004692
Accessories & Replacement Parts:
| Model # | Part # | Description |
| 271 | 10000107 | Thimble |
| 279 | 10000312 | Shoe |
| 2075K | 10000244 | Low Profile Lever Kit |
| 501 | 10000149 | Bolt Kit |
| 281 | 10000116 | Air Chamber, Type 24 |
| 282 | 10000122 | Air Chamber, Type 30 |
| 267 | 10000098 | Air Chamber Adapter Bracket (2 3/4 in. overall length) |
| 267F | 10000101 | Air Chamber Adapter Bracket (4 5/8 in. overall length) |
| 267H | 10000102 | Air Chamber Adapter Bracket (3/4 in. overall length) |
| 2000PK | 10000737 | Parts Kit |
| 2000PK-EL | 10000739 | Parts Kit, Extended Life (EL) |
| 2200PK-ELL | 10000262 | Parts Kit, Extended Life (EL), Low Profile Lever |
| 438 | 10004779 | Drawbar Guide Set (Left & Right Sides Incl.) |
| 438L | 10000131 | Drawbar Guide, Left Side Only |
| 438R | 10000133 | Drawbar Guide, Right Side Only |
| 14014 | 10000062 | Wear Gage |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
About Premiere's Couplings:
Whatever Your Application, Selecting The Proper Equipment For The Job Is Very Important. Proper Selection Along With Regular Inspection And Maintenance Will Help Keep Operating Costs Minimal While Providing Long Life To Each Component. To Determine Wear Limits, Premier Created Wear Gages That Help Judge The Useful Life Of Couplings And Drawbar Eyes. In Accordance With Premier And The Federal Motor Carrier Safety Regulations, These Were Designed To Identify Wear At The Critical Percentages Of 18% And 20%, By Measuring The Cross-section Of Coupling Hooks (Horn) And Drawbar Eye Loops.
Selecting The Right Equipment:
Each Premier Product Undergoes Extensive Design And Testing Prior To Being Introduced. Premier uses The Latest In Computer Aided Design And Analysis Software; As Well As Physical Destructive Tests.
- Determine “Gross Trailer(s) Weight” (GVWR(s) Of Towed Trailers)
- Determine “Tongue Weight Capacity” (Maximum Occurring Tongue Weight)
- Add Margin of Safety (Dependent Upon Your Equipment And Operating Environment)
- Browse Premier Product Catalog (Based on Steps 1 - 3)
*Please Inquire If You Have Any Questions On Any Product! 1 (800) 374-6488, Or Chat With Us!
