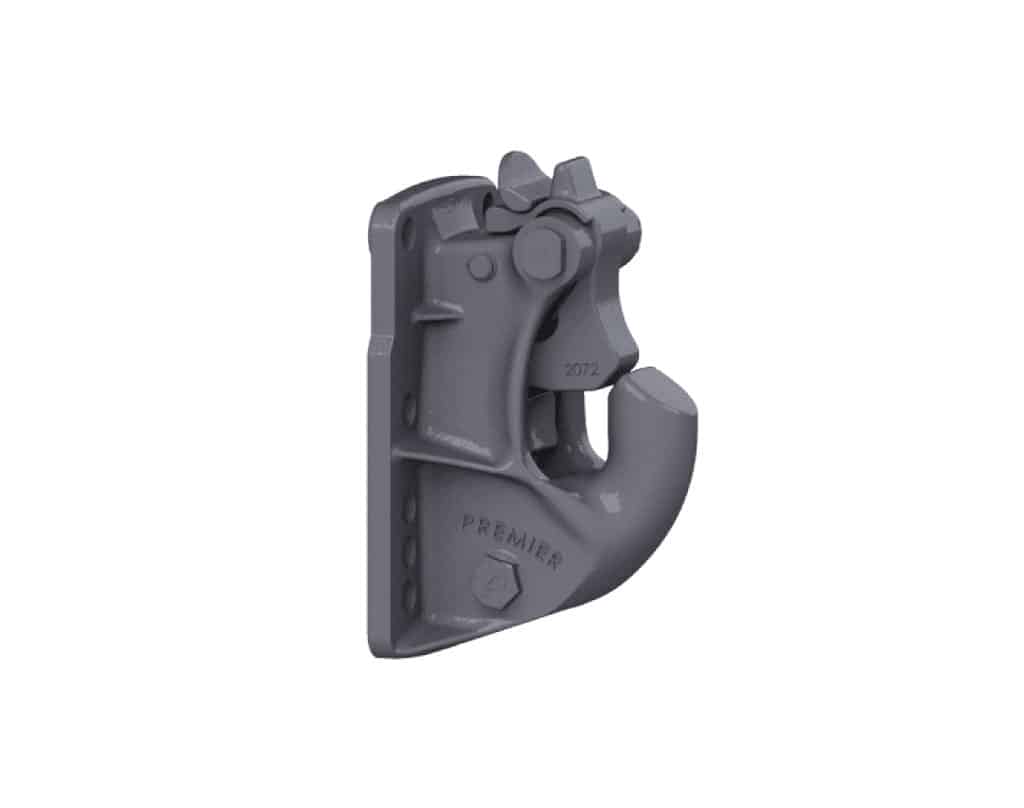

Premier Manufacturing 2400 Slack Reducing Couplings
2400 Couplings
When Installation And Mounting Is Limited By Bolt Hole Pattern, Our 2400 Slack Reducing Coupling May Be The Answer. Although One Of The Bottom Three Mounting Holes Must Be Used, You Choose Which One. This Allows For Maximum Compatibility With Existing Mounting Patterns. The 2400 Is Available With Our Extended Life (El) Latch Option. Engineered Latch Lubrication Points Deliver Lubricant Directly To The Pivot Points Resulting In Smoother And More Consistent Latch Performance. Popular With Pup And Dumps And Tanker Applications, All 2000 Series Couplings Can Be Operated With Or Without An Air Service Chamber.
- Brand: Premier Manufacturing
- Legacy # 2400, 2400NS, 2400A, 2400A-2, 2400AF, 2400EL, 2400ELA, 2400A-467H

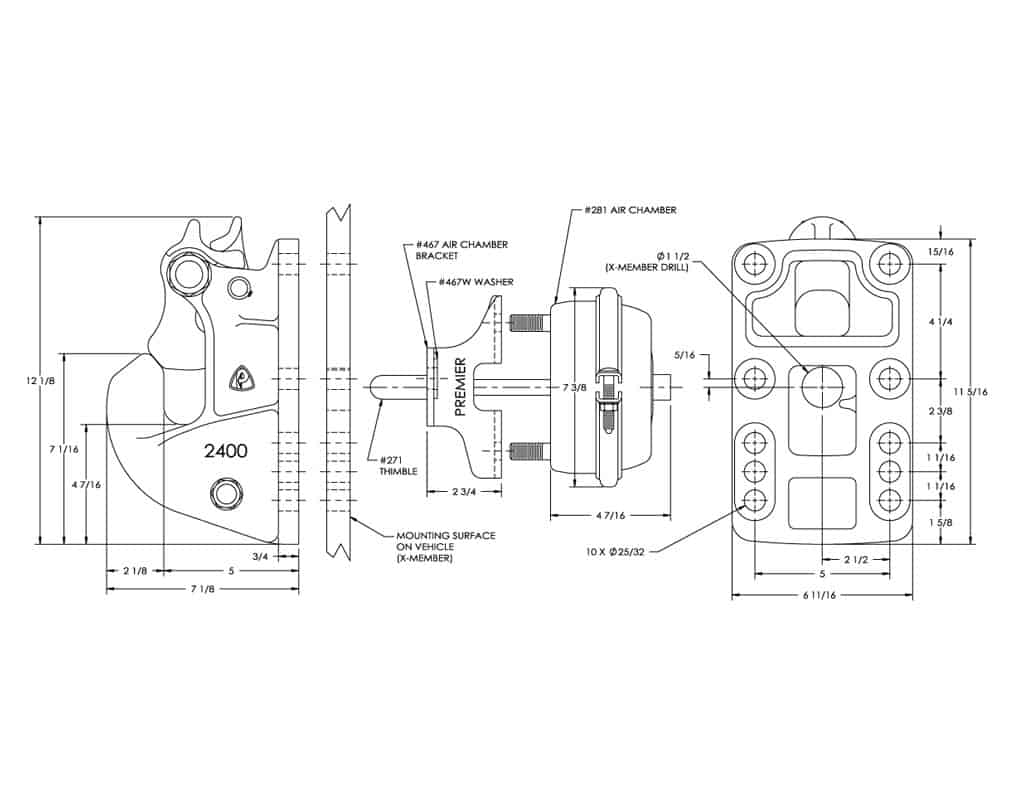

- Dimensions: 6-31/32" X 7-7/8" X 11-1/4"
- Heavy Duty
- Premalloy, Extended Life, Slack Reducing
Available Models:
| Model # | Part # | Description | |
| 2400 | 10004713 | 2400 Coupling & 271 Thimble | |
| 2400NS | 10000288 | 2400 Coupling, without the 279 Shoe | |
| 2400A | 10004715 | 2400 Coupling, 508 Bolt Kit, 281 Air Chamber, 467 Air Chamber Adapter Bracket, 271 Thimble | |
| 2400A-2 | 10004716 | Same as 2400A, without the 508 Bolt Kit | |
| 2400AF | 10004718 | Same as 2400A, with a 467F instead of a 467 Air Chamber Adapter Bracket | |
| 2400EL | 10004719 | 2400 Coupling with Extended Life (EL) latch direct-inject lubrication ports | |
| 2400ELA | 10004721 | 2400EL Coupling, 508 Bolt Kit, 281 Air Chamber, 467 Air Chamber Adapter Bracket, 271 Thimble | |
| 2400A-467H | 10004717 | Same as 2400A, with a 467H instead of a 467 Air Chamber Adapter Bracket |
Part # 10004713, 10000288, 10004715, 10004716, 10004718, 10004719, 10004721, 10004717
Accessories & Replacement Parts:
| Model # | Part # | Description |
| 271 | 10000107 | Thimble |
| 279 | 10000312 | Shoe |
| 508 | 10000155 | Bolt Kit |
| 281 | 10000116 | Air Chamber, Type 24 |
| 282 | 10000122 | Air Chamber, Type 30 |
| 467 | 10000135 | Air Chamber Adapter Bracket (2 3/4 in. overall length) |
| 467F | 10000138 | Air Chamber Adapter Bracket (5 1/2 in. overall length) |
| 467H | 10000140 | Air Chamber Adapter Bracket (3/4 in. overall length) |
| 2000PK | 10000737 | Parts Kit |
| 2000PK-EL | 10000739 | Parts Kit, Extended Life (EL) |
| 438 | 10004779 | Drawbar Guide Set (Left & Right Sides Incl.) |
| 438L | 10000131 | Drawbar Guide, Left Side Only |
| 438R | 10000133 | Drawbar Guide, Right Side Only |
| 14014 | 10000062 | Wear Gage |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
About Premiere's Couplings:
Whatever Your Application, Selecting The Proper Equipment For The Job Is Very Important. Proper Selection Along With Regular Inspection And Maintenance Will Help Keep Operating Costs Minimal While Providing Long Life To Each Component. To Determine Wear Limits, Premier Created Wear Gages That Help Judge The Useful Life Of Couplings And Drawbar Eyes. In Accordance With Premier And The Federal Motor Carrier Safety Regulations, These Were Designed To Identify Wear At The Critical Percentages Of 18% And 20%, By Measuring The Cross-section Of Coupling Hooks (Horn) And Drawbar Eye Loops.
Selecting The Right Equipment:
Each Premier Product Undergoes Extensive Design And Testing Prior To Being Introduced. Premier uses The Latest In Computer Aided Design And Analysis Software; As Well As Physical Destructive Tests.
- Determine “Gross Trailer(s) Weight” (GVWR(s) Of Towed Trailers)
- Determine “Tongue Weight Capacity” (Maximum Occurring Tongue Weight)
- Add Margin of Safety (Dependent Upon Your Equipment And Operating Environment)
- Browse Premier Product Catalog (Based on Steps 1 - 3)
*Please Inquire If You Have Any Questions On Any Product! 1 (800) 374-6488, Or Chat With Us!
