Premier 267 Air Chamber Brackets
Brand: Premier Manufacturing
Category: Truck Air Chamber Brackets
Product Overview

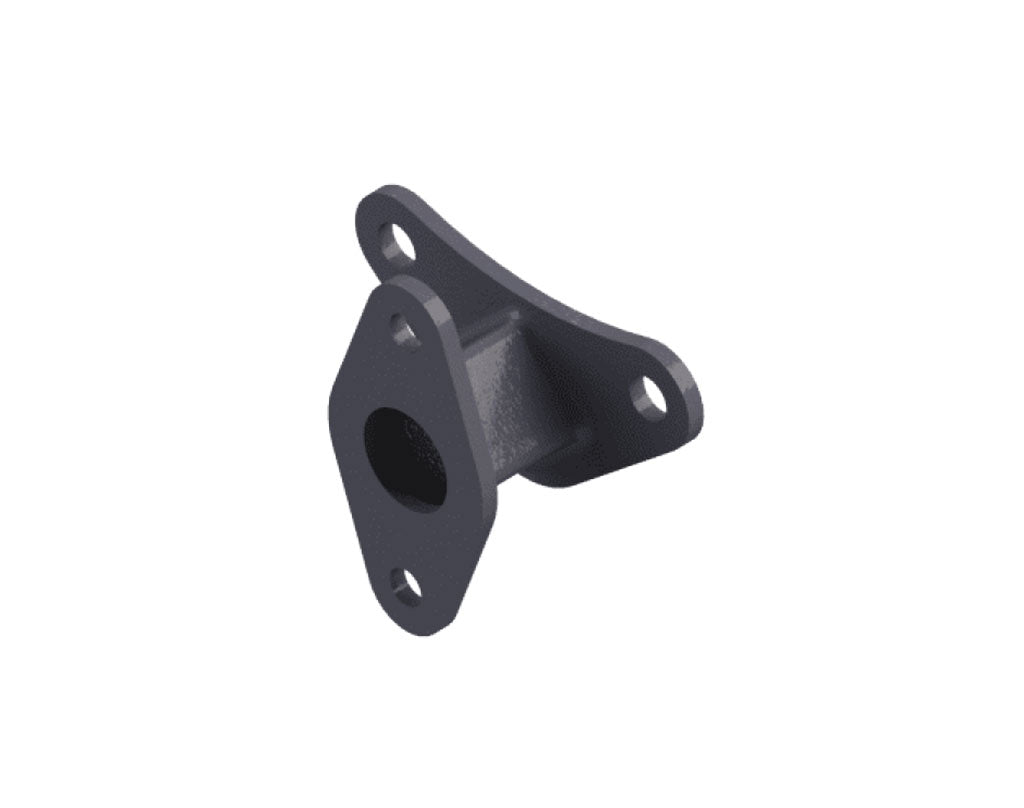

Premier’s 267 Air Chamber Brackets are designed for use with 100, 270, 2200, and 820EL Slack Reducing Couplings. The standard model (#267) is complemented by two non-standard variants (#267F and #267H), offering flexibility for different mounting structure requirements.
Optional accessories are available to simplify installation—check the Optional Accessories tab for details.
Available Models
| Model # | Part # | Description | Compatible With |
|---|---|---|---|
| 267 | 10000098 | Air Chamber Bracket (Standard) | 100, 270, 2200, 820EL |
| 267F | 10000101 | Air Chamber Bracket (Long) | 100, 270, 2200 |
| 267H | 10000102 | Air Chamber Bracket (Short) | 100, 270, 2200 |
Bracket Dimensions & Weights
| Model # | Length | Unit Weight |
|---|---|---|
| 267 | 2 ¾ in. (70 mm) | 2.80 lbs. |
| 267F | 4 5/8 in. (117 mm) | 3.70 lbs. |
| 267H | ¾ in. (19 mm) | 2.60 lbs. |
Selecting the Right Equipment
Premier rigorously tests each product with advanced CAD analysis and physical testing before release. When selecting air chamber brackets:
-
Determine Gross Trailer Weight (GVWR)
-
Determine Tongue Weight Capacity
-
Add a Margin of Safety
-
Browse the Premier Product Catalog to match your specs
