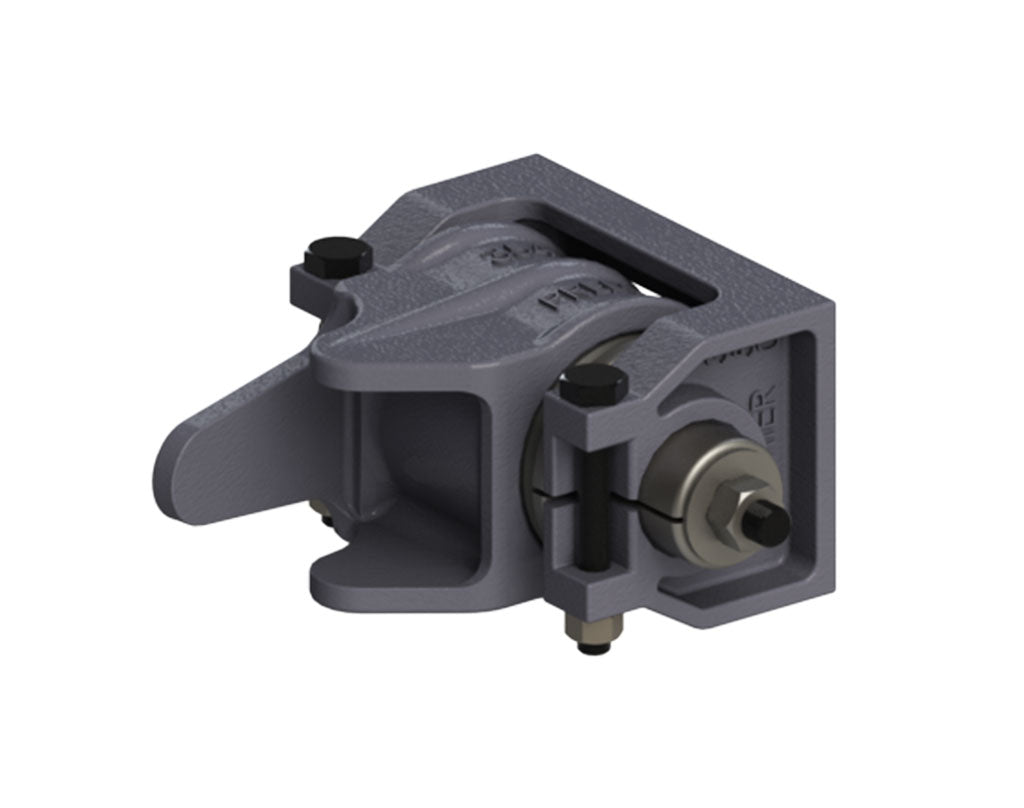

Premier Manufacturing 320 & 320A Hinge Assemblies
The 320 and 320A Hinge Assemblies from Premier Manufacturing are available with either rubber or poly bushings. Each assembly is sold as a pair of hinges only. These hinges are designed for 3-inch (76 mm) standard channel or square tubing.
Brand: Premier Manufacturing
Legacy #: 320 & 320A

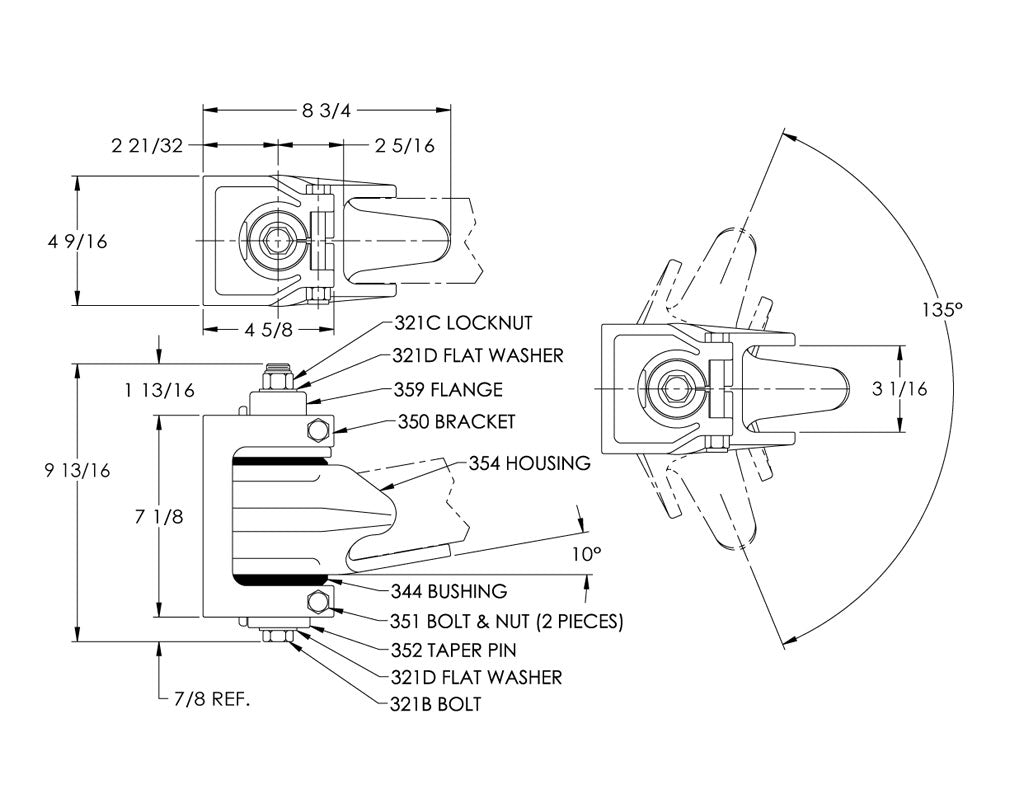

Dimensions: See diagram photo
Models Available:
| Model # | Part # | Description | Parts Included (per hinge) |
|---|---|---|---|
| 320 | 10000941 | Pair of Hinges, Rubber Bushings | 321B Bolt, 321C Locknut, 321D Flat Washer (2), 344 Bushing, 350 Bracket, 351 Bolt/Nut (2), 352 Taper Pin, 354 Housing, 359 Flange |
| 320A | 10000944 | Pair of Hinges, Poly Bushings | 321B Bolt, 321C Locknut, 321D Flat Washer (2), 344A Bushing, 350 Bracket, 351 Bolt/Nut (2), 352 Taper Pin, 354 Housing, 359 Flange |
Specifications:
-
Max Gross Trailer Weight (Pair): 100,000 lbs. (45,359 kg)
-
Unit Weight (Pair): 51.2 lbs. (23.2 kg)
Replacement Part Specifications:
| Model # | Inside Diameter | Outside Diameter | Length |
|---|---|---|---|
| 344 | Tapered Bore | 3 1/2 in. | 4 1/2 in. |
| 344A | Tapered Bore | 3 1/2 in. | 4 1/2 in. |
About Hinge Assemblies:
Premier Manufacturing is the only company in the industry to offer adjustable hinge assemblies. These heavy-duty hinges are engineered with no metal-to-metal contact, riding entirely on bushings for enhanced durability. Some models support up to 150,000 lbs., making them among the toughest on the market.
Optional Accessories:
-
344 Rubber Bushing
-
344A Polyurethane Bushing
Selecting the Right Equipment:
-
Determine gross trailer weight (GVWR) of towed trailers
-
Determine maximum tongue weight
-
Add a margin of safety based on operating conditions
-
Browse the Premier product catalog accordingly
