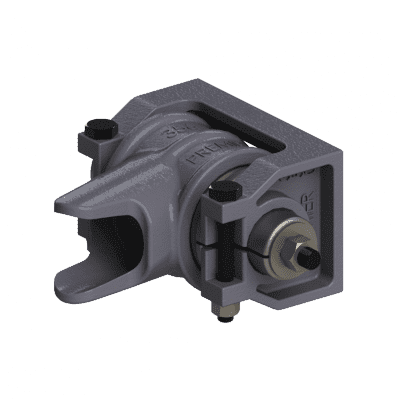

Premier Manufacturing 330 & 330A Hinge Assemblies
Heavy-Duty Truck Hinges for 2-1/2” Round Tubing
Brand: Premier Manufacturing
Category: Hinge Assemblies
Product Overview
The Premier 330 and 330A hinge assemblies are built for strength, reliability, and durability. Designed to fit 2-1/2 inch round tubing, these heavy-duty hinges support up to 100,000 lbs. gross trailer weight (per pair) and eliminate metal-on-metal wear by riding fully on rubber or polyurethane bushings.
Key Features
-
For 2.5" (64 mm) round tubing
-
100,000 lbs. max trailer weight (pair)
-
Rubber or polyurethane bushing options
-
Premier's exclusive adjustable hinge design
-
Industry-leading wear resistance and strength
Model & Part Numbers
| Model # | Part # | Description | Bushing Type |
|---|---|---|---|
| 330 | 10000948 | Pair Hinges, Rubber Bushings | Rubber |
| 330A | 10000950 | Pair Hinges, Poly Bushings | Polyurethane |

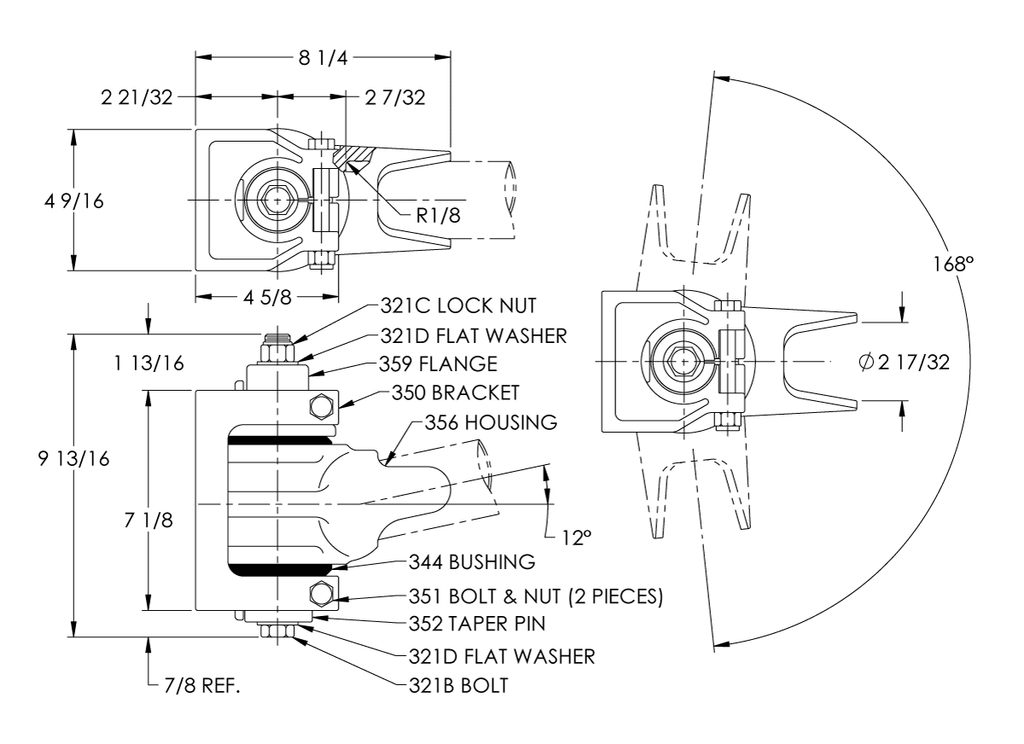

Parts Included per Hinge
-
321B Bolt
-
321C Locknut
-
321D Flat Washers (2)
-
344 or 344A Bushing
-
350 Bracket
-
351 Bolt/Nut (2)
-
352 Taper Pin
-
356 Housing
-
359 Flange
Optional Accessories
-
344 Rubber Bushing
-
344A Polyurethane Bushing
Why Choose Premier Hinges?
Premier Manufacturing is the only company offering adjustable hinge assemblies in the industry. With heavy-duty designs and no metal-to-metal contact, these hinges are ideal for severe-duty trucking applications. Built to last, they are rigorously tested through both digital simulations and real-world destructive testing.
Equipment Selection Guidelines
-
Determine your gross trailer weight (GVWR of all towed units)
-
Measure your maximum tongue weight
-
Add a margin of safety based on usage and environment
-
Browse the Premier catalog using your application needs
