Description

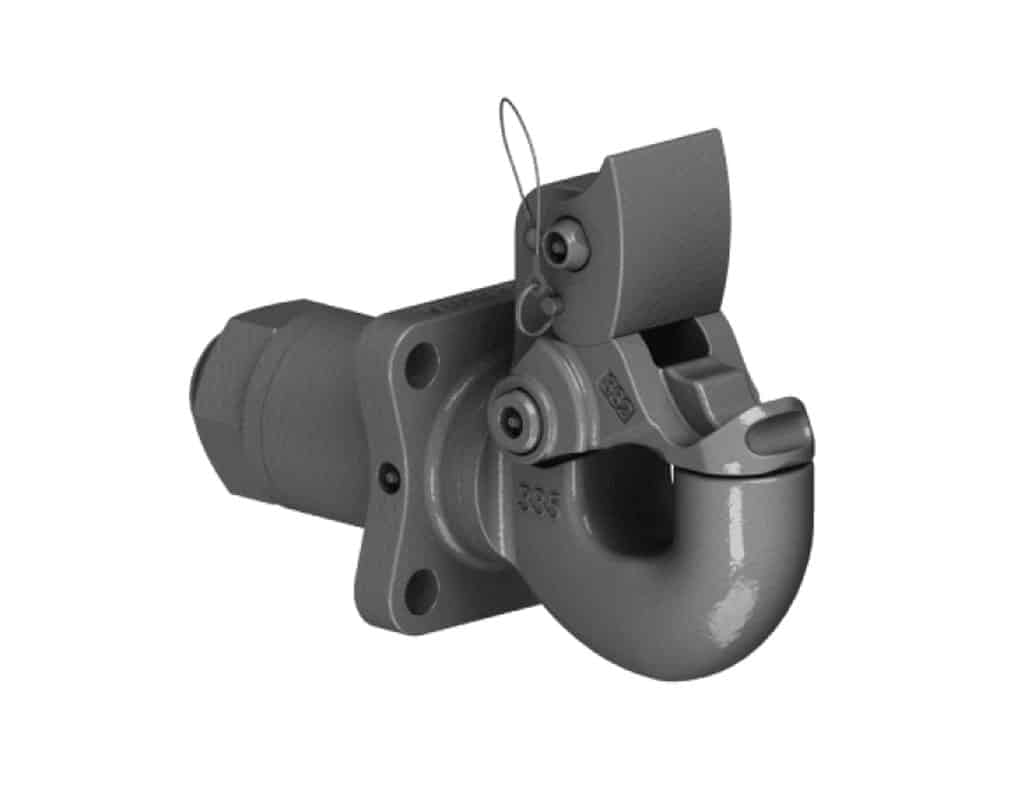

Premier Manufacturing 335NTEL Heavy Duty Swivel Coupling
335NTEL Swivel Coupling
Our 335NTEL Is The Rhino Of Swivel Couplings. With An Unsurpassed GTW Capacity Of 110,000 Lbs., It Was Primarily Designed For The High Demands Of Sugar Cane Applications. A Unique Latch Delivers The Easiest-To-Use One-Handed Operation In The Industry. Polymer Washers Seal And Reduce Wear At The Swivel Points To Ensure A Smooth And Long-Lasting Assembly That Requires Little Maintenance. Our Extended Life (El) Lubrication Points Deliver Lubricant Precisely Where It Is Needed To Facilitate Easy Maintenance And Smooth Latch Operation. When The Going Gets Tough In Your Swivel Coupling Needs, Take Charge With The Rhino.
- Brand: Premier Manufacturing
- Legacy # 335NTEL

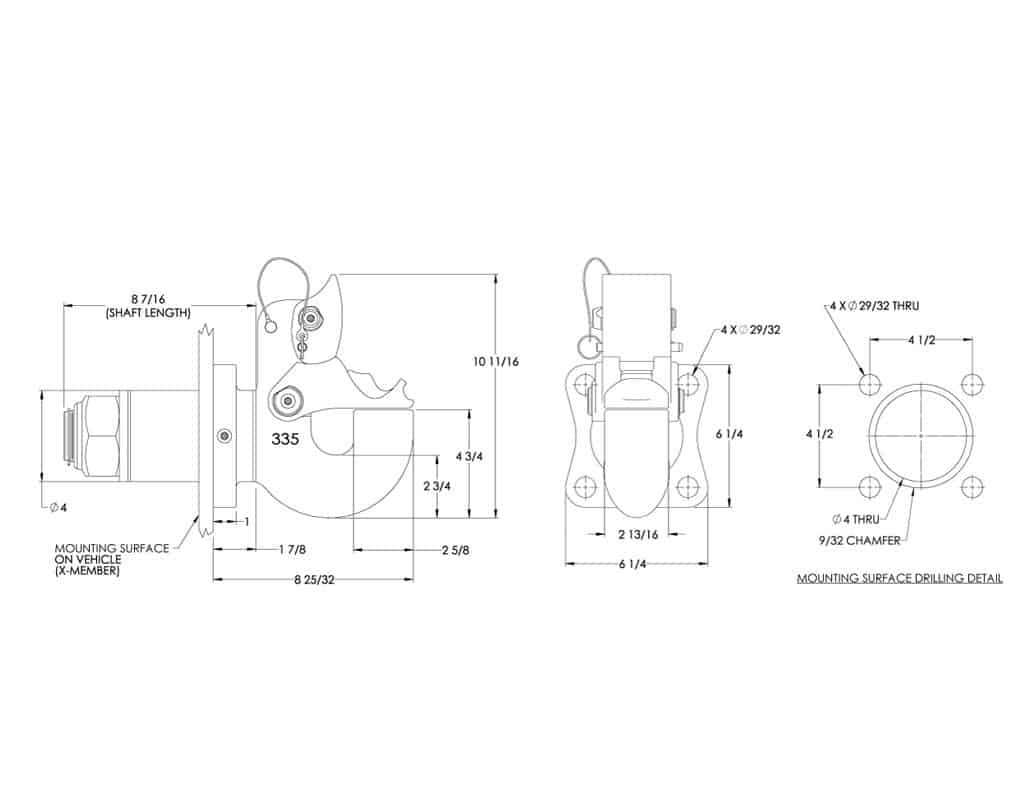

- Dimensions: 8-25/32" X 6-1/4" X 10-11/16"
- Heavy Duty
- Extended Life
Available Models:
- 335NTEL: Part # 10001166 335NTEL Coupling
Accessories & Replacement Parts:
| Model # | Part# | Description |
| 332PK-EL | 10001153 | Parts Kit, for 335NTEL Latch |
| 333PK-EL | 10001159 | Parts Kit, for 335NTEL Pawl |
| 14020 | 10000068 | Wear Gage |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
About Premiere's Couplings:
Whatever Your Application, Selecting The Proper Equipment For The Job Is Very Important. Proper Selection Along With Regular Inspection And Maintenance Will Help Keep Operating Costs Minimal While Providing Long Life To Each Component. To Determine Wear Limits, Premier Created Wear Gages That Help Judge The Useful Life Of Couplings And Drawbar Eyes. In Accordance With Premier And The Federal Motor Carrier Safety Regulations, These Were Designed To Identify Wear At The Critical Percentages Of 18% And 20%, By Measuring The Cross-section Of Coupling Hooks (Horn) And Drawbar Eye Loops.
Selecting The Right Equipment:
Each Premier Product Undergoes Extensive Design And Testing Prior To Being Introduced. Premier uses The Latest In Computer Aided Design And Analysis Software; As Well As Physical Destructive Tests.
- Determine “Gross Trailer(s) Weight” (GVWR(s) Of Towed Trailers)
- Determine “Tongue Weight Capacity” (Maximum Occurring Tongue Weight)
- Add Margin of Safety (Dependent Upon Your Equipment And Operating Environment)
- Browse Premier Product Catalog (Based on Steps 1 - 3)
*Please Inquire If You Have Any Questions On Any Product! 1 (800) 374-6488, Or Chat With Us!
