Premier Manufacturing 407SE Swivel Drawbar Eye | # 10000828

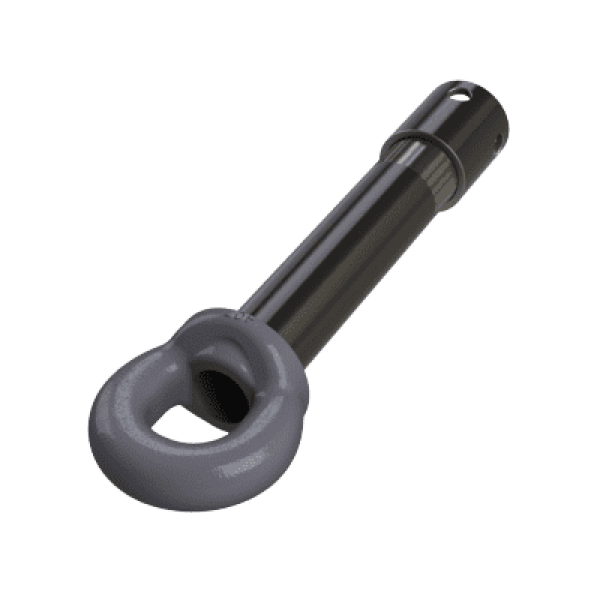

Premier Manufacturing 407SE Swivel Drawbar Eye
Part # 10000828
Brand: Premier Manufacturing

Specifications:

• Designed for use only with Premier front end housings

• Bushings are not included

• Maximum gross trailer weight: 100,000 lbs (45,359 kg)

• Maximum tongue weight: 3,900 lbs (1,769 kg)

• Inside diameter: 2 3/8 in (60 mm)

• Unit weight: 19.5 lbs (8.8 kg)

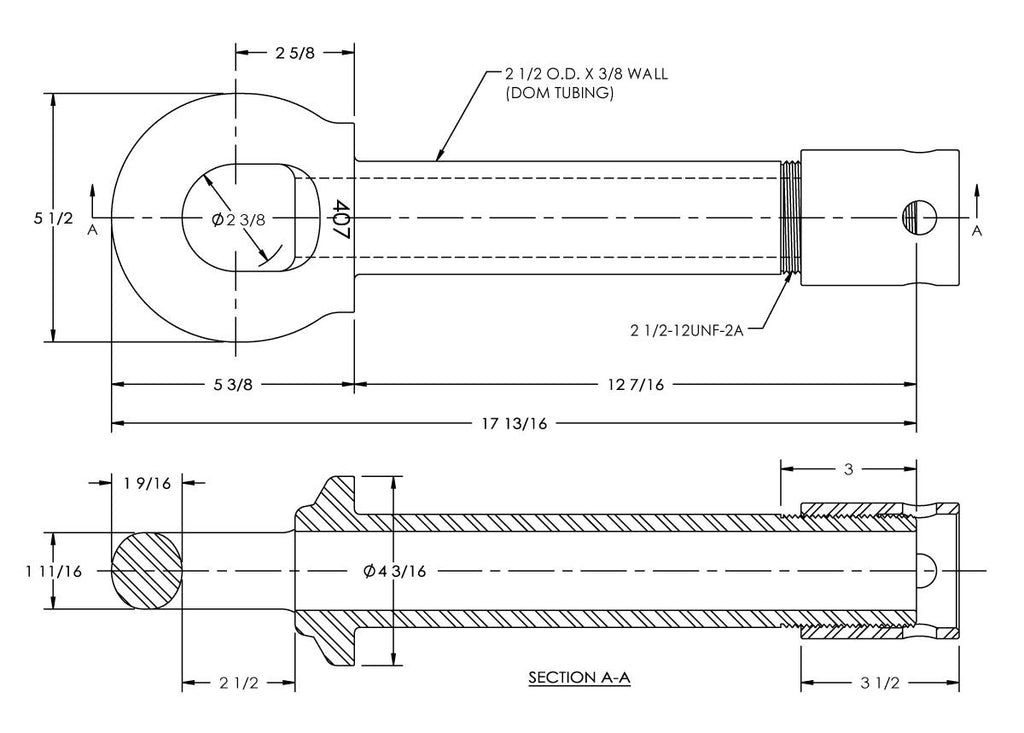

• Drawbar eye dimensions:

  • Inside Diameter: 2 3/8"

  • Shaft: 2 1/2" OD x 3/8" wall DOM x 12 7/16" length

Parts Included:

• 407SE Drawbar Eye

• 421 Sleeve Nut
  *Note: Nut must be secured by the installer (e.g., wire tied)

Selecting the Right Equipment:
Premier products undergo extensive design and physical testing, using advanced CAD and analysis software.

Steps:

1. Determine Gross Trailer Weight (GVWR of towed trailers)

2. Determine Tongue Weight Capacity (maximum occurring tongue weight)

3. Add a margin of safety based on equipment and environment

4. Browse the Premier product catalog based on the above criteria
