Description

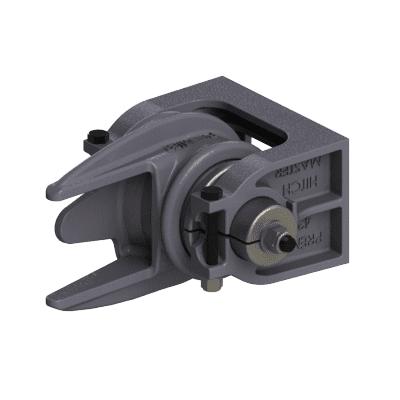

Premier Manufacturing 430 & 430A Hinge Assemblies
The 430 and 430A Hinge Assemblies from Premier Manufacturing are engineered for maximum durability and strength, designed for 2" x 4" (52 mm x 102 mm) rectangular tubing or channel. Available with either rubber or poly bushings, these assemblies are sold as pairs and include all necessary hardware.
Brand: Premier Manufacturing
Max Gross Trailer Weight (Pair): 150,000 lbs. (68,039 kg)
Unit Weight (Pair): 85 lbs. (38.6 kg)
Models Available:
| Model # | Part # | Description | Included Per Hinge |
|---|---|---|---|

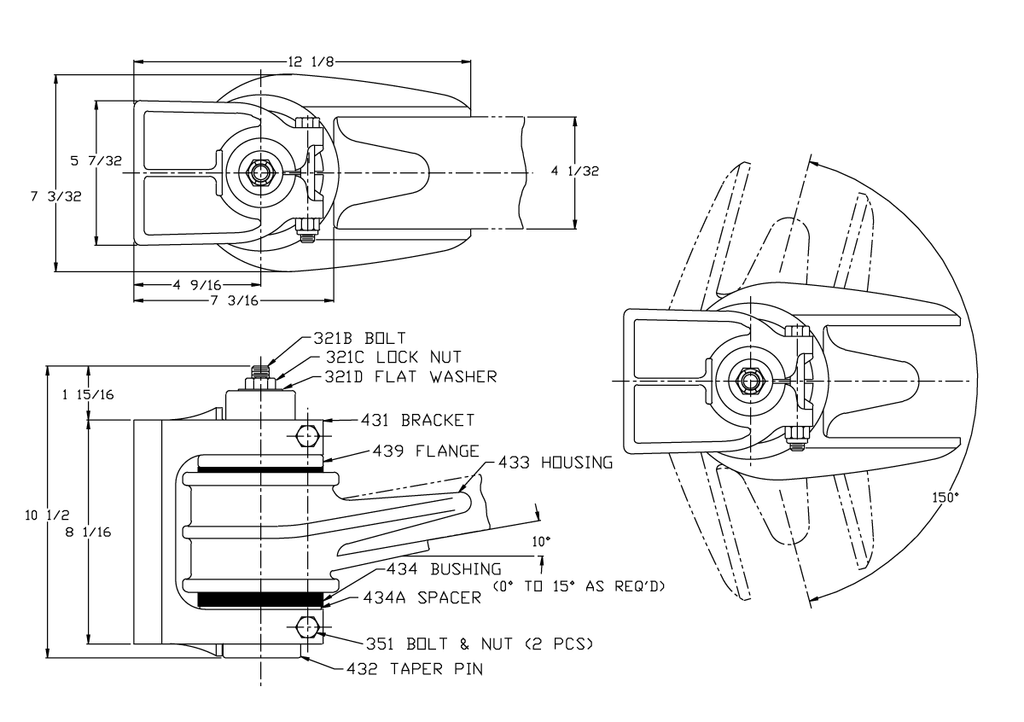

| 430 | 10000970 | Pair with Rubber Bushings | 321B Bolt, 321C Nut, 321D Flat Washer (2), 351 Bolt/Nut (2), 431 Bracket, 432 Taper Pin, 433 Housing, 434A Spacer, 434 Bushing, 439 Flange |
| 430A | 10000973 | Pair with Poly Bushings | 321B Bolt, 321C Nut, 321D Flat Washer (2), 351 Bolt/Nut (2), 431 Bracket, 432 Taper Pin, 433 Housing, 434A Spacer, 434B Bushing, 439 Flange |
About Premier Hinge Assemblies:
Premier Manufacturing is the only company in the industry offering adjustable hinge assemblies. These heavy-duty hinges are engineered with no metal-to-metal contact, riding entirely on bushings for enhanced durability and extended performance. With a capacity rating up to 150,000 lbs., they are among the strongest hinge assemblies on the market.
Optional Accessories:
-
344 Rubber Bushing
-
344A Polyurethane Bushing
Selecting the Right Equipment:
-
Determine the gross trailer weight (GVWR) of towed trailers
-
Determine maximum tongue weight
-
Add a margin of safety based on your equipment and operating conditions
-
Review the Premier product catalog to select appropriate models
