Description

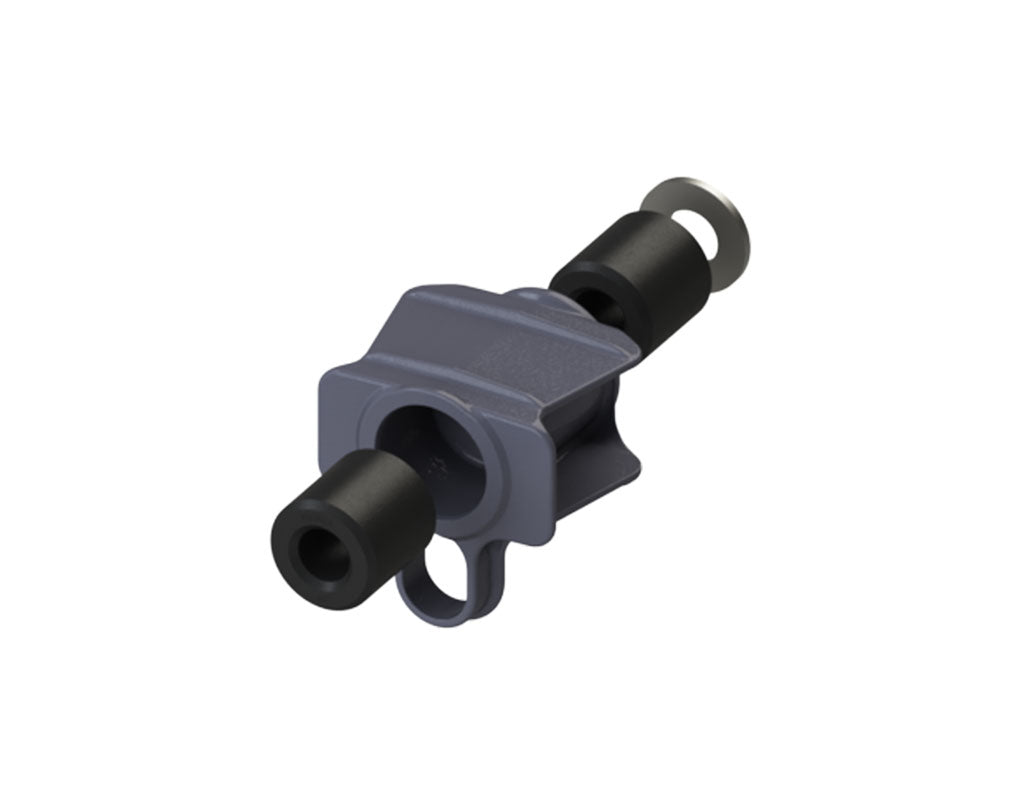

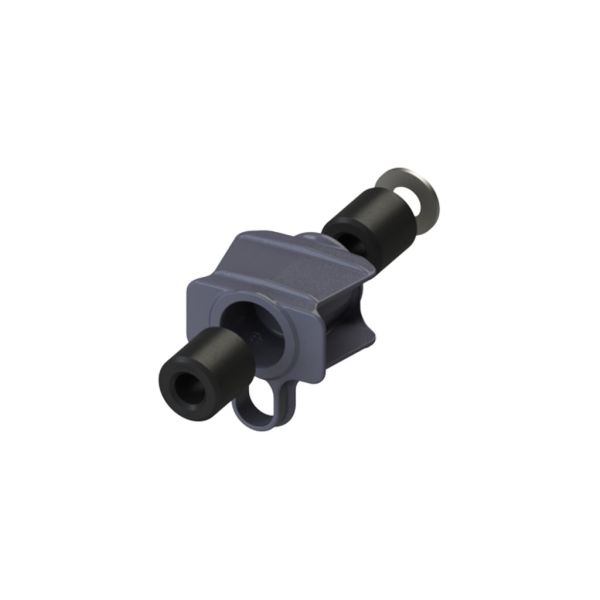

Premier Manufacturing 435 & 435A Front End Housings
For Use with Premier 207S, 307S & 405S Swivel Drawbar Eyes
Brand: Premier Manufacturing
Category: Front End Housings
Legacy Model Numbers: 435, 435A
Compatible Drawbar Eyes: 207S, 307S, 405S
Material Fitment: Accepts 2" x 4" rectangular tubing or standard channel
Dimensions: 9-3/4" L x 9-3/8" W x 9-15/16" H
Unit Weight: 36.7 lbs. (16.6 kg)
Model & Part Details
| Model # | Part # | Description | Compatible With |
|---|---|---|---|
| 435 | 10000861 | Housing with Rubber Bushings | 207S, 307S, 405S |
| 435A | 10000863 | Housing with Polyurethane Bushings | 207S, 307S, 405S |

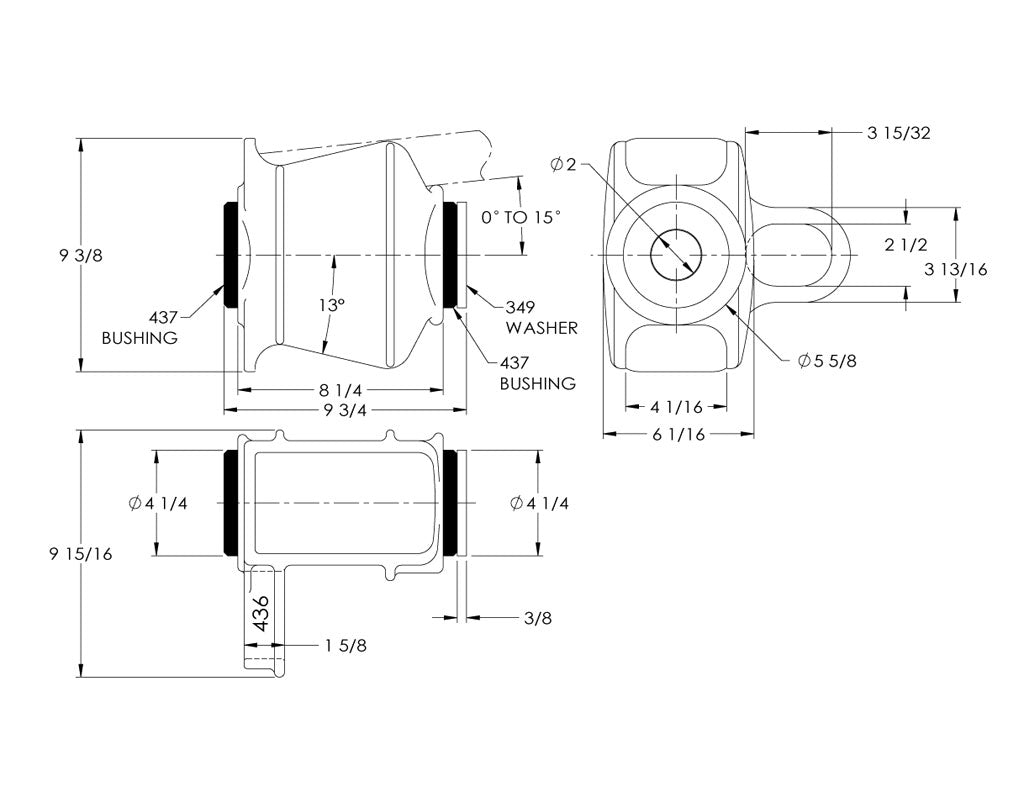

Replacement Bushing Specs
| Part # | Type | Inside Ø | Outside Ø | Length |
|---|---|---|---|---|
| 349 | Washer | 2-1/16" | 4-1/4" | – |
| 437 | Rubber Bushing | 2" | 4-1/4" | 4-1/2" |
| 437A | Poly Bushing | 2" | 4-1/4" | 4-1/2" |
Why Choose Premier Front End Housings?
Premier’s 435 Series Front End Housings are engineered for long life and superior performance. With thicker housing walls, central washers, and no internal weld splatter, these housings enhance bushing performance and extend service life. Available in both rubber and poly bushing models to suit your application.
-
Built for heavy-duty trailer and truck connections
-
Improved articulation & shock absorption
-
Designed to match Premier Swivel Eyes
-
Inspected individually for unmatched quality assurance
Compatible Drawbar Eye Models
-
207S Swivel Drawbar Eye
-
307S Swivel Drawbar Eye
-
405S Swivel Drawbar Eye
How to Select the Right Equipment
-
Determine Gross Trailer Weight (GVWR)
-
Determine Maximum Tongue Weight
-
Add appropriate margin of safety
-
Use Premier’s catalog to identify the best match
