Premier Manufacturing 440 & 440A Hinge Assemblies
Heavy-Duty Truck Hinge Assemblies
Brand: Premier Manufacturing
Category: Hinge Assemblies
Overview
Premier’s 440 and 440A hinge assemblies are built to handle high-load applications with ease. Designed for 3-inch standard channel or square tubing, these hinges support a maximum gross trailer weight of 100,000 lbs. per pair. They offer smooth, durable performance with either rubber or polyurethane bushings—providing flexibility based on your operational needs.
Product Highlights
-
Fits 3" (76 mm) square or channel tubing
-
100,000 lbs. max gross trailer weight (per pair)
-
Adjustable hinge design ensures precision fit
-
No metal-on-metal contact; rides on bushings
-
Sold as pairs or individual left/right units
Model & Part Numbers
| Model # | Part # | Description | Bushing Type |
|---|---|---|---|
| 440 | 10000986 | Pair with Rubber Bushings | Rubber |
| 440A | 10000988 | Pair with Polyurethane Bushings | Polyurethane |
| 440L | 10000990 | Left with Rubber Bushing | Rubber |
| 440R | 10000992 | Right with Rubber Bushing | Rubber |
| 440LA | 10000991 | Left with Polyurethane Bushing | Polyurethane |
| 440RA | 10000993 | Right with Polyurethane Bushing | Polyurethane |

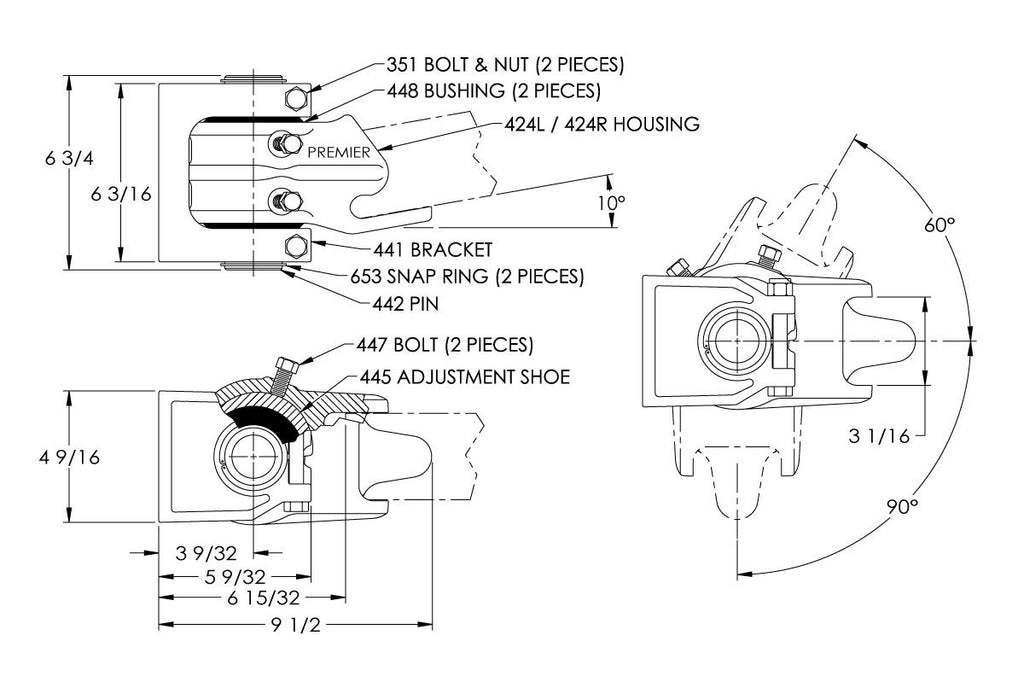

Included with Each Hinge
-
351 Bolt/Nut (x2)
-
424L/424R Housing
-
441 Bracket
-
442 Pin
-
445 Adjustable Shoe
-
447 Bolt (x2)
-
448 or 448A Bushing
-
653 Snap Ring (x2)
Optional Accessories
-
448 Rubber Bushing
-
448A Polyurethane Bushing
Why Choose Premier Hinges?
Premier Manufacturing is the industry leader in adjustable hinge assemblies, offering rugged, high-capacity solutions with no metal-to-metal wear. Each product is tested using advanced CAD simulations and real-world destructive testing, ensuring reliability under heavy-duty use.
