Description
Premier Manufacturing 455 & 455A Hinge Assemblies
Heavy-Duty Truck Hinge Assemblies
Brand: Premier Manufacturing
Category: Hinge Assemblies & Mounting Components
Overview

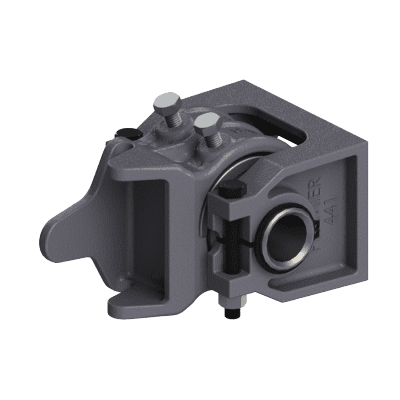

Premier's 455 and 455A Hinge Assemblies are rugged, high-performance components engineered for mounting on 2" x 4" rectangular tubing or channel. These adjustable hinges are designed with durability in mind, offering maximum trailer weight ratings of up to 100,000 lbs. per pair. Choose from rubber or polyurethane bushings based on your fleet’s specific needs.
Key Features
-
Designed for 2" x 4" tubing or channel
-
Rated for up to 100,000 lbs. (per pair)
-
No metal-to-metal contact – rides on the bushing
-
Adjustable design for precise alignment
-
Sold in pairs or individual sides (left/right)
Models & Part Numbers
| Model # | Part # | Description | Bushing Type |
|---|---|---|---|
| 455 | 10001016 | Pair – Hinges with Rubber Bushings | Rubber |
| 455A | 10001017 | Pair – Hinges with Poly Bushings | Polyurethane |
| 455L | 10001018 | Left Side – Rubber Bushing | Rubber |
| 455R | 10001020 | Right Side – Rubber Bushing | Rubber |
| 455LA | 10001019 | Left Side – Poly Bushing | Polyurethane |
| 455RA | 10001021 | Right Side – Poly Bushing | Polyurethane |

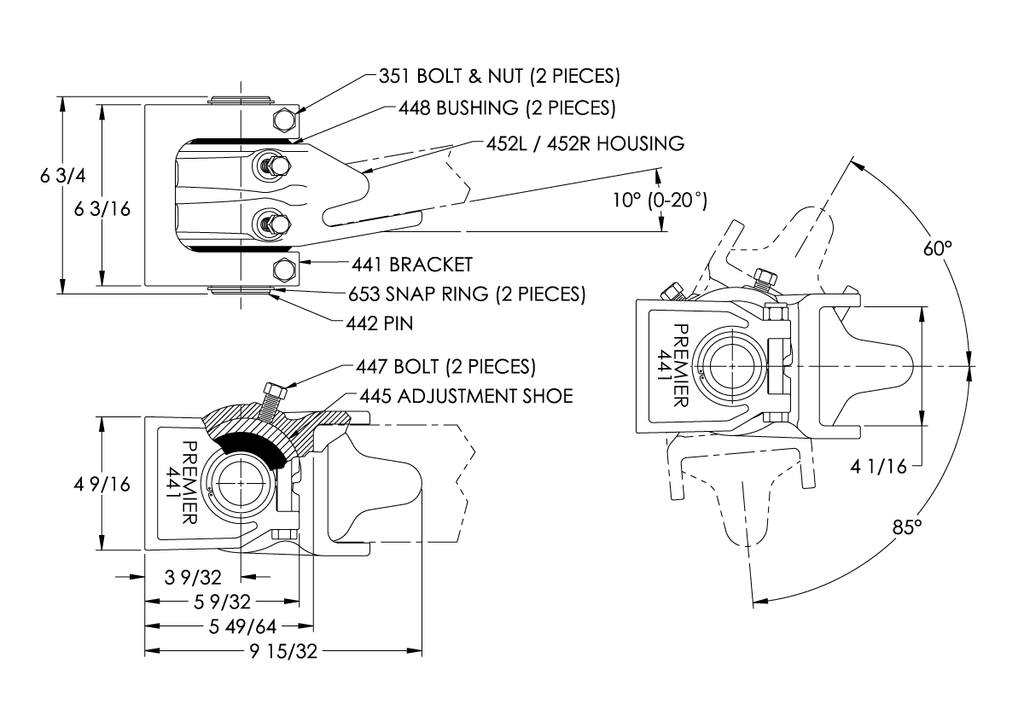

Each Assembly Includes:
-
351 Bolt/Nut (x2)
-
452L/452R Housing
-
441 Bracket
-
442 Pin
-
445 Adjustable Shoe
-
447 Bolt (x2)
-
448 or 448A Bushing
-
653 Snap Ring (x2)
Optional Accessories
-
448: Rubber Bushing (replacement)
-
448A: Polyurethane Bushing (replacement)
Why Choose Premier Hinges?
Premier is the only manufacturer offering adjustable hinge assemblies that eliminate metal-on-metal wear. These bushings absorb shock and provide a long-lasting connection, making them ideal for heavy-duty applications in harsh environments.
