Premier Manufacturing 536 Front End Housing

SKU: 10000871

Front End Housing Model: 536A Model
Price:
Sale price$390.77

Description

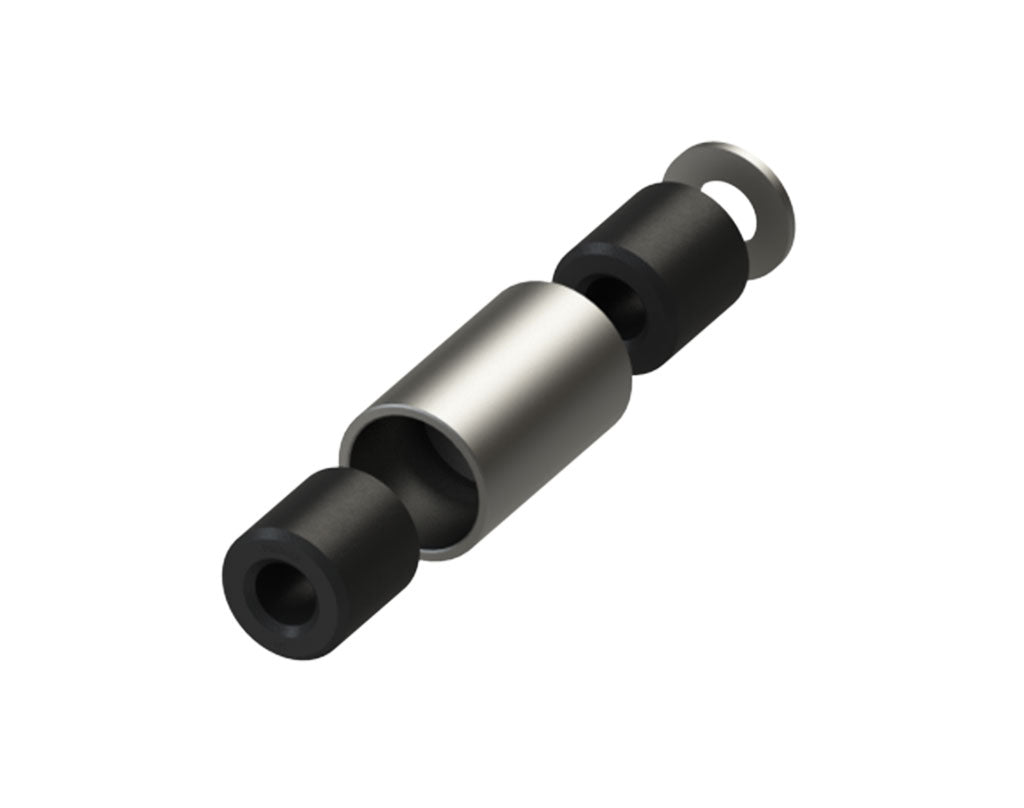

Premier Manufacturing 536 Front End Housing

For Use with Premier Swivel Drawbar Eyes: 207S, 307S, 405S, 207K, and 307K


Brand: Premier Manufacturing
Model: 536 Series
Legacy #: 536
Application: Truck & Trailer Front End Housing
Material Fitment: 2" x 4" rectangular tubing or standard channel

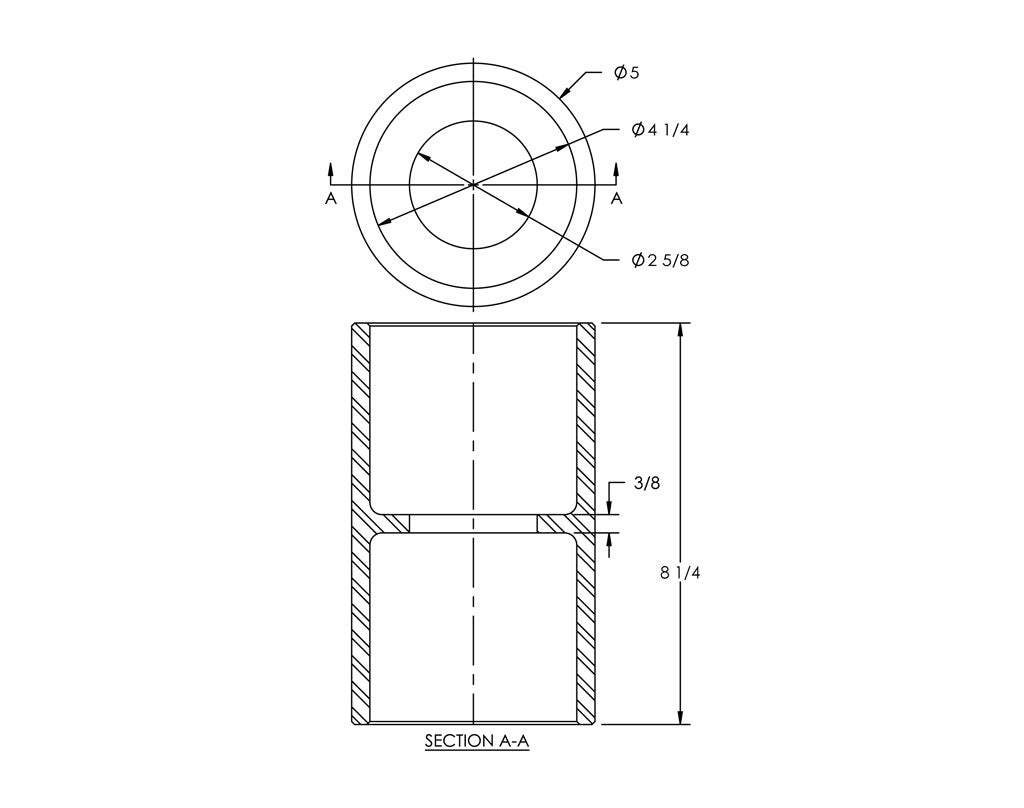

Dimensions: See diagram (varies by model)
Housing Inside Ø: 2 5/8"
Housing Outside Ø: 5"
Housing Length: 8 1/4"


Available Models

Model # Part # Description Compatible Drawbar Eyes
536A 10000871 Includes rubber bushings (437) 207S, 307S, 405S
536B 10000873 Includes poly bushings (437A) 207S, 307S, 405S

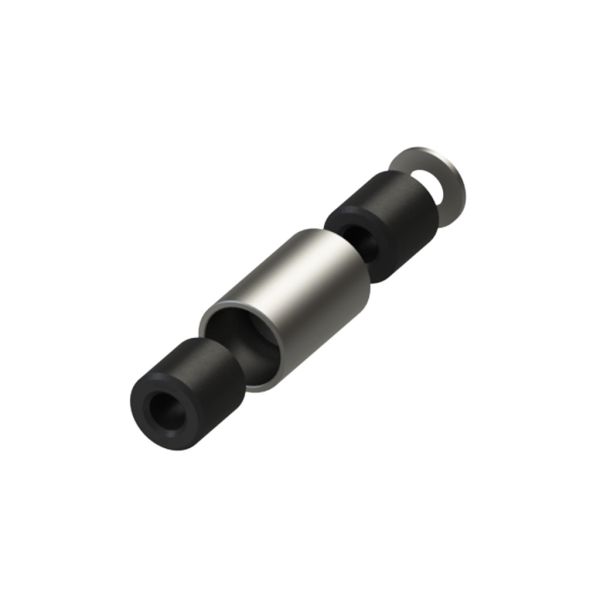

536BK 10000874 Includes poly bushings (437AK) and updated washer (349SEK) 207K, 307K

Replacement Parts Specifications

Part # Type Inside Ø Outside Ø Length
349 Washer 2-1/16" 4-1/4"
349SEK Washer (K-series) 2-1/16" 5"
437 Rubber Bushing 2" 4-1/4" 4-1/2"
437A Polyurethane Bushing 2" 4-1/4" 4-1/2"
437AK Polyurethane Bushing K 2-1/4" 4-1/4" 4-1/2"

Why Choose Premier Front End Assemblies?

Premier’s 536 series front end housings are engineered to deliver superior performance in high-load towing conditions. With thicker housing walls, precision washers, and a clean internal finish (no weld splatter), these housings offer exceptional longevity and bushing performance. Choose rubber or poly bushings to match your application and operating conditions.

  • Heavy-duty cast housing construction

  • Enhanced articulation and shock absorption

  • Engineered for optimal drawbar eye performance

  • Individually inspected for quality


Compatible Drawbar Eyes

  • 207S / 207K

  • 307S / 307K

  • 405S


Selecting the Right Equipment

  1. Determine Gross Trailer Weight (GVWR)

  2. Assess Maximum Tongue Weight

  3. Add a margin of safety based on your equipment and operating environment

  4. Browse the Premier Product Catalog to match specifications


📞 Have questions?
Call us at 1 (800) 374-6488 or use our live chat to speak with a parts specialist.
