Description

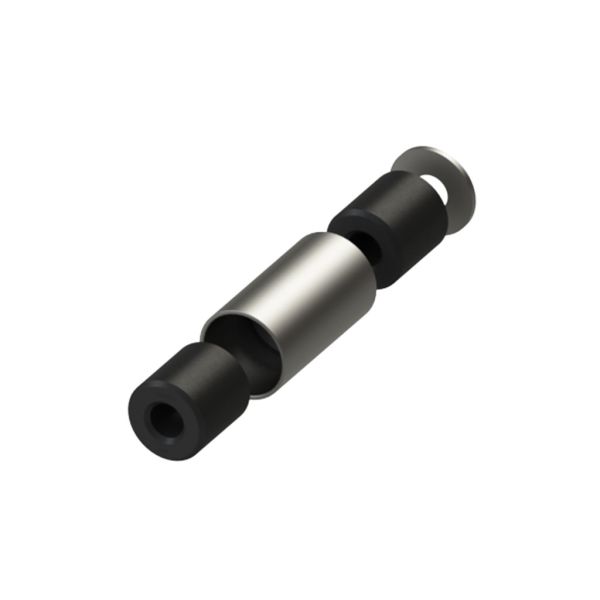

Premier Manufacturing 546 Front End Housing
Designed for Swivel Drawbar Eyes: 207SE, 307SE, 405SE, and 407SE
Brand: Premier Manufacturing
Model: 546 Series
Legacy #: 546
Application: Front End Housing for Truck and Trailer Use
Tubing Compatibility: Accepts 2" x 4" rectangular tubing or standard channel
Housing Dimensions:
-
Inside Diameter: 2 5/8"
-
Outside Diameter: 5 1/4"
-
Length: 9 5/8"
Available Models
| Model # | Part # | Parts Included | Compatible Drawbar Eyes |
|---|---|---|---|
| 546A | 10000879 | 546 Housing, 349SE Washer, P205 Rubber Bushings (2) | 207SE, 307SE, 405SE |
| 546B | 10000881 | 546 Housing, 349SE Washer, P205A Poly Bushings (2) | 207SE, 307SE, 405SE |
| 546R | 10000882 | 546 Housing, 407W Washer, R205 Rubber Bushings (2) | 407SE |
Replacement Parts Specifications
| Part # | Inside Ø | Outside Ø | Length |
|---|---|---|---|
| 349SE | 2" | 5" | – |
| 407W | 2 33/64" | 5" | – |
| P205 | 2" | 4 3/4" | 5 3/16" |
| P205A | 2" | 4 3/4" | 5 3/16" |
| R205 | 2 1/2" | 4 3/4" | 5 3/16" |
Why Choose Premier Front End Housings?
Premier’s 546 series is built tough for demanding commercial applications. With thicker housing walls, no internal weld spatter, and robust center washers, these housings deliver long-lasting bushing performance and superior articulation.
-
Cast steel housing built for durability
-
Rubber or poly bushing options available
-
Improved articulation & shock absorption
-
Individually inspected for quality assurance
Compatible Drawbar Eyes
-
207SE Swivel Drawbar Eye
-
307SE Swivel Drawbar Eye
-
405SE Swivel Drawbar Eye
-
407SE Swivel Drawbar Eye
Selecting the Right Equipment
Before ordering, be sure to:
-
Determine the GVWR of towed trailers
-
Confirm maximum tongue weight capacity
-
Add a safety margin based on your operation
-
Browse the Premier product catalog to finalize your selection
