Description
Premier Manufacturing 580J Heavy Duty Coupling

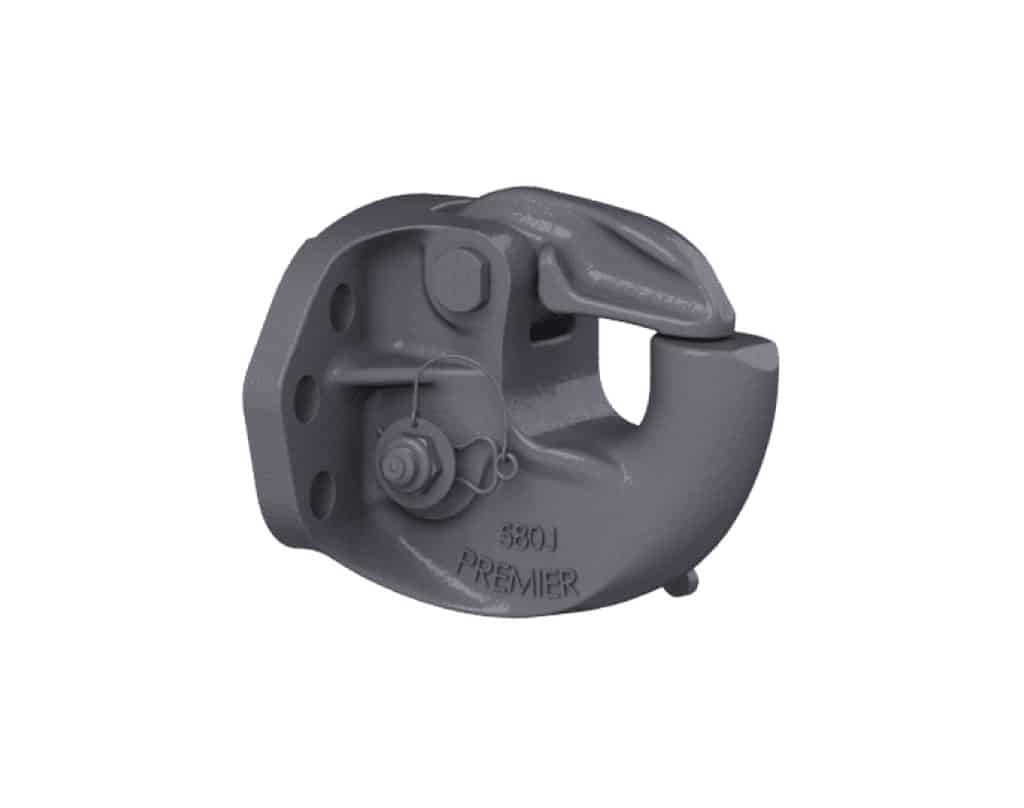

580J Coupling
With The Same Rugged Features Of Our 580, The 580J Coupling Offers A Higher Load Rating And Slightly Different Mounting Pattern. Protected Internal Latch Parts, Easy Lubrication, And Ease Of Operation Are Trademarks Of Premier’s 80-Series Couplings. With A Maximum Gross Trailer Weight Of 90,000 Lbs., You’ll Be Sure To Find Many Uses For This Exceptional Product.
- Brand: Premier Manufacturing
- Legacy # 580J

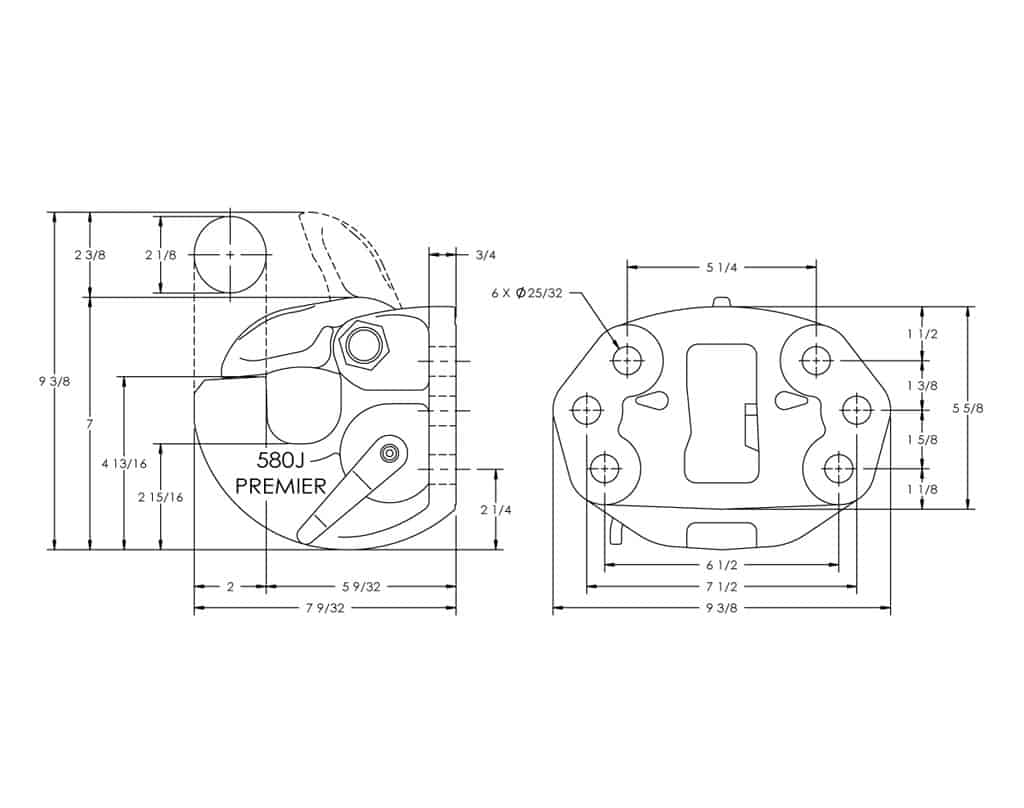

- Dimensions: 7-9/32" X 9-3/8" X 9-3/8"
- Heavy Duty
- Premalloy
Available Models:
- 580J: Part # 10001196 580J Coupling
Accessories & Replacement Parts:
| Model # | Part # | Description |
| 503 | 10000151 | Bolt Kit |
| 580RK | 10001199 | Repair Kit |
| 14011 | 10000059 | Wear Gage |
| 14014 | 10000062 | Wear Gage |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
About Premiere's Couplings:
Whatever Your Application, Selecting The Proper Equipment For The Job Is Very Important. Proper Selection Along With Regular Inspection And Maintenance Will Help Keep Operating Costs Minimal While Providing Long Life To Each Component. To Determine Wear Limits, Premier Created Wear Gages That Help Judge The Useful Life Of Couplings And Drawbar Eyes. In Accordance With Premier And The Federal Motor Carrier Safety Regulations, These Were Designed To Identify Wear At The Critical Percentages Of 18% And 20%, By Measuring The Cross-section Of Coupling Hooks (Horn) And Drawbar Eye Loops.
Selecting The Right Equipment:
Each Premier Product Undergoes Extensive Design And Testing Prior To Being Introduced. Premier uses The Latest In Computer Aided Design And Analysis Software; As Well As Physical Destructive Tests.
- Determine “Gross Trailer(s) Weight” (GVWR(s) Of Towed Trailers)
- Determine “Tongue Weight Capacity” (Maximum Occurring Tongue Weight)
- Add Margin of Safety (Dependent Upon Your Equipment And Operating Environment)
- Browse Premier Product Catalog (Based on Steps 1 - 3)
*Please Inquire If You Have Any Questions On Any Product! 1 (800) 374-6488, Or Chat With Us!
