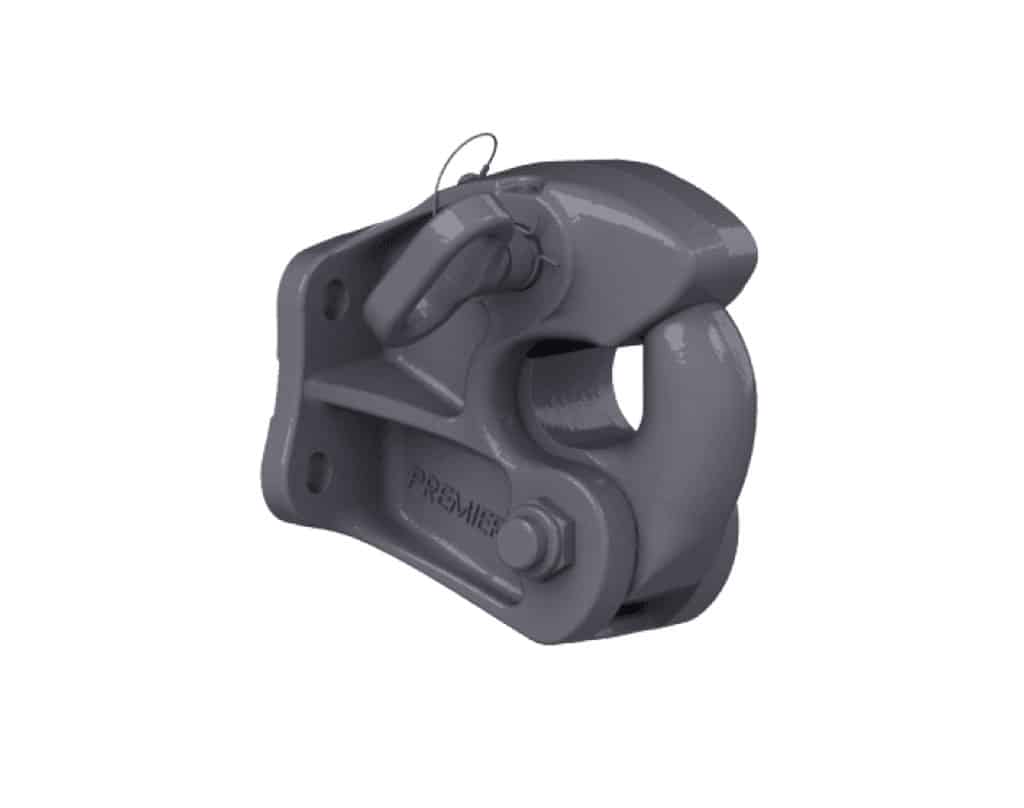

Premier Manufacturing 690L Heavy Duty Coupling
690L Coupling
Premier’s 690L Drop Pintle Coupling Offers Similar Features To Our 590 (Discontinued), But With Higher Load Capacities. The Pintle Hook/Horn Is Made Of Our Exclusive Premalloy For Maximum Wear Resistance. With A Maximum Gross Trailer Weight Of 90,000 Lbs., The 690l Is Perfect For All Of Your Mid-To-Heavy-Duty Applications.
Important Warning: All 294 Bolts Are Considered A Serviceable Part And Cannot Surpass 1-Year Of Use. See Our Installation/Service Tab Below For Additional Information.
- Brand: Premier Manufacturing
- Legacy # 690L

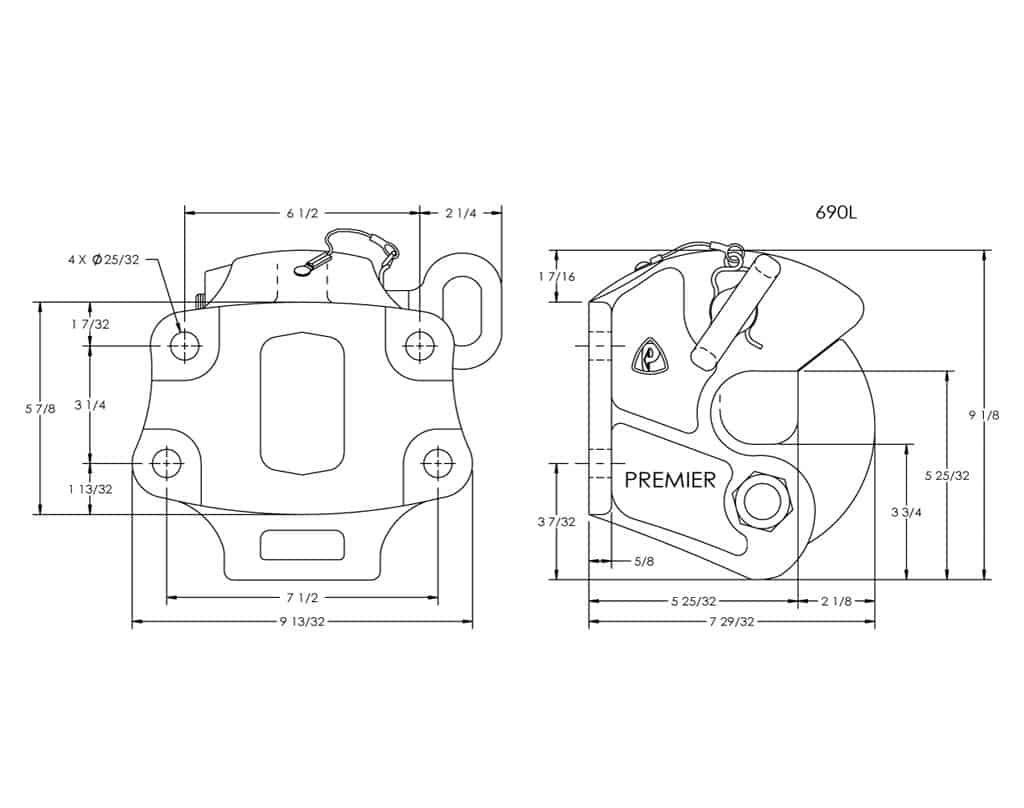

- Dimensions: 7-29/32" X 9-1/8" X 9-13/32"
- Heavy Duty
- Premalloy
Available Models:
- 690L: Part # 10001221 690L Coupling, Left-Side Handle
Accessories & Replacement Parts:
| Model # | Part # | Description |
| 294K | 10001146 | 294 Bolt & 297 Locknut |
| 507 | 10000154 | Bolt Kit |
| 581EF | 10004794 | Clip & Cable (16DS Drive Screw Incl.) |
| 690LRK | 10001223 | Parts Kit |
| 691L | 10004798 | Handle Assembly |
| 14014 | 10000062 | Wear Gage |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
About Premiere's Couplings:
Whatever Your Application, Selecting The Proper Equipment For The Job Is Very Important. Proper Selection Along With Regular Inspection And Maintenance Will Help Keep Operating Costs Minimal While Providing Long Life To Each Component. To Determine Wear Limits, Premier Created Wear Gages That Help Judge The Useful Life Of Couplings And Drawbar Eyes. In Accordance With Premier And The Federal Motor Carrier Safety Regulations, These Were Designed To Identify Wear At The Critical Percentages Of 18% And 20%, By Measuring The Cross-section Of Coupling Hooks (Horn) And Drawbar Eye Loops.
Selecting The Right Equipment:
Each Premier Product Undergoes Extensive Design And Testing Prior To Being Introduced. Premier uses The Latest In Computer Aided Design And Analysis Software; As Well As Physical Destructive Tests.
- Determine “Gross Trailer(s) Weight” (GVWR(s) Of Towed Trailers)
- Determine “Tongue Weight Capacity” (Maximum Occurring Tongue Weight)
- Add Margin of Safety (Dependent Upon Your Equipment And Operating Environment)
- Browse Premier Product Catalog (Based on Steps 1 - 3)
*Please Inquire If You Have Any Questions On Any Product! 1 (800) 374-6488, Or Chat With Us!
