Premier Manufacturing 930A Hinge Assembly

Premier Manufacturing 930A Hinge Assembly
Part # 10001024

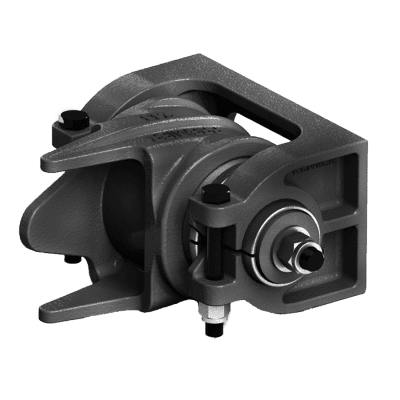

930A Truck Hinge Assembly
Brand: Premier Manufacturing

Specifications:

• Designed for: 2 inch x 4 inch rectangular tubing

• Max. Gross Trailer Weight (PAIR): 150,000 lbs (68,039 kg)

• Unit Weight (PAIR): 59.2 lbs (26.8 kg)

Model Information:

• Model #: 930A

• Description: Pair of Hinges with Poly Bushings

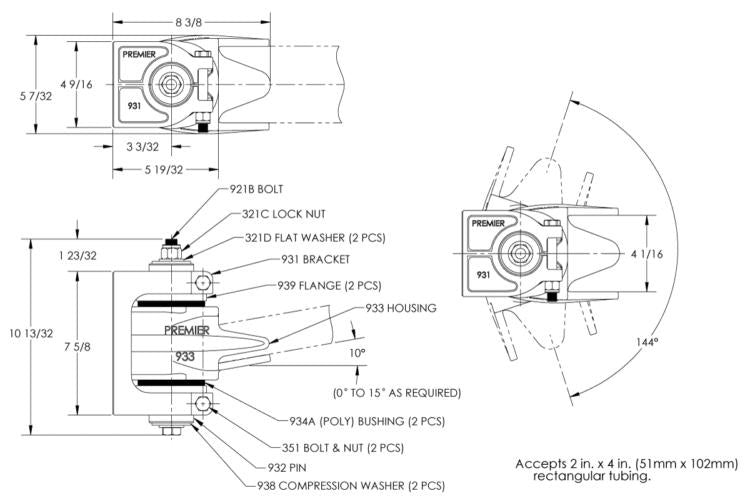

• Included Parts per Hinge:

  • 321C Locknut

  • 321D Flat Washer (2)

  • 351 Bolt/Nut (2)

  • 434A Spacer

  • 921B Bolt

  • 931 Bracket

  • 932 Pin

  • 933 Housing

  • 934A Bushing

  • 938 Elastomer Washer (2)

  • 939 Flange (2)

About Hinge Assemblies:
Premier Manufacturing is the only company in the industry to offer adjustable hinge assemblies. Their heavy-duty hinges feature no metal-to-metal contact and ride entirely on the bushing. With capacity ratings up to 150,000 lbs, these are among the toughest on the market. Order directly from TTP or browse our full range of hinges, eyes, and accessories.

Optional Accessories:

• 934A Polyurethane Bushing

Selecting the Right Equipment:
Premier products undergo extensive design and testing. Selection steps include:

1. Determine gross trailer weight (GVWR)

2. Determine tongue weight capacity

3. Add a safety margin

4. Browse the Premier catalog to find your match
