Premier Manufacturing 956BK Front End Housing
Part #: 10000900
Brand: Premier Manufacturing
Legacy #: 956BK
The 956BK Front End Housing is designed specifically for use with the 307K Swivel Drawbar Eye only. This model comes standard with poly bushings.
If you're looking for a complete solution, consider the 307BK kit, which includes both the 956BK Front End and 307K Drawbar Eye.
Note: The 956BK is designed to be used with hinged front ends only.

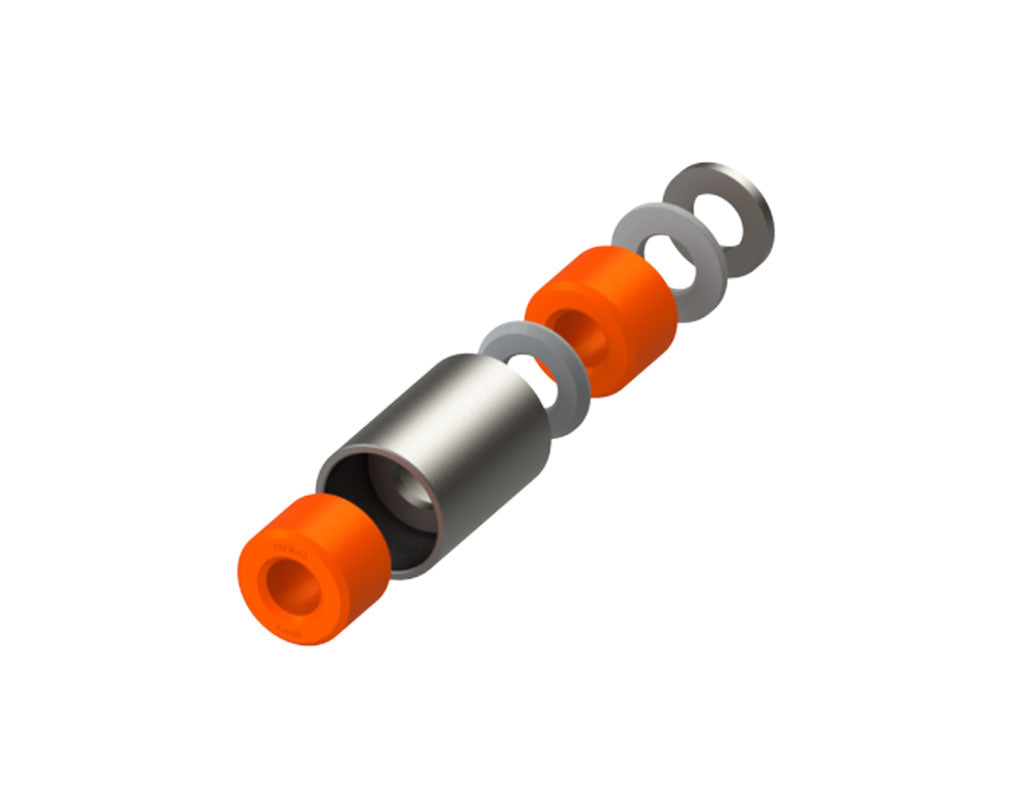

Included Parts:
-
956 Housing
-
948AK Poly Bushings (2)
-
955NK-A Internal Polymer Washer
-
955NK-B External Polymer Washer
-
949W External Washer
Compatible Drawbar Eye: 307K
956BK Housing Specifications:
-
Inside Diameter: 2 5/8 in.
-
Outside Diameter: 5 1/2 in.
-
Length: 7 3/4 in.
-
Wall Thickness: 3/8 in.
-
Unit Weight: 18.7 lbs
Replacement Part - 948AK Specifications:
-
Inside Diameter: 2 1/4 in.
-
Outside Diameter: 4 3/4 in.
-
Length: 3 1/2 in.
About Premier Front End Assemblies:
Premier Manufacturing offers cast and steel housings with thicker walls, robust construction, and smooth interior surfaces that improve bushing longevity. These assemblies provide adjustability, excellent articulation, and shock absorption—extending the life of your connection points.
Compatible Drawbar Eyes:
-
307 Swivel Drawbar Eye
Selecting the Right Equipment:
-
Determine Gross Trailer Weight (GVWR)
-
Determine Tongue Weight Capacity
-
Add margin of safety based on use
-
Browse the Premier product catalog using the criteria above
