Description
Premier Manufacturing Bolt Kits
Part Numbers:
10000149, 10000150, 10000151, 10000152, 10000153, 10000154, 10000155, 10000156, 10000158, 10000438, 10000442, 10000446
Brand: Premier Manufacturing
Overview:

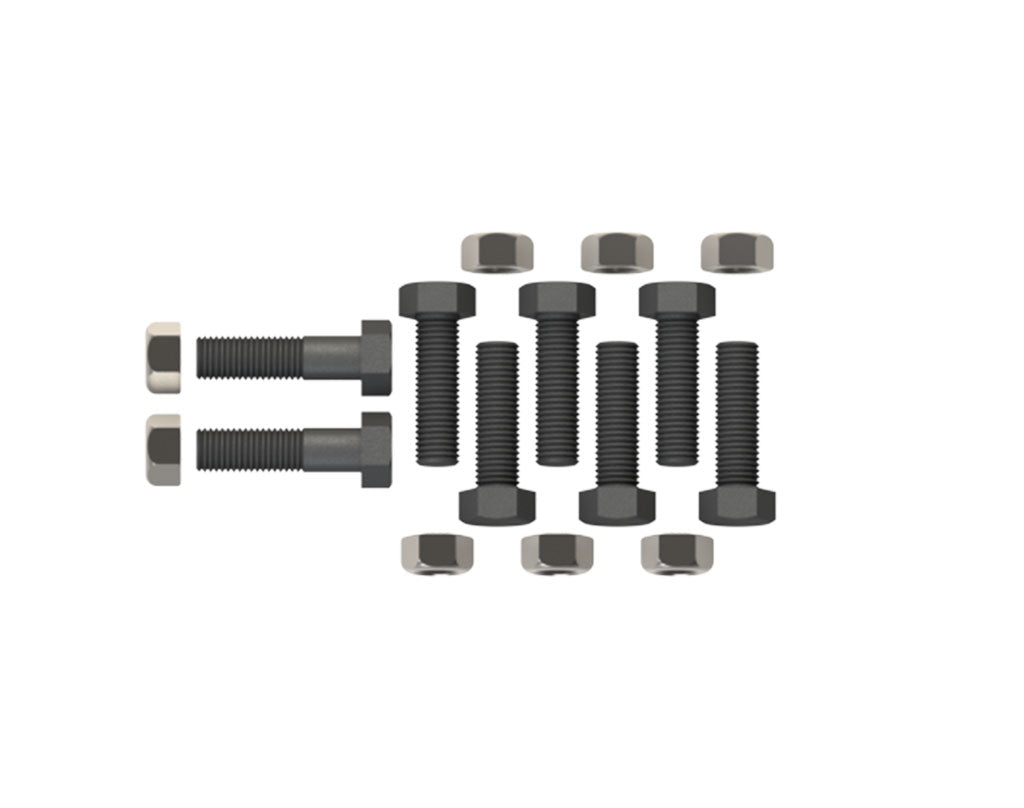

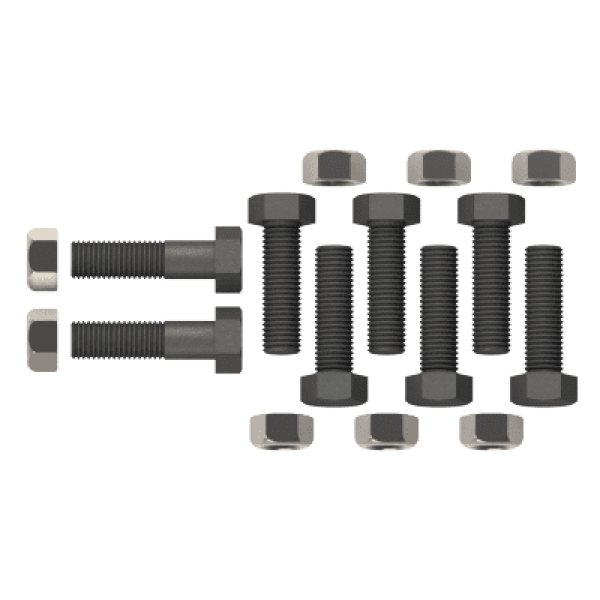

Premier’s individually packaged bolt kits simplify the hardware selection for your coupling or drawbar eye. Most kits use coarse-threaded Grade-8 fasteners and Grade-C crimp-style locknuts for a strong, secure mounting system.
-
Kit 159 uses fine-threaded Grade-8 fasteners with lock washers and standard nuts
-
Kit 511 uses coarse-threaded L9 grade bolts
Model Reference:
| Model # | Part # | For Use With |
|---|---|---|
| 501 | 10000149 | 270, 2200, 100 |
| 502 | 10000150 | 360, 370, 780, 2300, 100-3 |
| 503 | 10000151 | 127, 127F, 370B, 570, 580J, 2300B |
| 504 | 10000152 | 570 |
| 505 | 10000153 | 770 |
| 507 | 10000154 | 200, 200L, 300, 480, 580, 590, 690, 890C, 990 |
| 508 | 10000155 | 1400, 1400H, 470, 470H, 2400, 2400H, 100-4, 100-4H |
| 509 | 10000156 | 820EL |
| 511*** | 10000158 | 2880, 880 |
| 159** | 10000438 | 150, 160, 240 |
| 159HD | 10000442 | 160HD |
| 159HD-L | 10000446 | 160HD |
Specifications & Kit Contents:
| Model # | Kit Includes | Max. Mounting Structure Thickness |
|---|---|---|
| 501 | (2) 2.5", (2) 2.75" bolts, (4) locknuts | 1/2" (13 mm) |
| 502 | (4) 2.5", (2) 2.75" bolts, (6) locknuts | 1/2" (13 mm) |
| 503 | (6) 2.5" bolts, (6) locknuts | 1/2" (13 mm) |
| 504 | (6) 2" bolts, (6) locknuts | 1/2" (13 mm) |
| 505 | (5) 2.5", (2) 2.75" bolts, (7) locknuts | 1/2" (13 mm) |
| 507 | (4) 2.75" bolts, (4) locknuts | 1/2" (13 mm) |
| 508 | (6) 2.5", (2) 2.75" bolts, (8) locknuts | 1/2" (13 mm) |
| 509 | (2) 2.75", (2) 3" bolts, (4) locknuts | 1" (25 mm) |
| 511*** | (6) 3.5" bolts, (6) locknuts | 1 5/8" (41 mm) |
| 159** | (4) 2" bolts, (4) lock washers, (4) hex nuts | 3/4" (19 mm) |
| 159HD | (4) 2" bolts, (4) locknuts | 3/4" (19 mm) |
| 159HD-L | (4) 2.25" bolts, (4) locknuts | 3/4" (19 mm) to 1" (25 mm) |
How to Select the Right Equipment:
-
Determine the gross trailer weight (GVWR of towed trailers).
-
Determine the tongue weight capacity (maximum occurring tongue weight).
-
Add a margin of safety based on your equipment and environment.
-
Browse the Premier product catalog based on steps 1–3.
