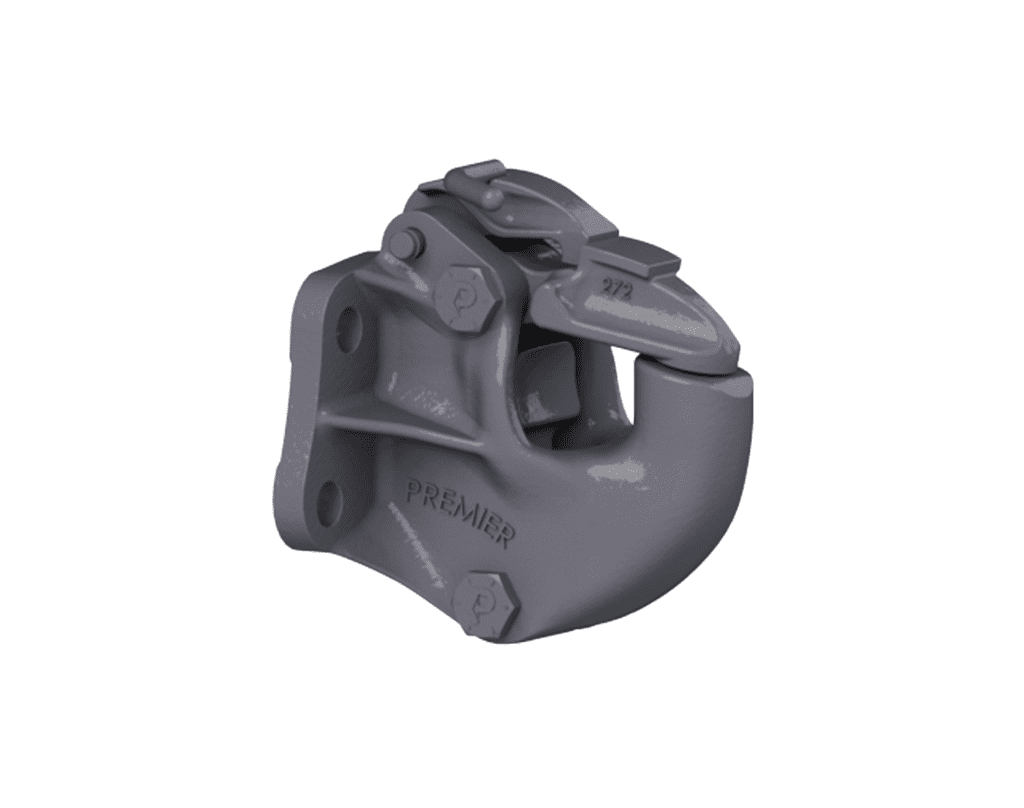

Premier Manufacturing Model 270 Slack Reducing Couplings
270 Couplings
Like The 2200, Our 270 Slack Reducing Coupling Offers The Most Popular Bolt Mounting Pattern In The Industry. This Coupling’s Low Profile, Wear-Resistant Premalloy, And Quick, Easy Latching Are Features That Have Made The 270 Standard With Fleets Around The World. It Must Be Used With An Air Service Chamber. With A 90,000 Lbs. Maximum Gross Trailer Weight And 12,000 Lbs. Latch Capacity, This Coupling Is Perfect For Your Mid-To-Heavy Duty Applications.
- Brand: Premier Manufacturing
- Legacy # 270, 270A, 270-2, 270AF, 270A-267H

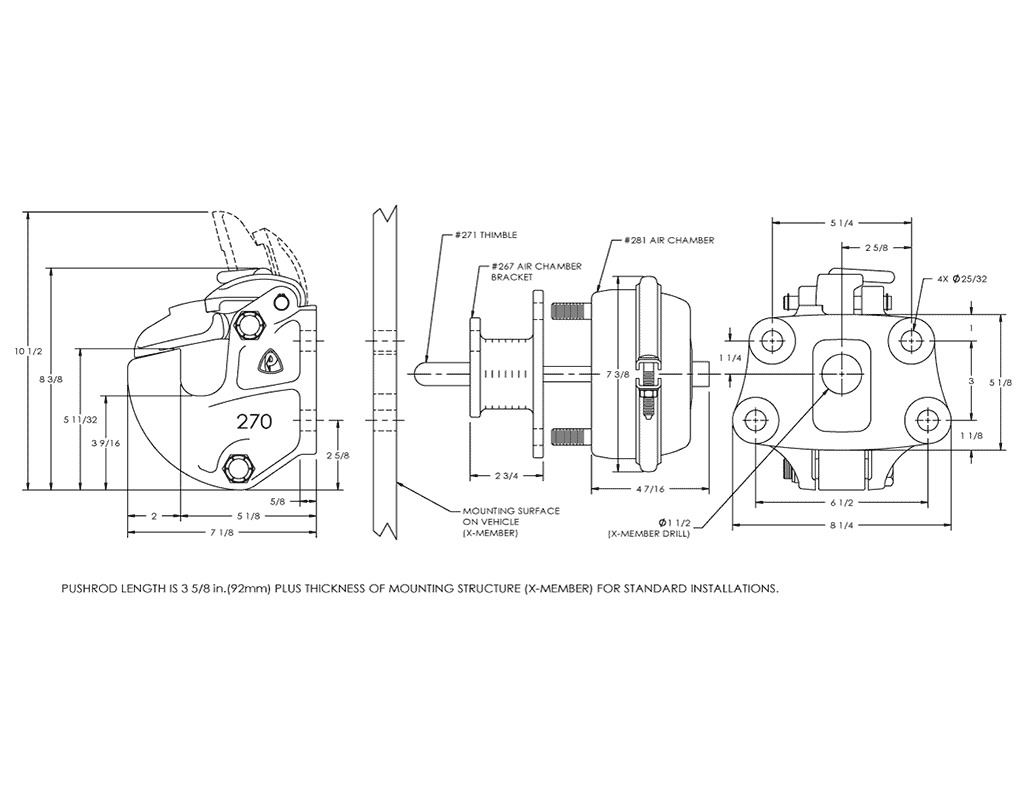

- Dimensions: 8.25 X 7.125 X 10.5, 26.3 LBS.
- Heavy Duty
- Slack Reducing
- Premalloy
Available Models:
| Model # | Part # | Description |
| 270 | 10004733 | 270 Coupling & 271 Thimble |
| 270A | 10004735 | 270 Coupling, 501 Bolt Kit, 281 Air Chamber, 267 Air Chamber Adapter Bracket, 10000107 271 |
| 270A-2 | 10004736 | Same as 270A, without the 501 Bolt Kit |
| 270AF | 10004738 | Same as 270A, with 267F Air Chamber Adapter Bracket instead of 267 |
| 270A-267H | 10004737 | Same as 270A, with 267H Air Chamber Adapter Bracket instead of 267 |
Part # 10004733, 10004735, 10004736, 10004738, 10004737
Accessories & Replacement Parts:
| Model # | Part # | Description |
| 271 | 10000107 | Thimble |
| 501 | 10000149 | Bolt Kit |
| 281 | 10000116 | Air Chamber, Type 24 |
| 282 | 10000122 | Air Chamber, Type 30 |
| 267 | 10000098 | Air Chamber Adapter Bracket (2 3/4 in. overall length) |
| 267F | 10000101 | Air Chamber Adapter Bracket (4 5/8 in. overall length) |
| 267H | 10000102 | Air Chamber Adapter Bracket (3/4 in. overall length) |
| 270PK | 10000292 | Parts Kit |
| 279PK | 10000315 | Parts Kit (for 279 Shoe) |
| 378M | 10004767 | Drawbar Guide Set (Left & Right Sides Incl.) |
| 378ML | 10000126 | Drawbar Guide, Left Side Only |
| 378MR | 10000127 | Drawbar Guide, Right Side Only |
| 14011 | 10000059 | Wear Gage |
| 14026 | 10000071 | Wear Gage, Latch Gage Bar |
About Premiere's Couplings:
Whatever Your Application, Selecting The Proper Equipment For The Job Is Very Important. Proper Selection Along With Regular Inspection And Maintenance Will Help Keep Operating Costs Minimal While Providing Long Life To Each Component. To Determine Wear Limits, Premier Created Wear Gages That Help Judge The Useful Life Of Couplings And Drawbar Eyes. In Accordance With Premier And The Federal Motor Carrier Safety Regulations, These Were Designed To Identify Wear At The Critical Percentages Of 18% And 20%, By Measuring The Cross-section Of Coupling Hooks (Horn) And Drawbar Eye Loops.
Selecting The Right Equipment:
Each Premier Product Undergoes Extensive Design And Testing Prior To Being Introduced. Premier uses The Latest In Computer Aided Design And Analysis Software; As Well As Physical Destructive Tests.
- Determine “Gross Trailer(s) Weight” (GVWR(s) Of Towed Trailers)
- Determine “Tongue Weight Capacity” (Maximum Occurring Tongue Weight)
- Add Margin of Safety (Dependent Upon Your Equipment And Operating Environment)
- Browse Premier Product Catalog (Based on Steps 1 - 3)
*Please Inquire If You Have Any Questions On Any Product! 1 (800) 374-6488, Or Chat With Us!
