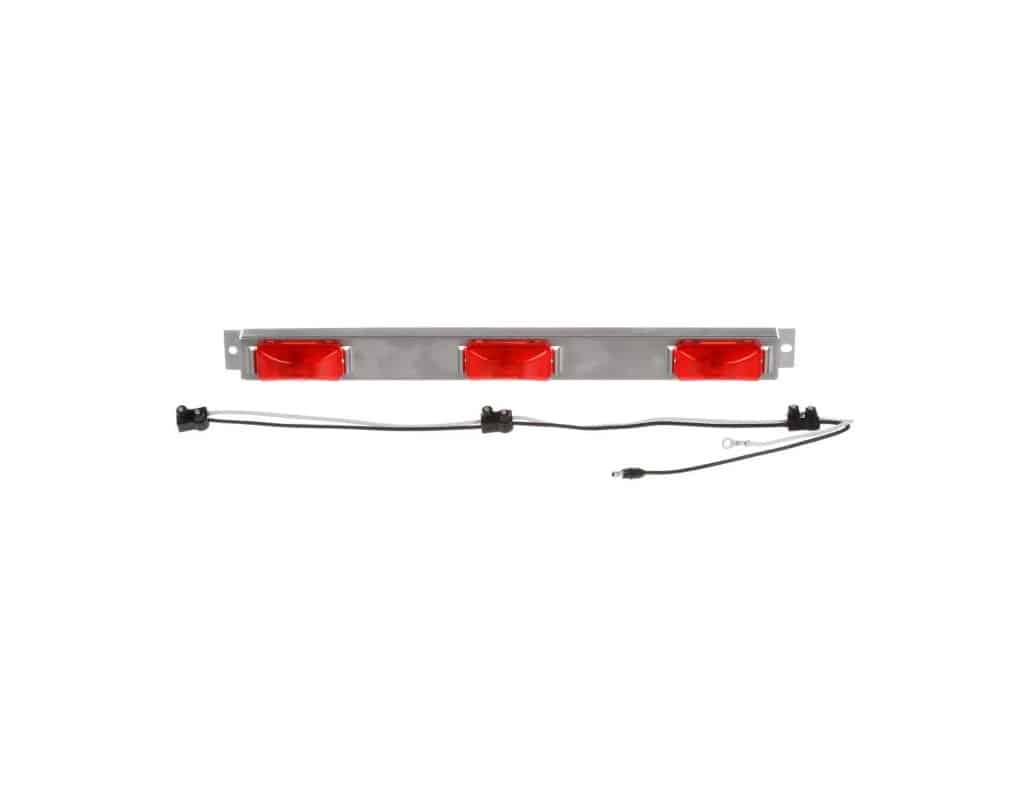

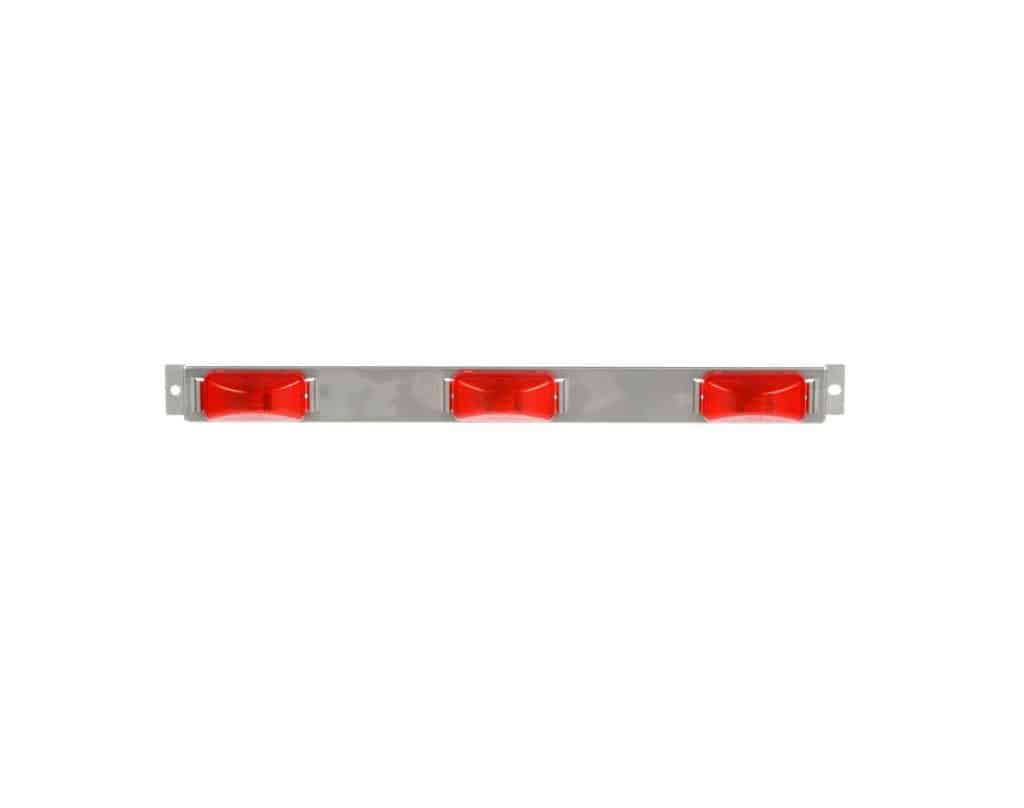

Truck-Lite Incandescent Rectangular Red Light Bar
15741R Truck Light Bar
Semi Truck Light Bar Can Fit Many Universal Truck Makes & Models! The 15741R Truck-Lite Incandescent Rectangular Red Light Bar Has Many Features & Benefits. See “The Specs” For Instance!
Features & Benefits:
- Features Rugged Stainless Steel ID Bar Designed To Fit In Limited Mounting Areas
- Lamps Are Mounted On 6” Centers
- Direct Replacement For Ford
- Fits In Most Narrow Header Rails
- Snap-Lock Tabs Allow Easy Installation
- Upgrade To Truck-Lite Led Lighting Systems Using 15 Series Products
Specs:
- Brand: Truck-Lite
- Category: Identification Bar / Light Bar
- Series: 15 Series
- Warranty: 1-Year
- Compliance Family: FMVSS 108|CMVSS 108|DOT|SAE
- Common Root: 15741R
- Common Size: 1” X 2”
- Housing Material: Polycarbonate
- KIT (Yes/No): Yes
- Lens Shape: Rectangular
- Lighting Technology: Incandescent
- Lamp Connection: PL-10
- Lens Color: Red
- Lens Material: Polycarbonate
- Mount/Trim Color: Silver
- Mount/Trim Material: Stainless Steel
- Mounting Type: 2 Screw Bracket Mount
- Number Of Diodes/Bulbs: 1
- Number Of Lights: 3
- Wires: 2
- Plug Side One (Simplified): PL-10
- Plug Side One: PL-10
- Side Two Plug: .180 Bullet | Ring Terminal
- Sealed/Bulb Replaceable: Sealed
- Standards Met: P2
- UPC: 7.35111E+11
- Voltage (VLT): 12V
- Truck-Lite Products: Truck-Lite Category
- Truck-Lite Website: Truck-Lite

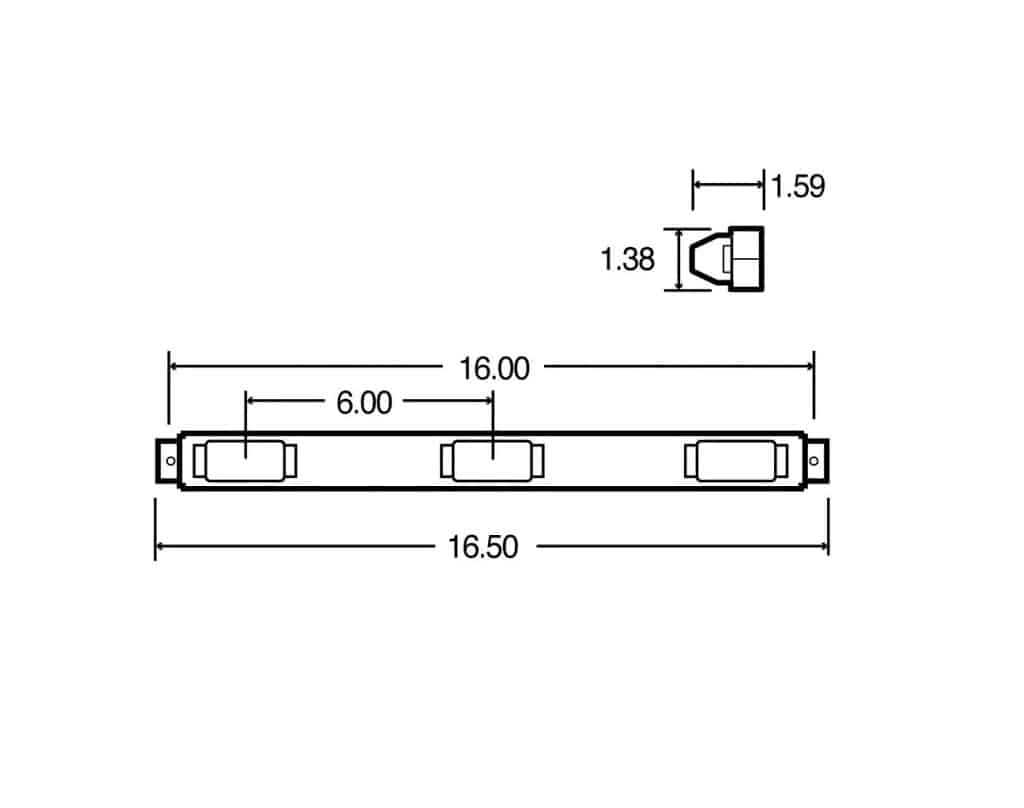

Dimensions:
- Center Distance: 6"
- Lens Height: 1.21"
- Lens Width: 2.49"
- Total Depth: 1.59"
- Total Height: 1.38"
- Length Length: 0.33"
- Width Total: 16.5"
- Weight: 0.7 LBS
TTP Part # TL 15741R
