TTP Full Round Universal Joint | # TTP TDA M280X

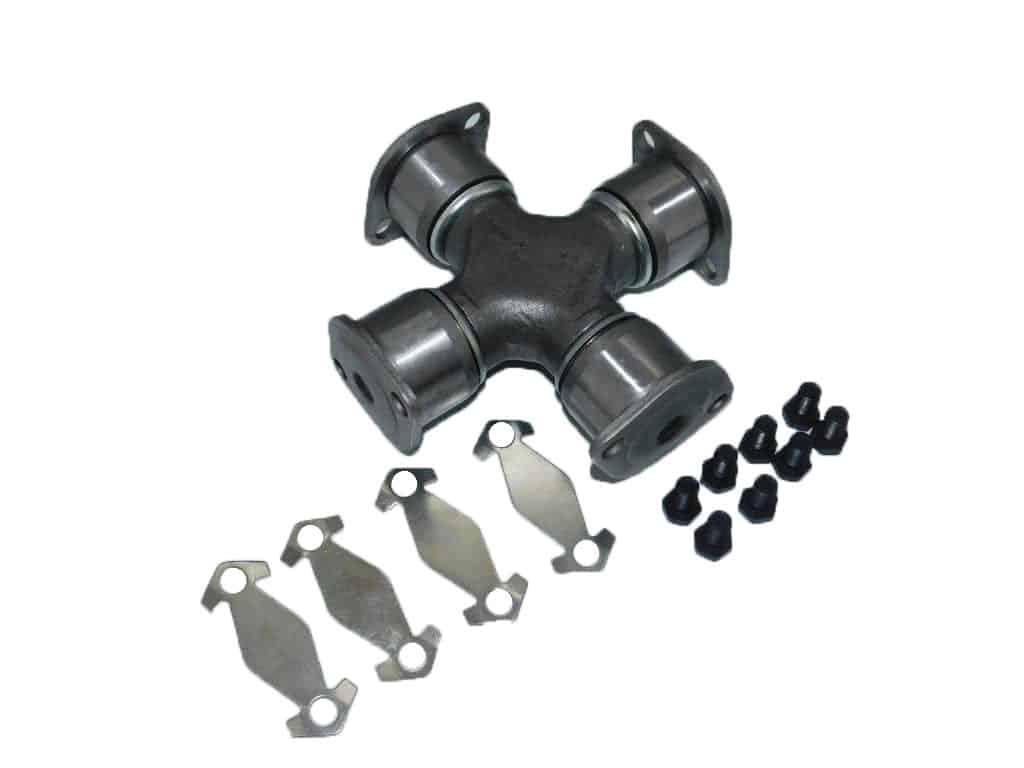

TTP Full Round Universal Joint

M280X, TDA M280X, Truck Driveline, Truck Universal Joint
Used In Automotive And Truck Applications, These Universal Joints Supplied By Us Are Used In Driveline And Drive Shaft Applications To Connect To Other Equipment And Components. Our Universal Joints Have The Following Features:

• Brand: TTP
• Bearing Type: BP
• Popular Applications: Freightliner, International, Etc. (See Applications Tab)
• Replacement: SP 1710 TDA R280X TDA CP280X SP5280X


Specifications:

• Greaseable: Yes
• Bearing Plate Dimension: 6.094”
• Bearing Cap Diameter: 1.938”
• Cross Overall Lengths: 5.784”
• Wing Center Line To Center Line Bearing Bolt Holes: 2.432”
• Manufactured & Tested To OE Specifications
• Steel Internal Seal For Improved Grease Retention Resulting In Longer Life
• Full Round U-Joints Include Flat Straps & Bolts
• SP 5-280X 1710 Series

Dimensions:

• Bearing Plate Dimension: 6.094"
• Bearing Cap Diameter: 1.938"
• Weight: 8.07 LBS

TTP Part # TTP TDA M280X
