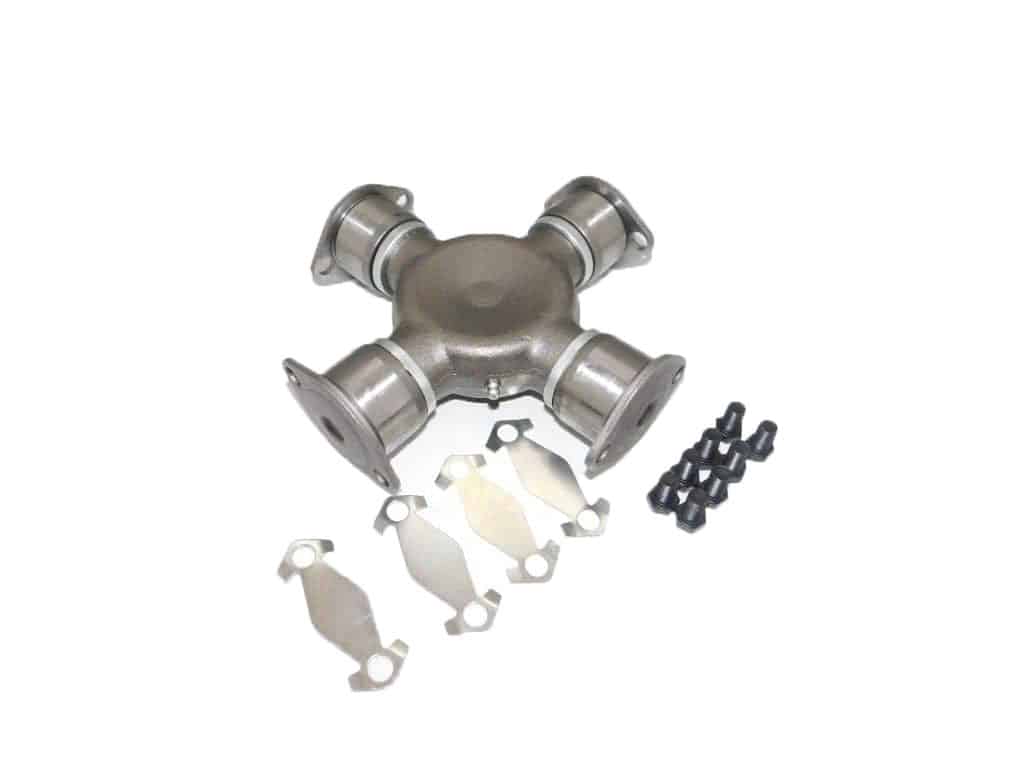

TTP Full Round Universal Joint | # TTP TDA M281X

TTP Full Round Universal Joint

M281X, TDA M281X, Truck Universal Joint, Truck Driveline
Used In Automotive And Truck Applications, These Universal Joints Supplied By Us Are Used In Driveline And Drive Shaft Applications To Connect To Other Equipment And Components. Our Universal Joints Have The Following Features:

• Brand: TTP
• Bearing Type: BP
• Popular Applications: Freightliner, International, Volvo, Etc. (See Applications Tab)
• Replaces: SP 1810 TDA R281X TDA CP281X SP 5-281X
• 1810 Series

Specifications:

• Greaseable: Yes
• Bearing Plate Dimension: 7.547"
• Bearing Cap Diameter: 1.938"
• Cross Trunnion Diameter: 1.363"
• Wing Center Line to Center Line Bearing Bolt Hole: 2.438"
• Manufactured & Tested To OE Specifications
• Steel Internal Seal for Improved Grease Retention Resulting in Longer Life
• Dual Zerk Fittings to Increase Grease Penetration Reducing Heat & Water Per Application
• Full Round U-Joints Include Flat Straps & Bolts

Dimensions:

• Bearing Plate Dimension: 7.547"
• Bearing Cap Diameter: 1.938"
• Weight: 9.2 LBS

Part # TTP TDA M281X
TTP Part # TTPTDAM281X
