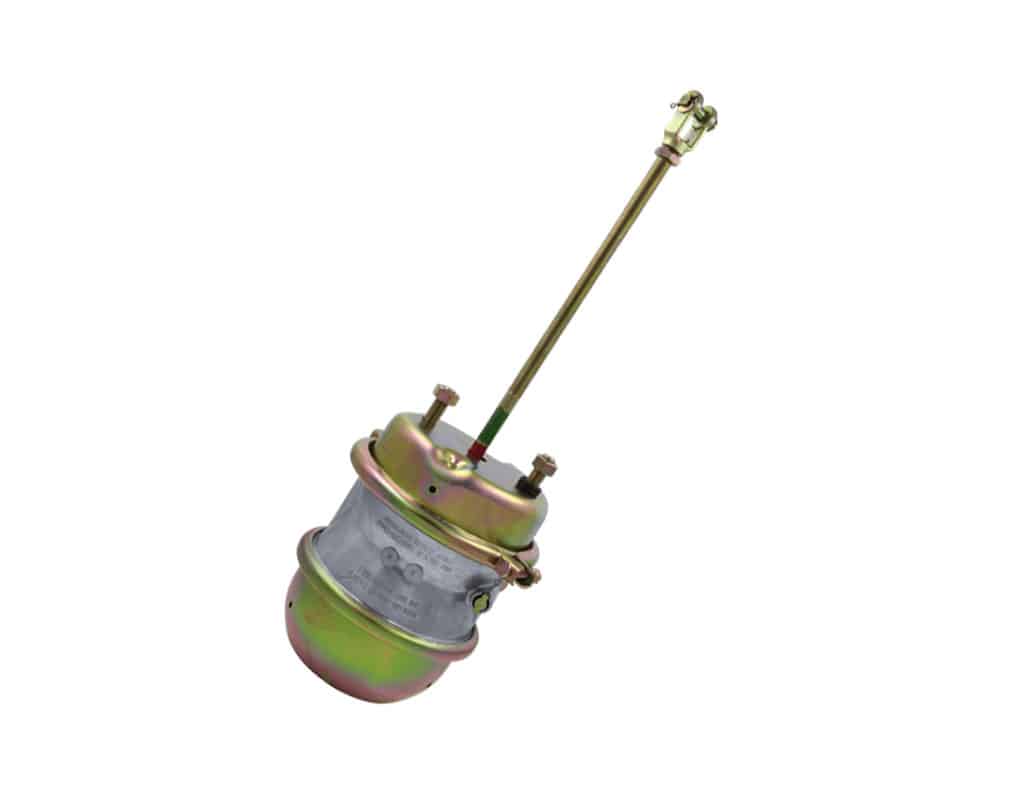

TTP Type 30 Spring Brake Chamber, Longstroke | # TTP 3030TSLS

TTP Type 30 Spring Brake Chamber, Longstroke

TTP 3030TSLS, S-17204 Longstroke Spring Brake Chamber

• Brand: Tracey Truck Parts

Specifications:

• Rod Length: 15”
• Spring Brake, Tandem, Type 30
• Includes: Hardware & Clevis S-9137
• Positive Alignment Steel Power Spring Retainer
• Reinforced 11 Gauge Steel Non-Pressure Housing
• High Strength Steel Clamp Bands & Plated Steel Housings
• Lightweight Aluminum Adapter Housing
• Epoxy Coated Power Spring & Double O-Ring Center Seal
• Universal Push Rod With Stroke Indicator
• Popular Applications: Freightliner (See Applications Tab)
• Truck Spring Brake, Truck Long Stroke Springbrake

Features & Benefits:

• All Spring Brakes Will Contain Black E-Coated Steel Housings Instead Of Zinc Di-Chromate Plated Housings.
• The Anti-Corrosion Features Of E-Coating Vs Zinc Di-Chromate Are The Same, But Will Protect The Environment From Carcinogens.
• All Spring Brakes Will Have The “Wide Style” Of Clamp Bands On Them To Help Make Diaphragm Replacement Easier.

Part # TTP3030TSLS
Newstar # S-17204
*Please Inquire If You Have Any Questions On Any Product! 1 (800) 374-6488, Or Chat With Us!
