Description
TTP 22' Air Brake Hose | # S-28228
Part #: TTP 16322
Alternate #: S-28228

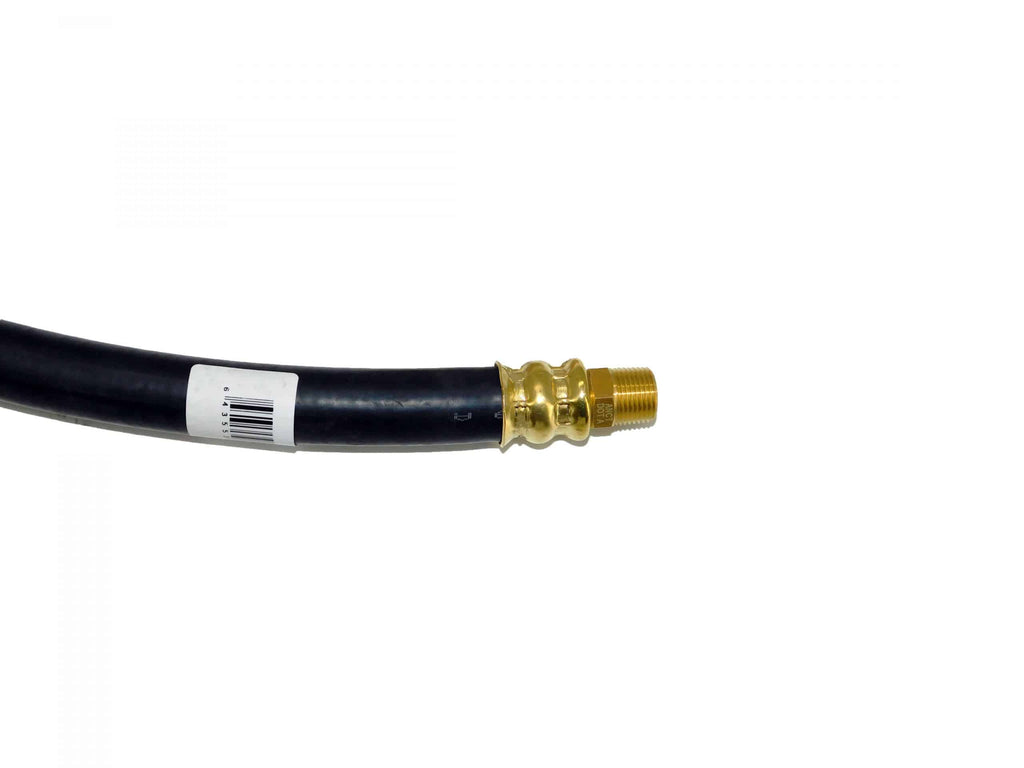

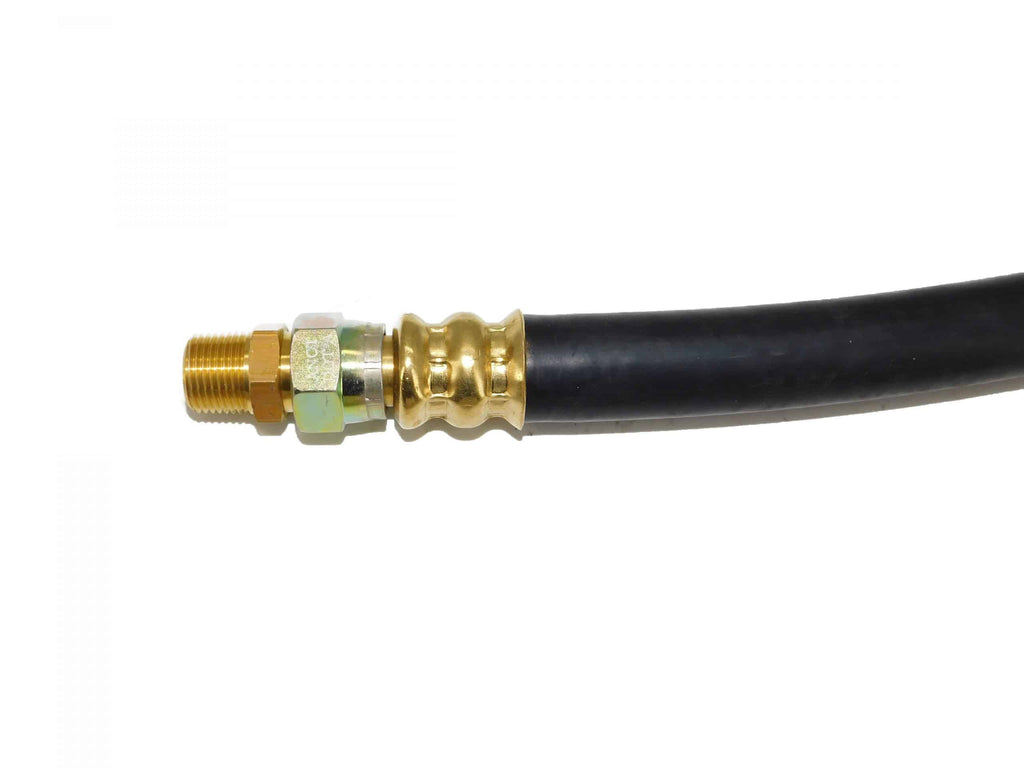

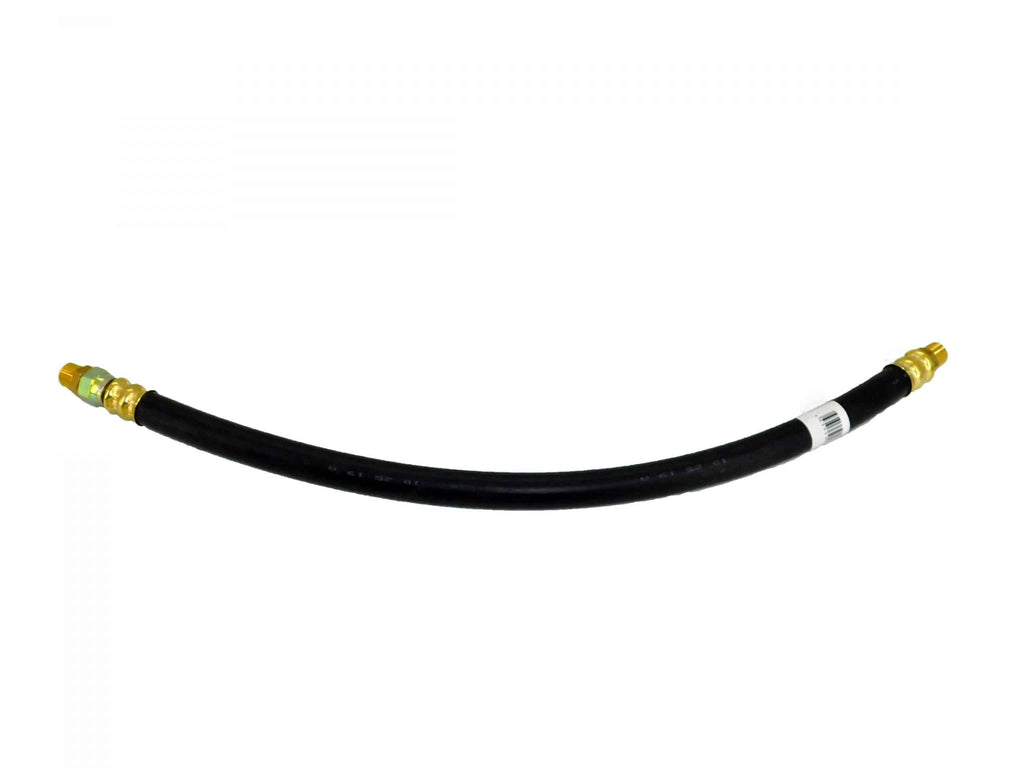

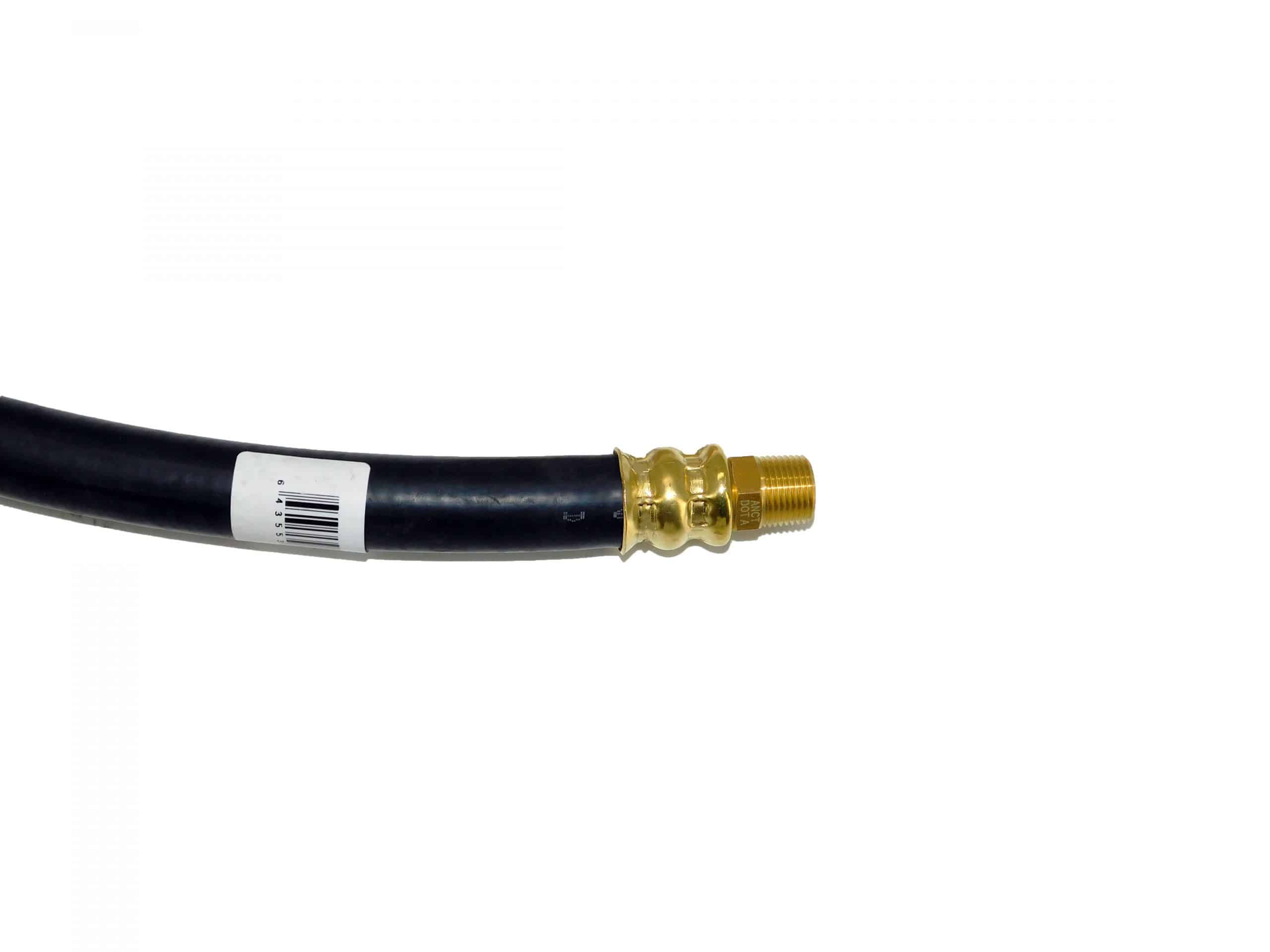

This 22-foot air brake hose is built for performance in demanding commercial vehicle applications. Featuring a 1/2" inner diameter, permanently swaged fittings, and full DOT compliance, it’s designed to keep you running safely and efficiently.
Specifications:
-
Length: 22'
-
Hose ID: 1/2"
-
Fittings: 3/8" NPT (1 Fixed / 1 Swivel)
-
Temperature Range: -40°F to 200°F
-
Working Pressure: 225 PSI
-
Minimum Burst Pressure: 900 PSI
-
DOT FMVSS106 / SAE J1402 Compliant
-
Thread sealant pre-applied on male threads
-
Permanently swaged fittings for durability
Cross References:
Replaces 16322, 288135, E-8582-22BK, 12-38122, TEW18122, ZZ16322, 18122TEC, 18122
